JDXFD2T Series

Catalog

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Shielding	Contact Material	Insert Material	Mounting Type	Color	Primary Material	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)	Orientation	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Material	Connector Type	Current Rating Options	Contact Finish - Mating	Termination	Fastening Type	Applications	Voltage Rating	Shell Finish	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)
Amphenol Aerospace Operations JDXFD2T001MSN	Shielded	Brass	PEEK Polyetheretherketone	Free Hanging (In-Line)	Black	Metal	6	2	8	T	IP68	Dust Tight Waterproof	125 °C	-40 °C	19.7 µin	2-001	Brass	Male Pins Plug	30A 7A	Gold	Solder Cup	Push-Pull	Industrial Instrumentation Medical Military	700 VDC	Black Chrome Nickel

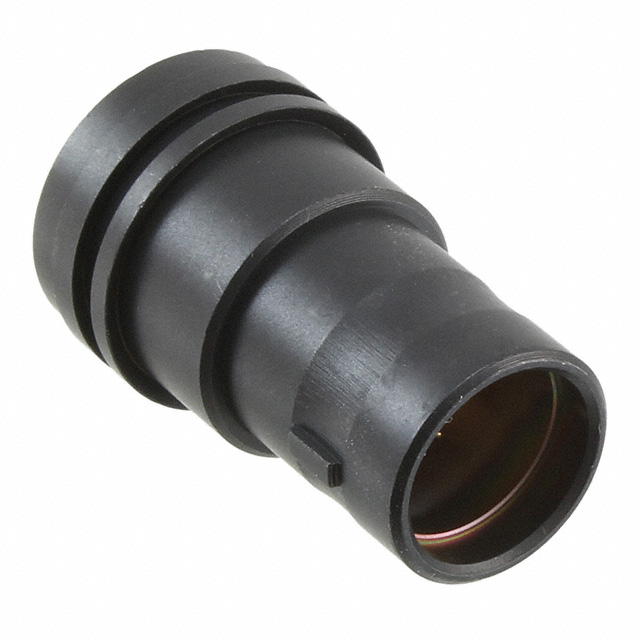

Amphenol Aerospace Operations JDXFD2T002MSN	Shielded	Brass	PEEK Polyetheretherketone	Free Hanging (In-Line)	Black	Metal	8	2	10	T	IP68	Dust Tight Waterproof	125 °C	-40 °C	19.7 µin	2-002	Brass	Male Pins Plug	17A 7A	Gold	Solder Cup	Push-Pull	Industrial Instrumentation Medical Military	700 VDC	Black Chrome Nickel
Amphenol Aerospace Operations JDXFD2T003MSN	Shielded	Brass	PEEK Polyetheretherketone	Free Hanging (In-Line)	Black	Metal	6	3	9	T	IP68	Dust Tight Waterproof	125 °C	-40 °C	19.7 µin		Brass	Male Pins Plug	15A 7A	Gold	Solder Cup	Push-Pull	Industrial Instrumentation Medical Military	700 VDC	Black Chrome Nickel	2	3
