282856 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN EUROSTYLE BLOCK M 18 POS 5MM SOLDER ST THRU-HOLE 24A/CONTACT CARTON

Part	Current	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Positions Per Level	Features	Number of Levels	Pitch	Mounting Type	Mating Orientation	Voltage	Color	Wire Termination	Screw Material	Screw Plating	Clamp Material	Clamp Plating	Housing Material	Screw Thread	Contact Material	Plating	Torque - Screw

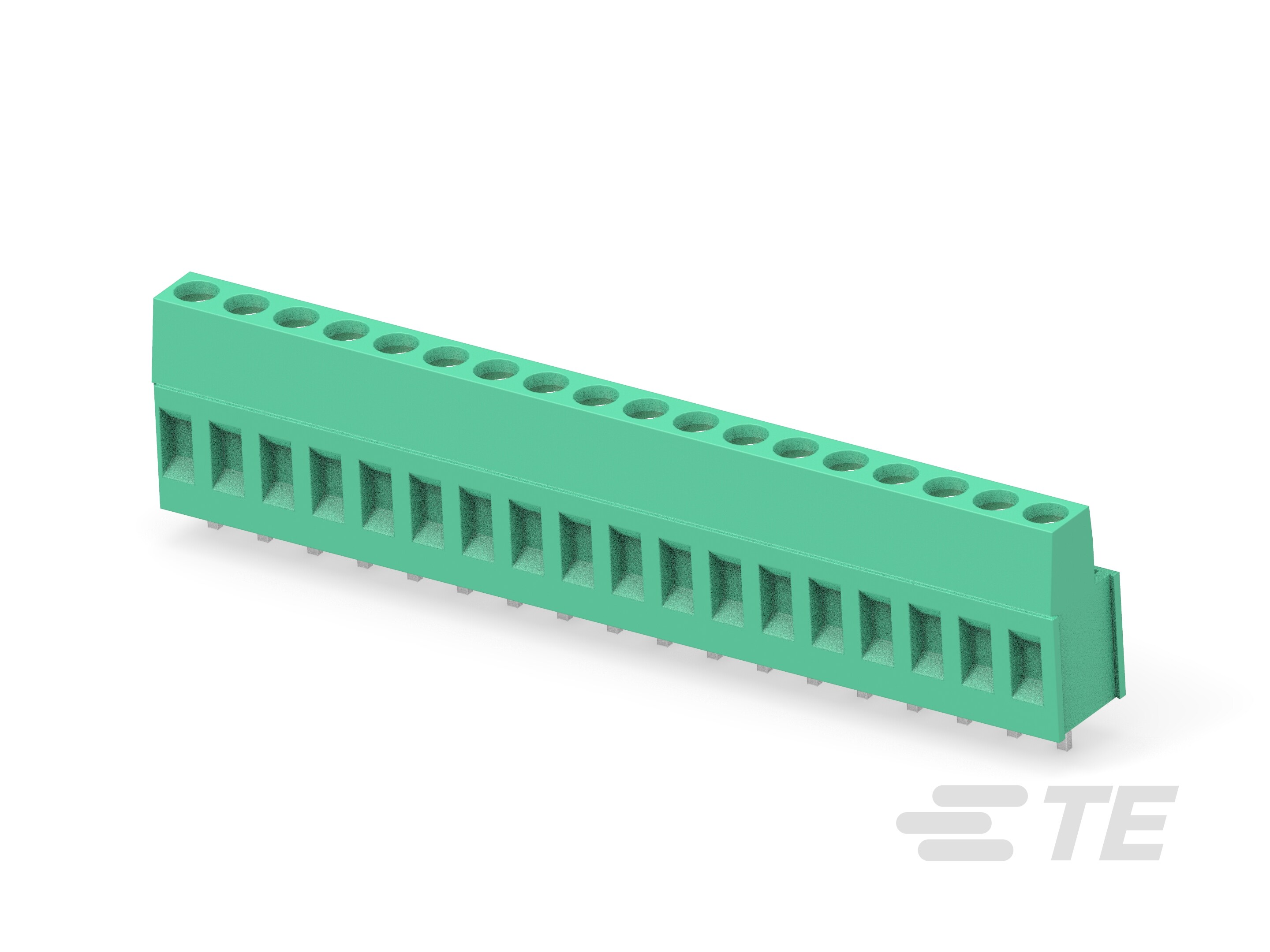

TE Connectivity AMP Connectors 1-282856-8	24 A	12 AWG	30 AWG	18	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm
TE Connectivity AMP Connectors 2-282856-2	24 A	12 AWG	30 AWG	22	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm

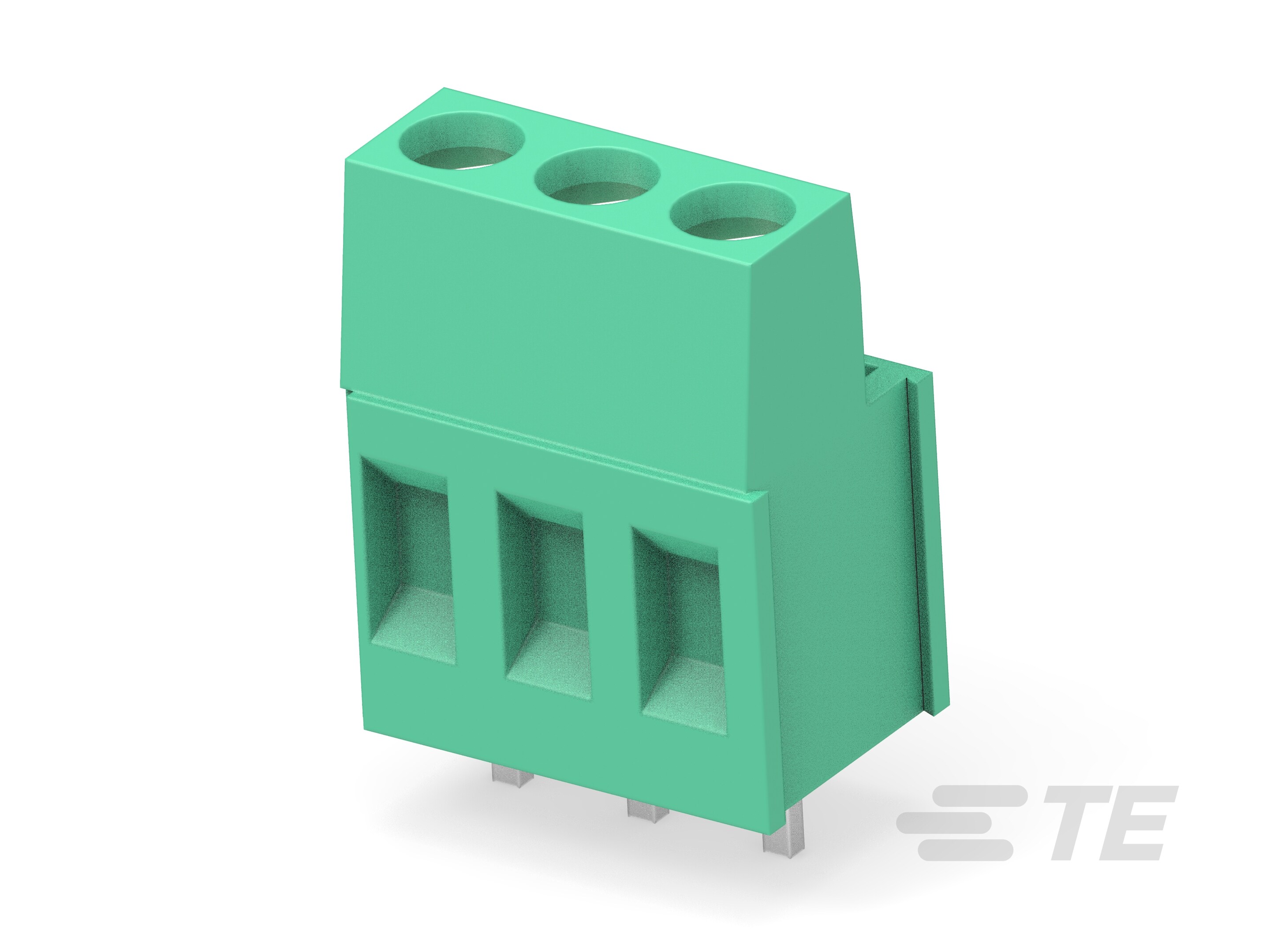

TE Connectivity AMP Connectors 282856-3	24 A	12 AWG	30 AWG	3	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm
TE Connectivity AMP Connectors 1-282856-7	24 A	12 AWG	30 AWG	17	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm
TE Connectivity AMP Connectors 282856-8	24 A	12 AWG	30 AWG	8	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm
TE Connectivity AMP Connectors 2-282856-4	24 A	12 AWG	30 AWG	24	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm

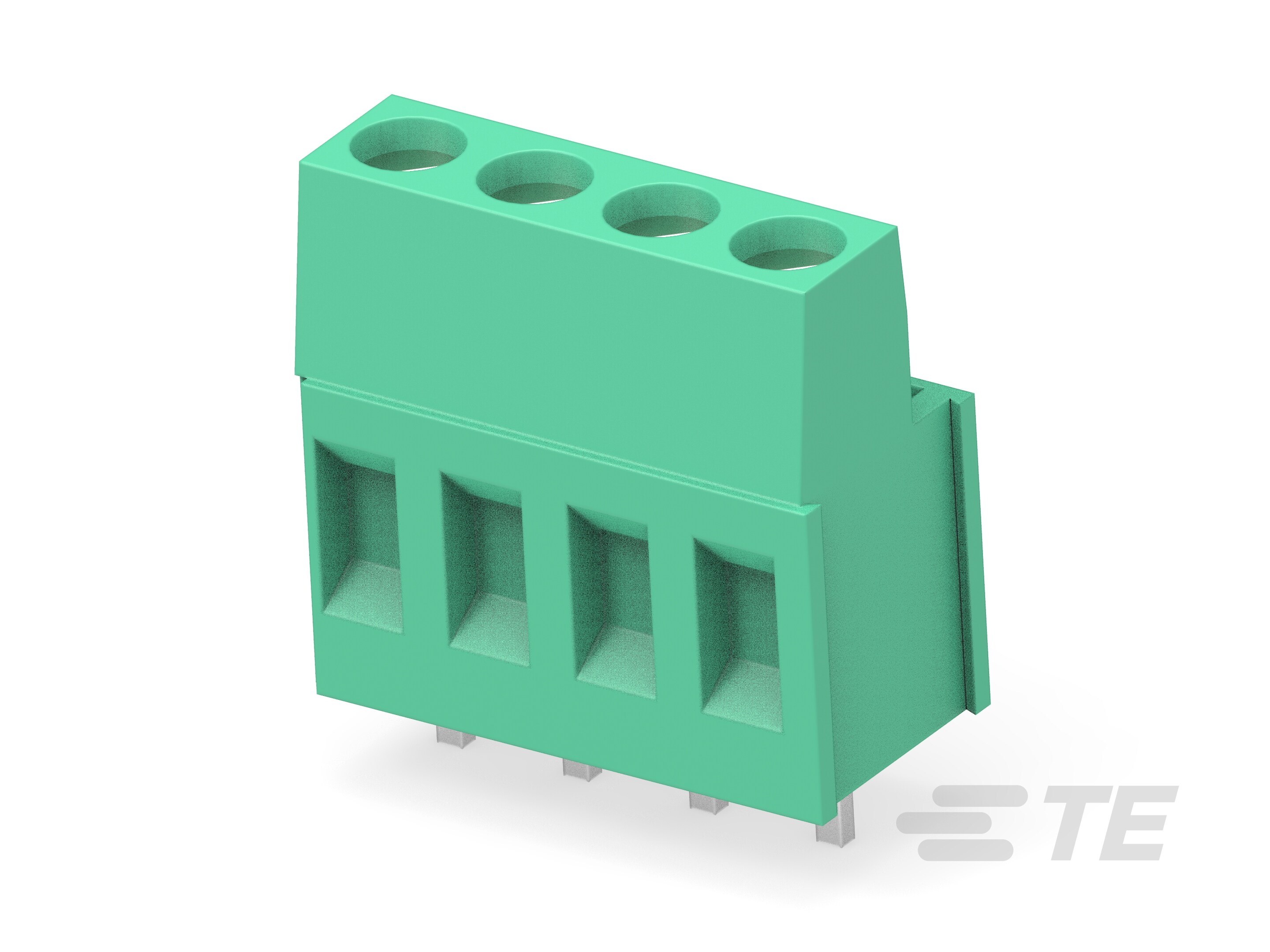

TE Connectivity AMP Connectors 282856-4	24 A	12 AWG	30 AWG	4	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm
TE Connectivity AMP Connectors 1-282856-3	24 A	12 AWG	30 AWG	13	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm
TE Connectivity AMP Connectors 1-282856-1	24 A	12 AWG	30 AWG	11	Interlocking (Side)	1	0.197 in	Through Hole	Horizontal with Board	300 V	Green	Rising Cage Clamp Screw	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	Brass	Tin Plated	0.79 Nm
