MAX20030 Series

Catalog

DUAL BUCK, SYNC BOOST AND LDO–COMPLETE FRONT-END POWER SUPPLY WITH 17ΜA IQ

Part	Voltage - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output 2	Package Name	Package Length	Package Width	w/Supervisor	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	w/LED Driver	Voltage/Current - Output 3 Options	Number of Outputs	Mounting Type	w/Sequencer	Topology	Frequency - Switching (Max)	Frequency - Switching (Min)
Analog Devices Inc./Maxim Integrated MAX20030BATMI/V+T
Analog Devices Inc./Maxim Integrated MAX20030BATMA/V+T
Analog Devices Inc./Maxim Integrated MAX20030BATMC/V+
Analog Devices Inc./Maxim Integrated MAX20030ATMC/V+TW
Analog Devices Inc./Maxim Integrated MAX20030ATME/V+T
Analog Devices Inc./Maxim Integrated MAX20030BATMB/V+T

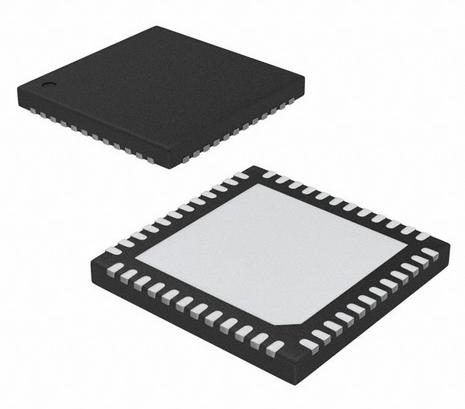

Analog Devices Inc./Maxim Integrated MAX20030CATMA/V+	5 V	125 °C	-40 °C	3.3 V	48-SWTQFN	7 mm	7 mm	No	42 V	3.5 V	48-WFQFN Exposed Pad	No	Controller	4	Surface Mount Wettable Flank	No	Linear (LDO) (1) Step-Down (Buck) Synchronous (2) Step-Up (Boost) (1)	2.2 MHz	220 kHz
Analog Devices Inc./Maxim Integrated MAX20030ATMF/V+T
Analog Devices Inc./Maxim Integrated MAX20030BATMC/V+T
Analog Devices Inc./Maxim Integrated MAX20030BATMI/V+
