044067 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 6POS 3MM

Part	Contact Length - Post	Style	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Row Spacing - Mating	Termination	Contact Shape	Insulation Height	Insulation Color	Contact Material	Shrouding	Pitch - Mating	Number of Rows	Fastening Type	Connector Type	Number of Positions	Mounting Type	Contact Finish - Mating	Insulation Material	Contact Type	Features	Material Flammability Rating	Applications	Mated Stacking Height	Contact Finish Thickness - Post
Molex 0440670601	0.158 in	Board Cable/Wire	Tin	All	100 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	6	Through Hole	Tin	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm

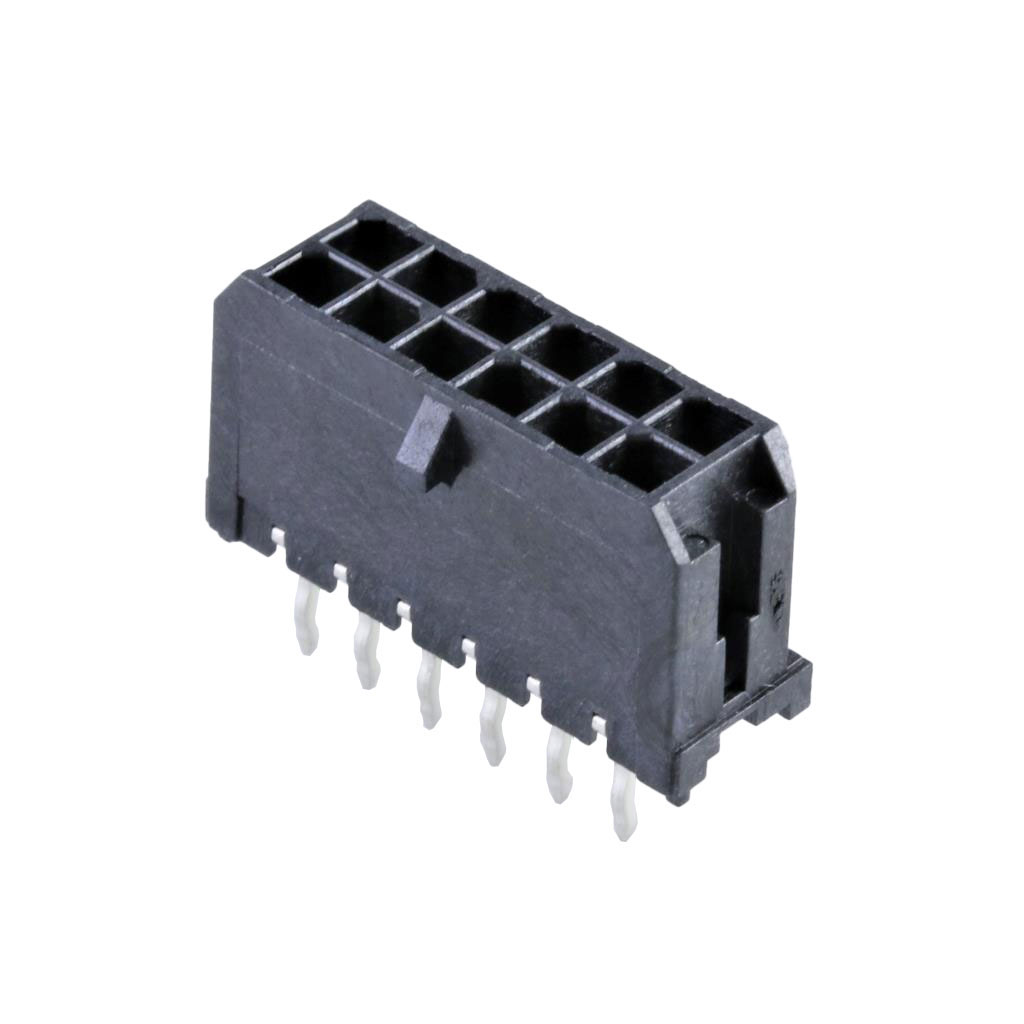

Molex 0440671203	0.158 in	Board Cable/Wire	Tin	All	30 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	12	Through Hole	Gold	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm	100 Ąin
Molex 0440672401	0.158 in	Board Cable/Wire	Tin	All	100 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	24 pos	Through Hole	Tin	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm
Molex 0440671401	0.158 in	Board Cable/Wire	Tin	All	100 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	14	Through Hole	Tin	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm

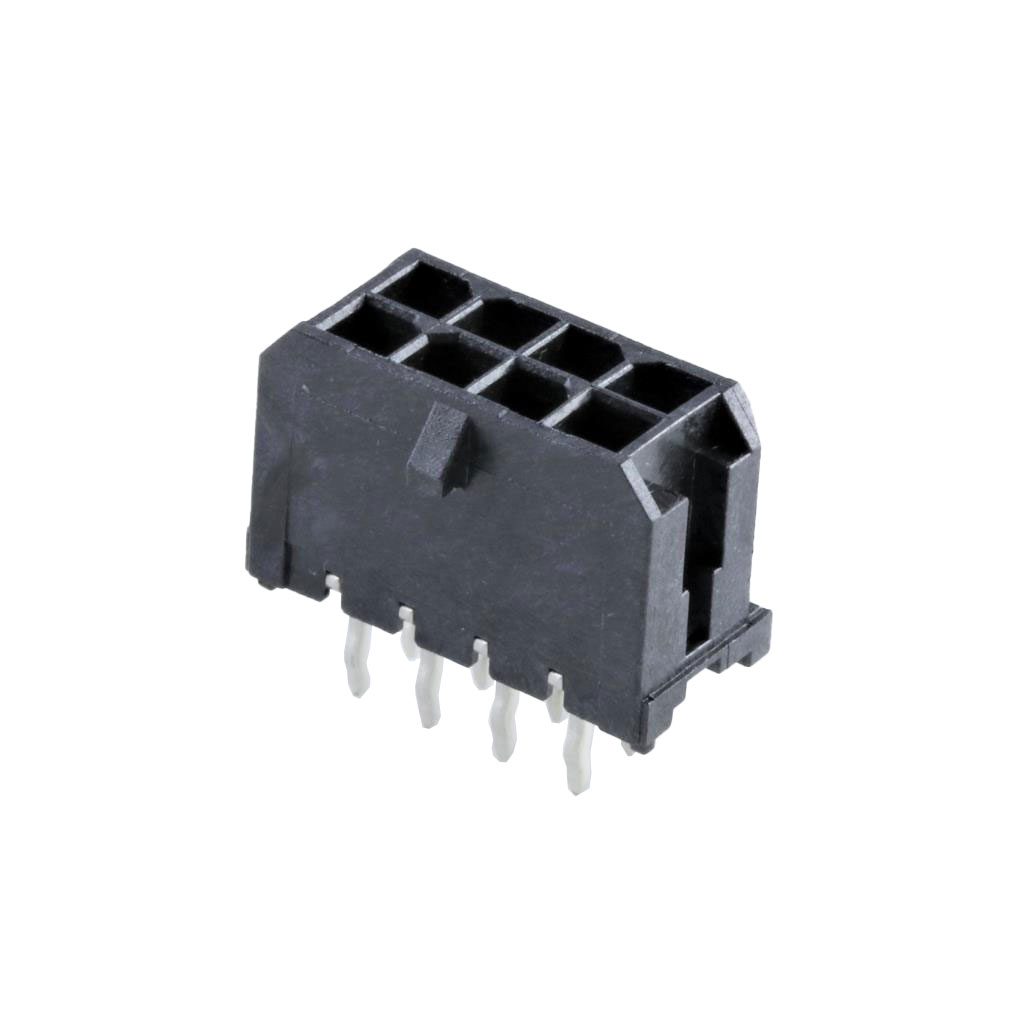

Molex 0440670802	0.158 in	Board Cable/Wire	Tin	All	15 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	8	Through Hole	Gold	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm	100 Ąin
Molex 0440672001	0.158 in	Board Cable/Wire	Tin	All	100 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	20	Through Hole	Tin	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm
Molex 0440671201	0.158 in	Board Cable/Wire	Tin	All	100 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	12	Through Hole	Tin	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm
Molex 0440670602	0.158 in	Board Cable/Wire	Tin	All	15 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	6	Through Hole	Gold	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm	100 Ąin
Molex 0440672403	0.158 in	Board Cable/Wire	Tin	All	30 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	24 pos	Through Hole	Gold	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm	100 Ąin
Molex 0440671403	0.158 in	Board Cable/Wire	Tin	All	30 µin	0.118 in	Kinked Pin Solder	Square	0.39 in	Black	Brass	Shrouded - 4 Wall	0.118 in	2	Locking Ramp	Header	14	Through Hole	Gold	Glass Filled Liquid Crystal Polymer (LCP)	Male Pin	Board Guide	UL94 V-0	General Purpose Medical Military Telecommunications	17.27 mm	100 Ąin
