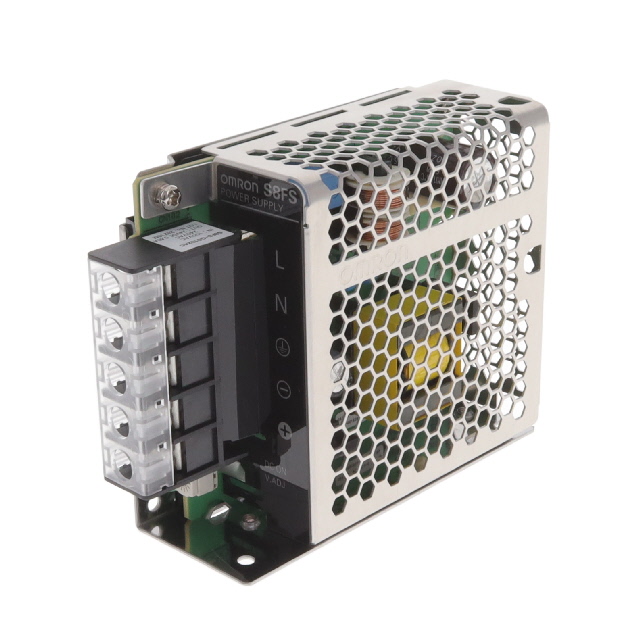

S8FS-G015 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
AC/DC CONVERTER 24V 15W
| Part | Features | Operating Temperature (Max) | Operating Temperature (Min) | Current - Output 1 | Voltage - Isolation | Power (Watts) | Approval Agency | Applications | Mounting Type | Voltage - Output 1 | Efficiency | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Type | Number of Outputs | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Current - Output (Max) | Input Type | AC Voltage - Input (Max) | AC Voltage - Input (Min) | Voltage - Input (DC) Minimum | Voltage - Input (DC) Maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Adjustable Output DC Input Capable Universal Input | 70 °C | -20 °C | 650 mA | 3 kV | 15 W | CE cURus TUV UL | ITE (Commercial) | Chassis Mount | 24 V | 86 % | 1.38 in | 3.23 in | 3.9 in | Enclosed | 1 | 85 VAC | 264 V | ||||||
 Omron Automation and Safety | Adjustable Output Universal Input | 70 °C | -20 °C | 3 kV | 15 W | CE cURus TUV UL | ITE (Commercial) | 5 V | 80 % | 3.23 in | 1.43 in | 3.9 in | 1 | 3 A | AC | 264 VAC | 85 VAC | |||||||
 Omron Automation and Safety | Adjustable Output Universal Input | 70 °C | -20 °C | 1 A | 3 kV | 15 W | CE cURus TUV UL | Industrial ITE (Commercial) | Chassis Mount | 15 V | 84 % | 1.38 in | 3.23 in | 3.9 in | Enclosed | 1 | 85 VAC | 264 V | 120 V | 370 V | ||||
 Omron Automation and Safety | Adjustable Output DC Input Capable Universal Input | 70 °C | -20 °C | 1.3 A | 3 kV | 15 W | CE cURus TUV UL | ITE (Commercial) | Chassis Mount | 12 V | 84 % | 1.38 in | 3.23 in | 3.9 in | Enclosed | 1 | 85 VAC | 264 V | ||||||
 Omron Automation and Safety | Adjustable Output Universal Input | 70 °C | -20 °C | 3 kV | 15 W | CE cURus TUV UL | ITE (Commercial) | 24 V | 86 % | 3.23 in | 1.43 in | 3.9 in | 1 | 650 mA | AC | 264 VAC | 85 VAC |
