MKDSP Series

Catalog

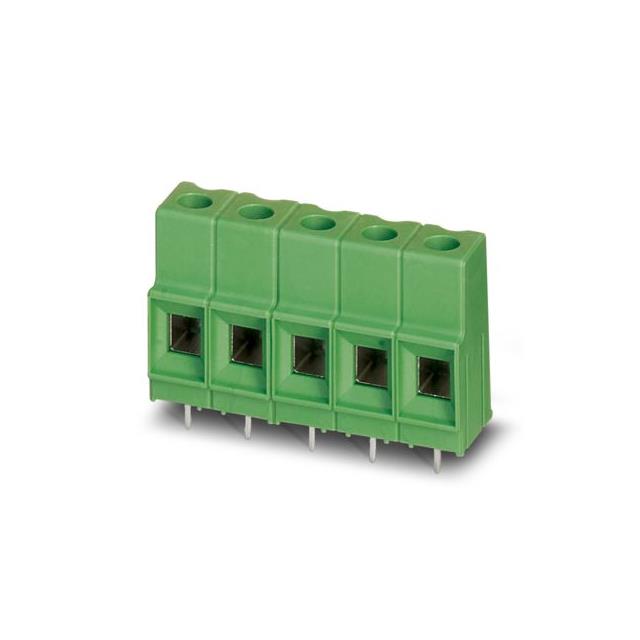

FIXED TERMINAL BLOCKS MKDSP 25/5-15.00 5 POS 15.00MM

Part	Screw Thread	Torque - Screw (Minimum)	Torque - Screw (Maximum)	Housing Material	Voltage	Mating Orientation	Mounting Type	Pitch	Positions Per Level	Number of Levels	Color	Current	Wire Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Contact Material - Plating

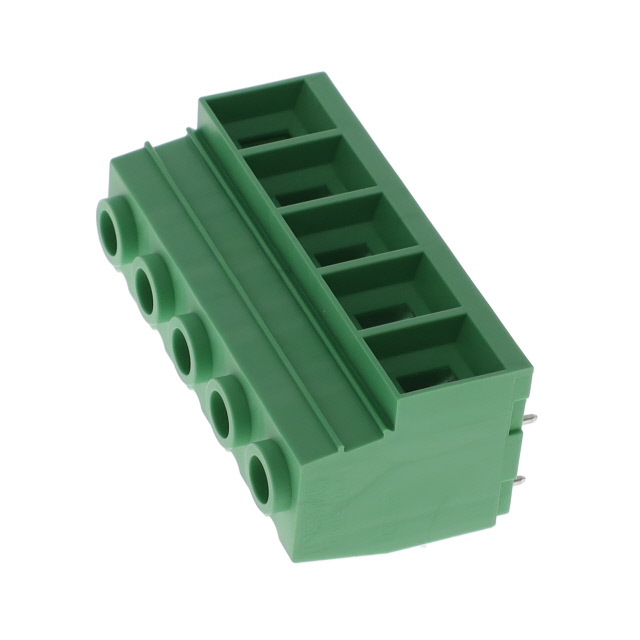

Phoenix Contact 1932614	M5	2.5 Nm	4.5 Nm	Nylon PA Polyamide	600 V	Horizontal with Board	Through Hole	0.591 in	5	1	Green	115 A	Rising Cage Clamp Screw	20.5 AWG	2 AWG

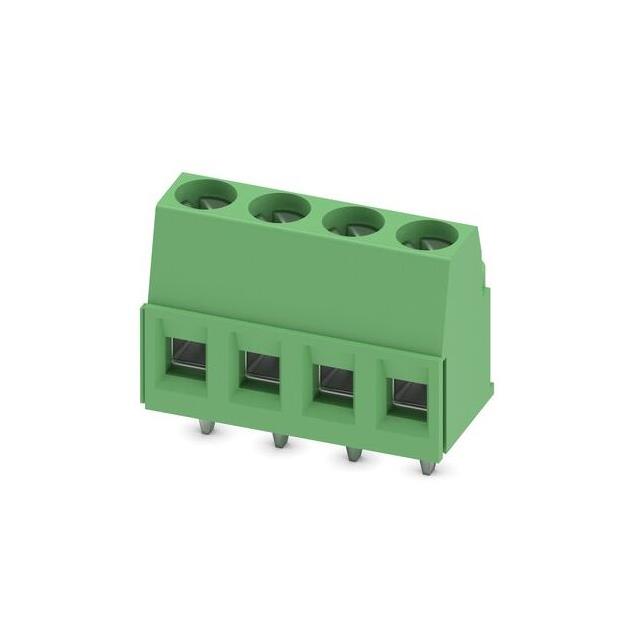

Phoenix Contact 1730036	M3	0.5 Nm	0.6 Nm	Nylon PA Polyamide	300 V	Horizontal with Board	Through Hole	0.197 in	4	1	Green	10 A	Rising Cage Clamp Screw	30 AWG	14 AWG	Interlocking (Side)

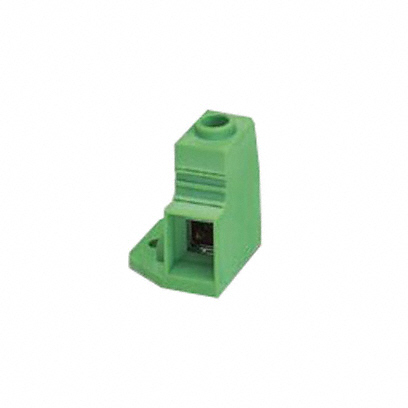

Phoenix Contact 1932575	M5	2.5 Nm	4.5 Nm	Nylon PA Polyamide	600 V	Horizontal with Board	Through Hole		1	1	Green	115 A	Rising Cage Clamp Screw	20.5 AWG	2 AWG	Flange (Mounting)

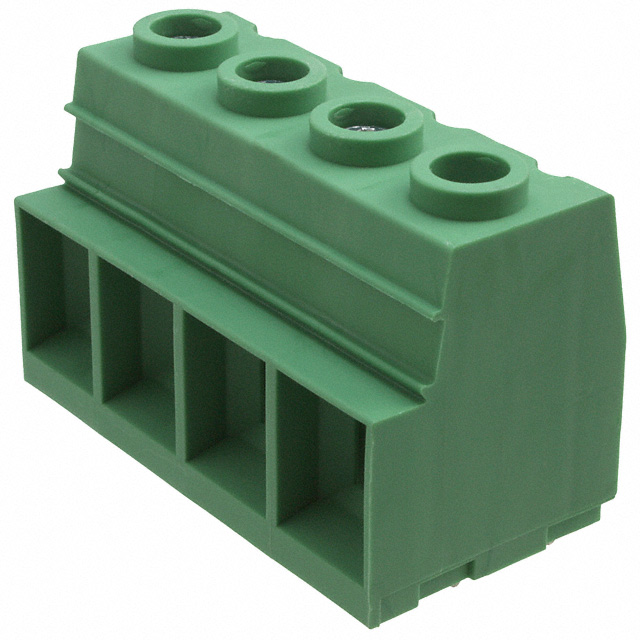

Phoenix Contact 1932601	M5	2.5 Nm	4.5 Nm	Nylon PA Polyamide	600 V	Horizontal with Board	Through Hole	0.591 in	4	1	Green	115 A	Rising Cage Clamp Screw	20.5 AWG	2 AWG
Phoenix Contact 1932630					600 V	Horizontal with Board	Through Hole	0.591 in	7	1	Green	115 A	Rising Cage Clamp Screw	20.5 AWG	2 AWG

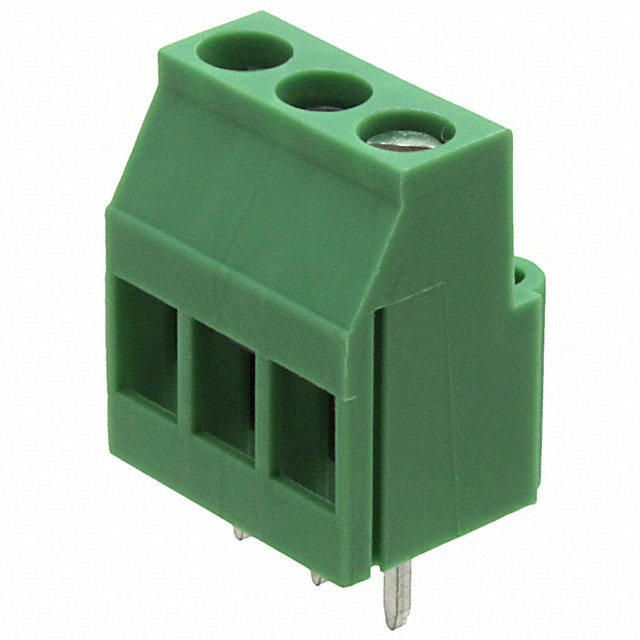

Phoenix Contact 1774140	M4	1.2 Nm	1.5 Nm		600 V	Horizontal with Board	Through Hole	0.4 in	3	1	Green	5 A	Rising Cage Clamp Screw	20.5 AWG	6 AWG	Interlocking (Side)	Tin Plated
Phoenix Contact 1774027	M4	1.2 Nm	1.5 Nm	Nylon PA Polyamide	600 V	Horizontal with Board	Through Hole	0.4 in	2	1	Black	60 A	Rising Cage Clamp Screw	20.5 AWG	6 AWG	Interlocking (Side)

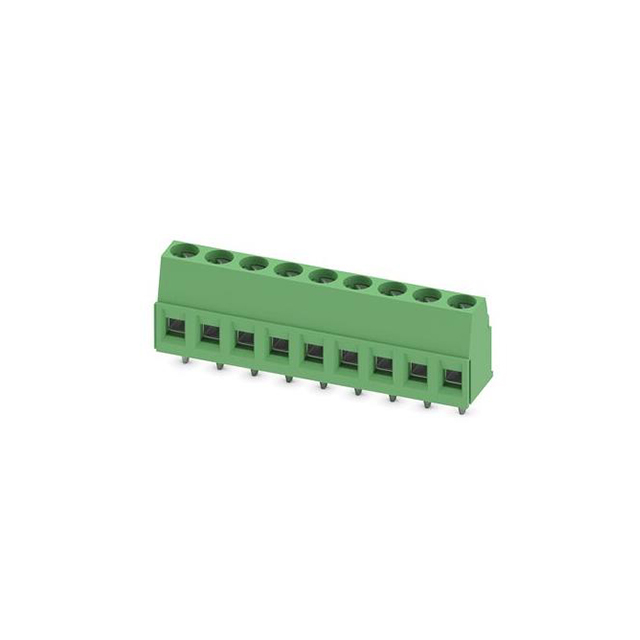

Phoenix Contact 1730081	M3	0.5 Nm	0.6 Nm	Nylon PA Polyamide	300 V	Horizontal with Board	Through Hole	0.197 in	9	1	Green	10 A	Rising Cage Clamp Screw	30 AWG	14 AWG	Interlocking (Side)

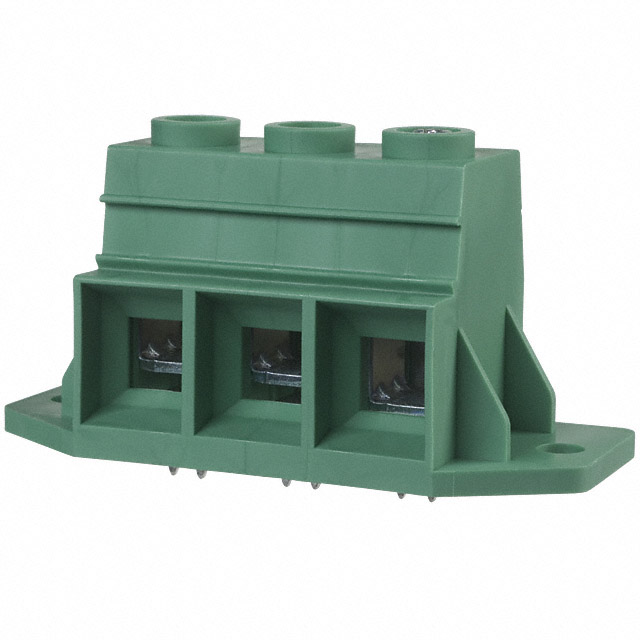

Phoenix Contact 1932504	M5	2.5 Nm	4.5 Nm	Nylon PA Polyamide	600 V	Horizontal with Board	Through Hole	0.591 in	3	1	Green	115 A	Rising Cage Clamp Screw	20.5 AWG	2 AWG	Flange (Mounting)
