XCVM1502 Series

Catalog

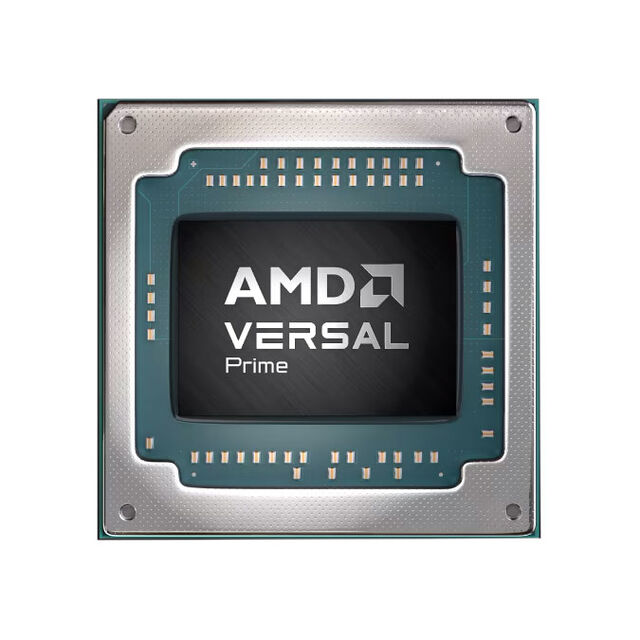

IC VERSALPRIME ACAP FPGA 1369BGA

Part	Core Processor	Speed	Peripherals	RAM Size	Primary Attributes	Package / Case	Connectivity	Package Length	Package Name	Package Width	Architecture	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O
AMD / Xilinx XCVM1502-2MSENFVB1369	Dual ARM® Cortex®-A72 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5F with CoreSight™	1.4 GHz 600 MHz	DDR DMA PCIe	256 KB	1M Logic Cells Versal™ Prime FPGA	1369-BFBGA FCBGA	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	35 mm	1369-FCBGA	35 mm	FPGA MPU	110 °C	0 °C
AMD / Xilinx XCVM1502-1MLINFVB1369	Dual ARM® Cortex®-A72 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5F with CoreSight™	1.3 GHz 600 MHz	DDR DMA PCIe	256 KB	1M Logic Cells Versal™ Prime FPGA	1369-BFBGA FCBGA	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	35 mm	1369-FCBGA	35 mm	FPGA MPU	110 °C	-40 °C
AMD / Xilinx XCVM1502-1MSENFVB1369	Dual ARM® Cortex®-A72 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5F with CoreSight™	1.3 GHz 600 MHz	DDR DMA PCIe	256 KB	1M Logic Cells Versal™ Prime FPGA	1369-BFBGA FCBGA	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	35 mm	1369-FCBGA	35 mm	FPGA MPU	100 °C	0 °C
AMD / Xilinx XCVM1502-1MSINFVB1369	Dual ARM® Cortex®-A72 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5F with CoreSight™	1.3 GHz 600 MHz	DDR DMA PCIe	256 KB	1M Logic Cells Versal™ Prime FPGA	1369-BFBGA FCBGA	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	35 mm	1369-FCBGA	35 mm	FPGA MPU	110 °C	-40 °C	478
