338313 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

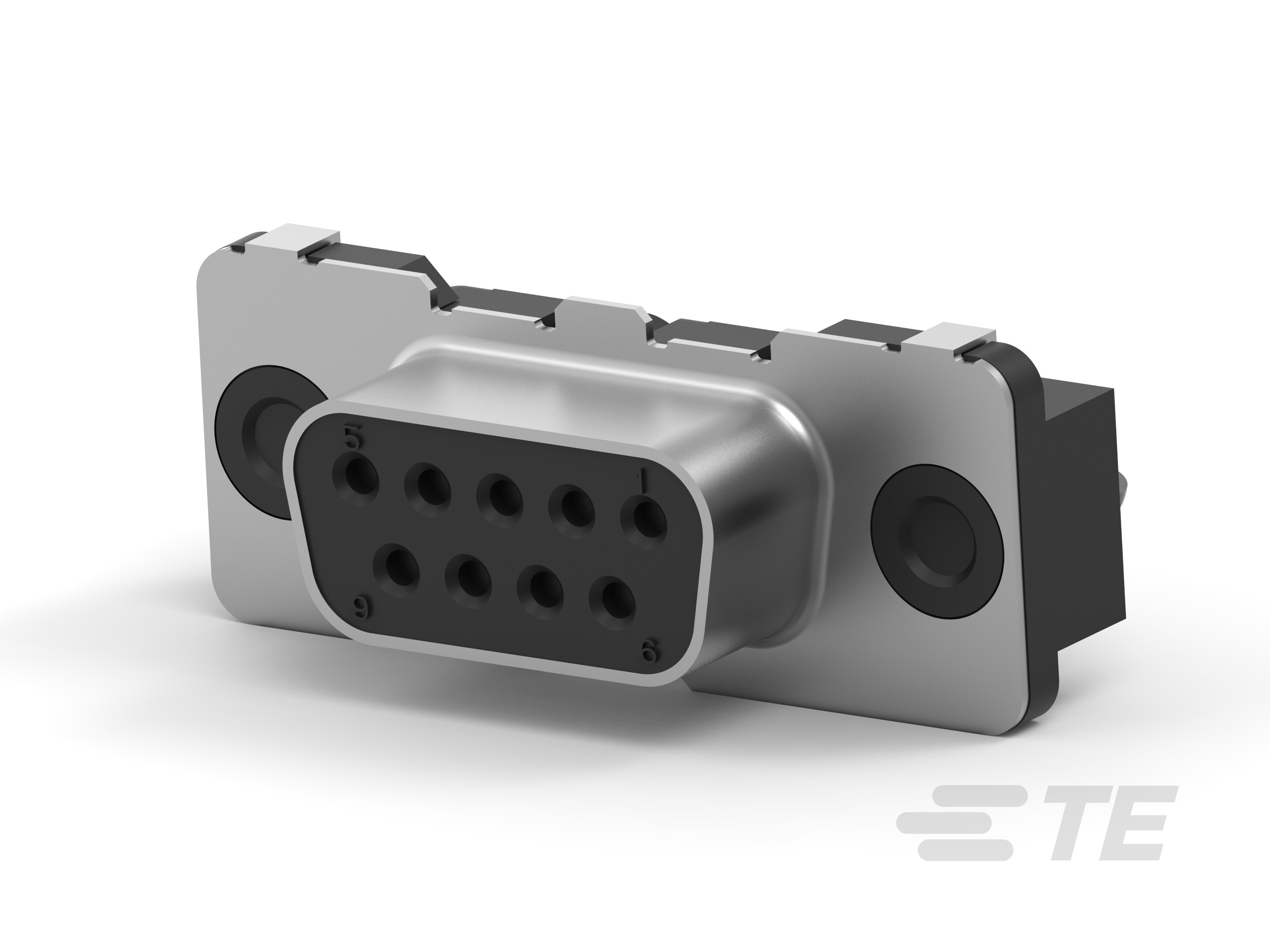

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Shell Size | Connector Layout | Features | Connector Type | Current Rating | Material Flammability Rating | Mounting Type | Flange Feature | Finish | Shell Material | Number of Positions | Contact Type | Contact Finish | Number of Rows | Connector Style | Termination | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | DE E | Board Lock | Female Sockets Receptacle | 6 A | UL94 V-0 | Through Hole | Female Screwlock (4-40) Mating Side | Tin Plated | Steel | 9 | Signal | Gold | 2 | D-Sub | Solder | Glass Filled Polyester | -55 °C | 105 °C | Phosphor Bronze | Black |
 TE Connectivity AMP Connectors | 1 | DE E | Female Sockets Receptacle | 6 A | UL94 V-0 | Through Hole | Housing Shell (Unthreaded) | Tin Plated | Steel | 9 | Signal | Gold | 2 | D-Sub | Solder | Glass Filled Polyester | -55 °C | 105 °C | Phosphor Bronze | Black |
