DIAMOND GRIP Series

Catalog

TERMINALS N/I-RING 22-16 #10

Part	Width - Outer Edges	Contact Material	Contact Finish	Thickness	Features	Insulation	Terminal Type	Stud/Tab Size	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Overall	Termination	Mounting Type	Insulation Diameter (Min)	Insulation Diameter (Max)	Height Stacking (Mating)
TE Connectivity AMP Connectors 31161	0.312 in	Copper	Tin	0.031 in	Serrated Termination	Non-Insulated	Circular	10 Stud	16 AWG	22 AWG	0.775 in	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 31396	0.281 in	Copper	Tin	0.031 in	Serrated Termination	Non-Insulated	Circular	6 Stud	16 AWG	22 AWG	0.728 in	Crimp	Free Hanging (In-Line)	0.105 in	0.14 in
TE Connectivity AMP Connectors 31397	0.281 in	Copper	Tin	0.031 in	Serrated Termination	Non-Insulated	Circular	8 Stud	16 AWG	22 AWG	0.728 in	Crimp	Free Hanging (In-Line)	0.105 in	0.14 in

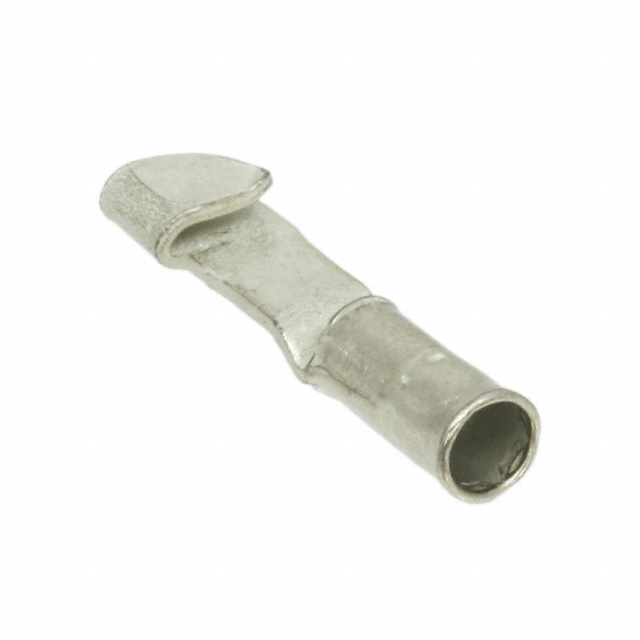

TE Connectivity AMP Connectors 31770		Copper	Tin			Non-Insulated			16 AWG	22 AWG	0.81 in			0.08 in	0.125 in	0.203 in
TE Connectivity AMP Connectors 184206-2	0.218 in	Copper	Tin	0.031 in	Serrated Termination	Non-Insulated	Circular	4 Stud	16 AWG	22 AWG	0.603 in	Crimp	Free Hanging (In-Line)
