282812 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

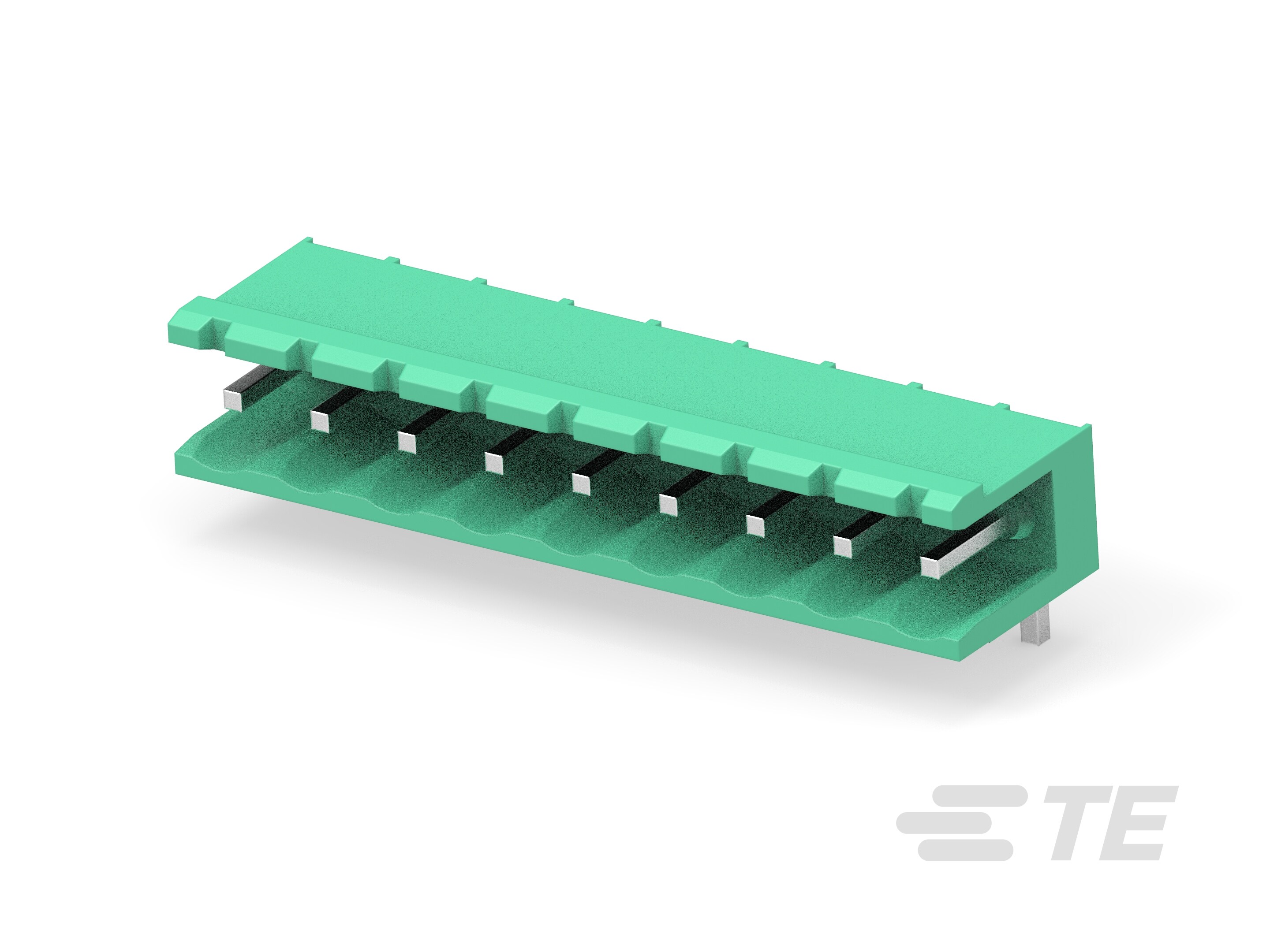

TERM BLOCK HDR 9POS 90DEG 5MM

Part	Number of Positions	Features	Pitch	Type	Current - UL	Number of Levels	Positions Per Level	Color	Voltage - UL	Header Orientation Angle	Header Orientation	Contact Mating Finish	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Material Flammability Rating	Insulation Height	Contact Tail Length	Housing Material	Contact Material
TE Connectivity AMP Connectors 282812-9	9	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	9	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-282812-3	13	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	13	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-282812-2	12	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	12	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 282812-8	8	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	8	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-282812-0	10	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	10	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 2-282812-4	24 pos	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	24	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-282812-1	11	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	11	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-282812-6	16	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	16	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-282812-4	14	Side Stacking	0.197 in	Header Male Pins Shrouded (2 Side)	15 A	1	14	Green	300 V	90 °	Right Angle	Tin	Through Hole	-40 °C	110 °C	Solder	UL94 V-0	0.329 in	0.138 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
