073101 Series
Manufacturer: Molex
Beta
⌘K

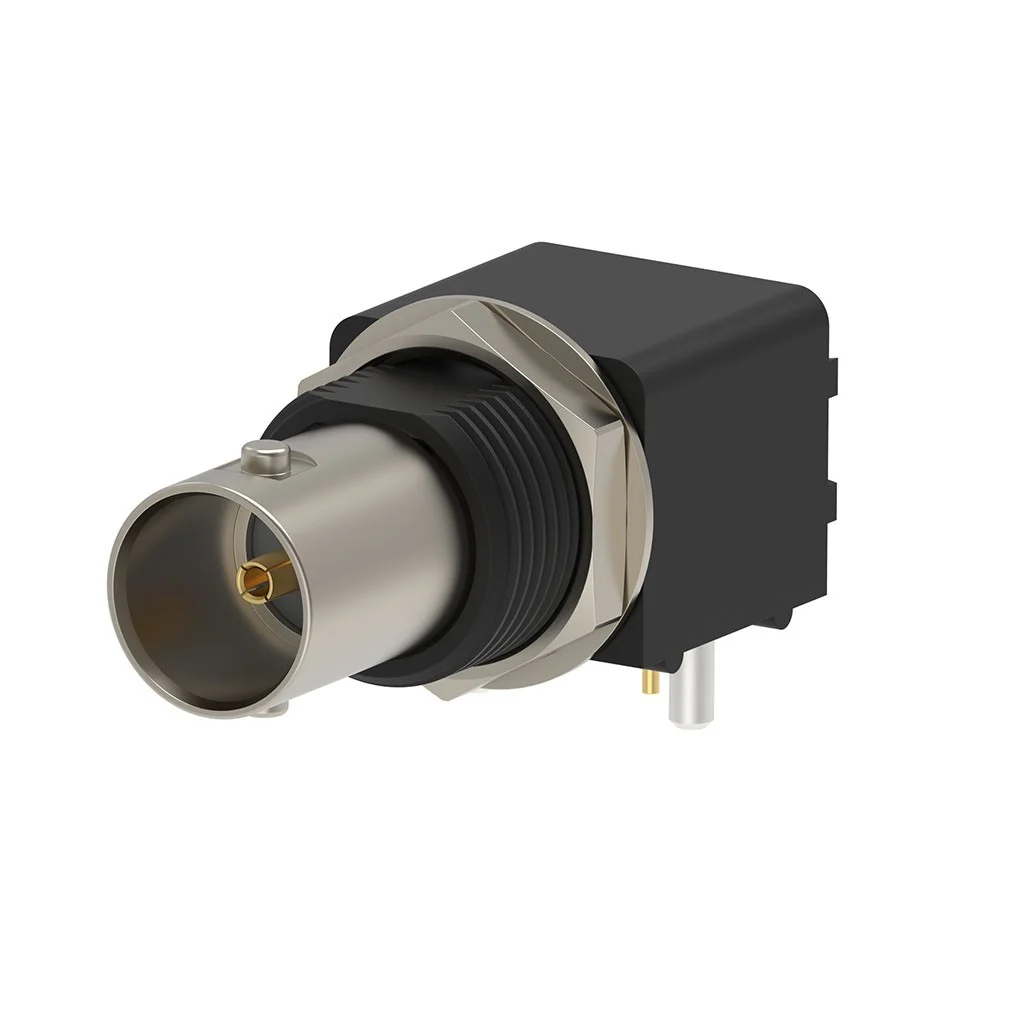

CONN BNC RCPT STR 75 OHM PCB
| Part | Shield Termination | Mounting Feature | Connector Type | Center Contact Material | Connector Style | Contact Termination | Number of Ports | Features | Fastening Type | Mounting Type | Housing Color | Impedance | Mating Cycles | Dielectric Material | Center Contact Plating | Body Finish | Body Material | Includes Total Count | Includes | Frequency - Max | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Solder | Bulkhead Front Side Nut | Female Socket Jack | Phosphor Bronze | BNC | Solder | 1 | Board Guide Isolated | Bayonet Lock | Panel Mount Through Hole | Silver White | 75 Ohm | 500 cycles | Polytetrafluoroethylene (PTFE) | Gold | Nickel | Zinc Alloy | 3 pcs | Connector Lockwasher Nut | ||||
 Molex | Solder | Bulkhead Front Side Nut | Female Socket Jack | Phosphor Bronze | BNC | Solder | 1 | Board Lock | Bayonet Lock | Panel Mount Through Hole | Silver | 75 Ohm | 500 cycles | Polypropylene (PP) | Gold | Nickel | Zinc Alloy | ||||||
 Molex | |||||||||||||||||||||||
 Molex | Solder | Bulkhead Front Side Nut | Female Socket Recepture | Phosphor Bronze | BNC | Solder | 1 | Board Guide | Bayonet Lock | Panel Mount Right Angle Through Hole | Black Silver | 50 Ohm | 2 GHz | ||||||||||
 Molex | Solder | Bulkhead Front Side Nut | Female Socket Jack | Phosphor Bronze | BNC | Solder | 1 | Board Guide Filter Isolated | Bayonet Lock | Panel Mount Through Hole | Black Silver | 75 Ohm | 500 cycles | Polypropylene (PP) | Gold | Nickel | Zinc Alloy | ||||||
 Molex | Solder | Bulkhead Front Side Nut | Female Socket Jack | Phosphor Bronze | BNC | Solder | 1 | Bayonet Lock | Panel Mount Right Angle Through Hole | Silver | 75 Ohm | 500 cycles | Polypropylene (PP) | Gold | Nickel | Zinc Alloy | 3 pcs | Connector Lockwasher Nut | |||||
 Molex | Solder | Bulkhead Front Side Nut | Female Socket Jack | Phosphor Bronze | BNC | Solder | 1 | Bayonet Lock | Panel Mount Right Angle Through Hole | Silver | 75 Ohm | 500 cycles | Polypropylene (PP) | Gold | Nickel | Zinc Alloy | |||||||
Molex | Solder | Flange | Female Socket Jack | Phosphor Bronze | N Type | Solder | 1 | Extended Insulation | Threaded | Panel Mount | Silver | 50 Ohm | 500 cycles | Polytetrafluoroethylene (PTFE) | Gold | Nickel | Brass | 11 GHz | 125 °C | -55 °C | 1000 V | ||
Molex | |||||||||||||||||||||||
 Molex | Solder | Bulkhead Front Side Nut | Female Socket Jack | Phosphor Bronze | BNC | Solder | 1 | Board Lock | Bayonet Lock | Panel Mount Right Angle Through Hole | Silver | 75 Ohm | 500 cycles | Polypropylene (PP) | Gold | Nickel | Zinc Alloy |
