A3BBB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE- ASR26B/AE26G/ASR26B

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Positions	Features	Length	Length	Length	Contact Finish	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Connector Type	Number of Rows	Length [x]	Length [x]	Color
TE Connectivity Raychem Cable Protection A3BBB-2606G	15 µin	0.38 µm	0.1 in	2.54 mm	26	Strain Relief	152.4 mm	6 "	0.5 '	Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2
TE Connectivity Raychem Cable Protection A3BBB-4018G	15 µin	0.38 µm	0.1 in	2.54 mm	40	Strain Relief				Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3BBB-4036M	15 µin	0.38 µm	0.1 in	2.54 mm	40	Strain Relief				Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2	914.4 mm	3 ft	Multiple Ribbon

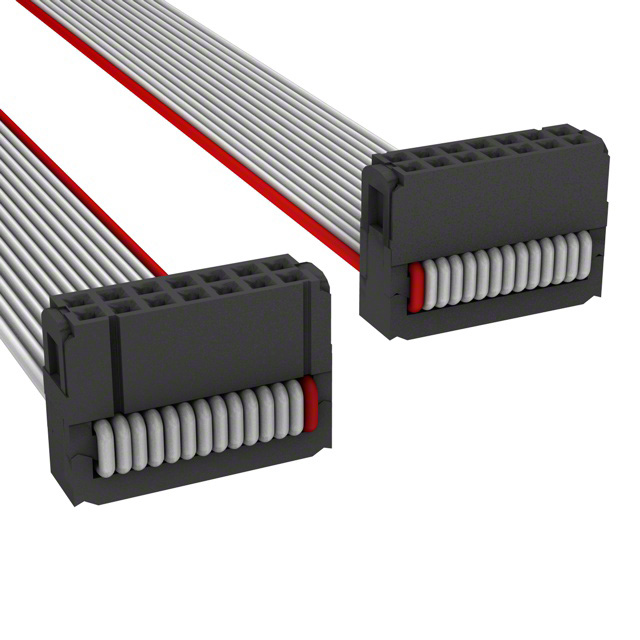

TE Connectivity Raychem Cable Protection A3BBB-1436G	15 µin	0.38 µm	0.1 in	2.54 mm	14	Strain Relief				Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3BBB-2036M	15 µin	0.38 µm	0.1 in	2.54 mm	20	Strain Relief				Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2	914.4 mm	3 ft	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BBB-4006G	15 µin	0.38 µm	0.1 in	2.54 mm	40	Strain Relief	152.4 mm	6 "	0.5 '	Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2

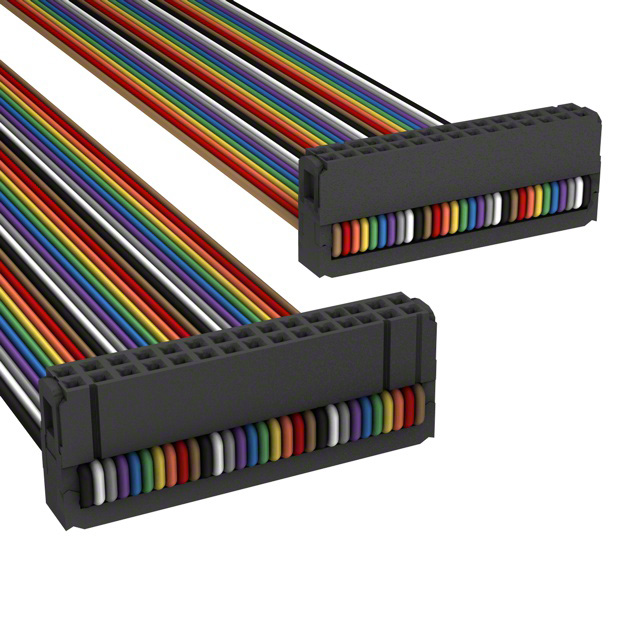

TE Connectivity Raychem Cable Protection A3BBB-3036M	15 µin	0.38 µm	0.1 in	2.54 mm	30	Strain Relief				Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2	914.4 mm	3 ft	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BBB-3406M	15 µin	0.38 µm	0.1 in	2.54 mm	34	Strain Relief	152.4 mm	6 "	0.5 '	Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2			Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BBB-3436M	15 µin	0.38 µm	0.1 in	2.54 mm	34	Strain Relief				Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2	914.4 mm	3 ft	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BBB-1006G	15 µin	0.38 µm	0.1 in	2.54 mm	10	Strain Relief	152.4 mm	6 "	0.5 '	Gold	Unshielded	0.05 "	1.27 mm	IDC	Socket to Socket	2
