226990 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

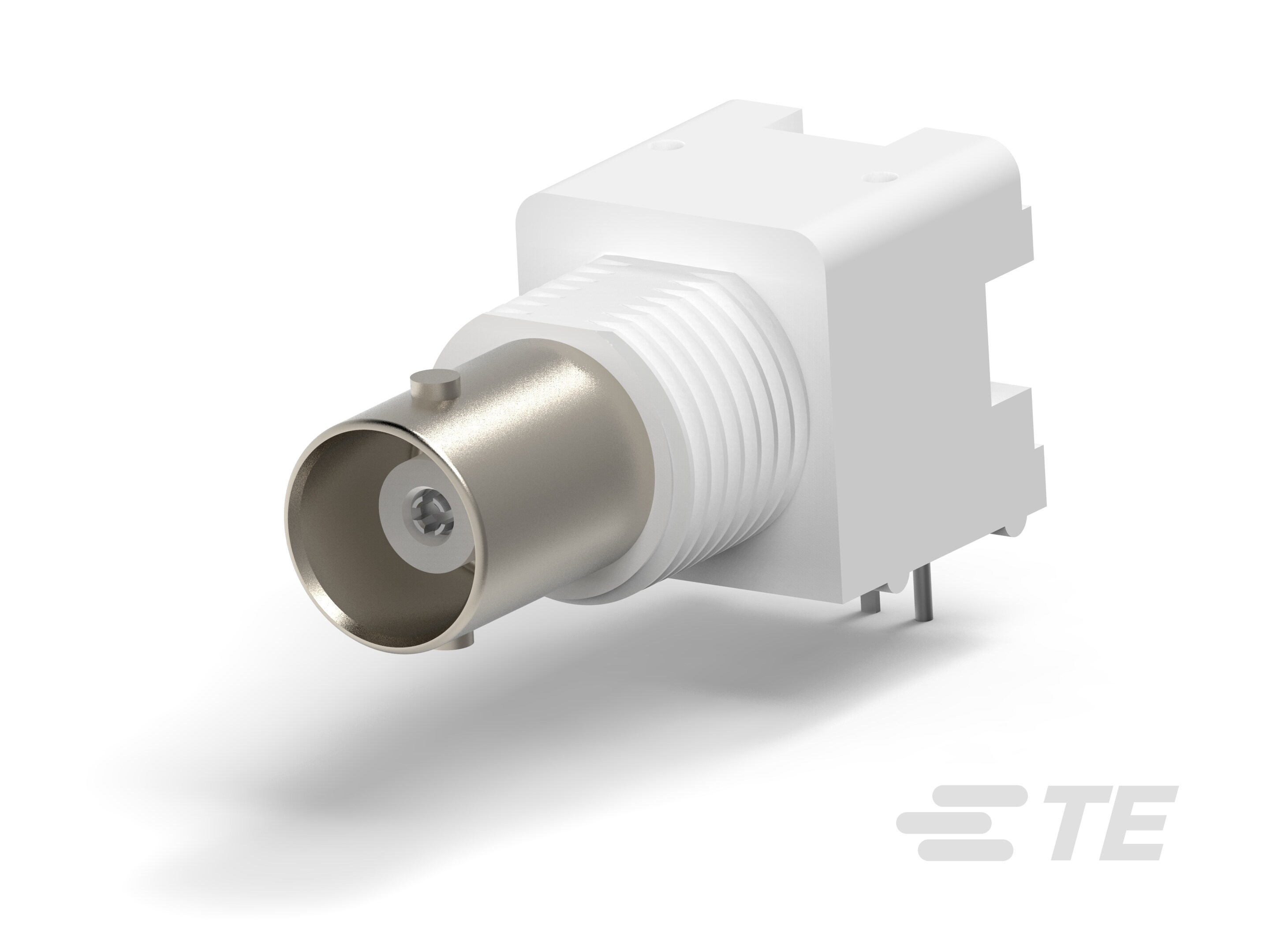

CONN BNC JACK R/A 50 OHM PCB
| Part | Fastening Type | Connector Type | Center Contact Material | Mounting Feature | Shield Termination | Mounting Type | Features | Connector Style | Housing Color | Frequency - Max | Number of Ports | Contact Termination | Impedance | Body Material | Body Finish | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Mating Cycles | Includes Total Count | Includes | Dielectric Material | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Bayonet Lock | Female Socket Jack | Phosphor Bronze | Bulkhead Front Side Nut | Solder | Panel Mount Right Angle Through Hole | Isolated | BNC | Natural Silver | 4 GHz | 1 | Solder | 50 Ohm | Zinc | Nickel | -55 °C | 85 °C | 500 V | 500 cycles | 3 pcs | Connector Lockwasher Nut | Polymethylpentene (PMP) | Tin |
 TE Connectivity AMP Connectors | Bayonet Lock | Female Socket Jack | Phosphor Bronze | Bulkhead Front Side Nut | Solder | Panel Mount Right Angle Through Hole | Isolated | BNC | Natural Silver | 4 GHz | 1 | Solder | 50 Ohm | Zinc | Nickel | -55 °C | 85 °C | 500 V | 500 cycles | 3 pcs | Connector Lockwasher Nut | Polymethylpentene (PMP) | Tin |
 TE Connectivity AMP Connectors | Bayonet Lock | Female Socket Jack | Phosphor Bronze | Bulkhead Front Side Nut | Solder | Panel Mount Right Angle Through Hole | Isolated | BNC | Black Silver | 4 GHz | 1 | Solder | 50 Ohm | Zinc | Nickel | -55 °C | 85 °C | 500 V | 500 cycles | 3 pcs | Connector Lockwasher Nut | Polymethylpentene (PMP) | Gold |
