55851 Series

Catalog

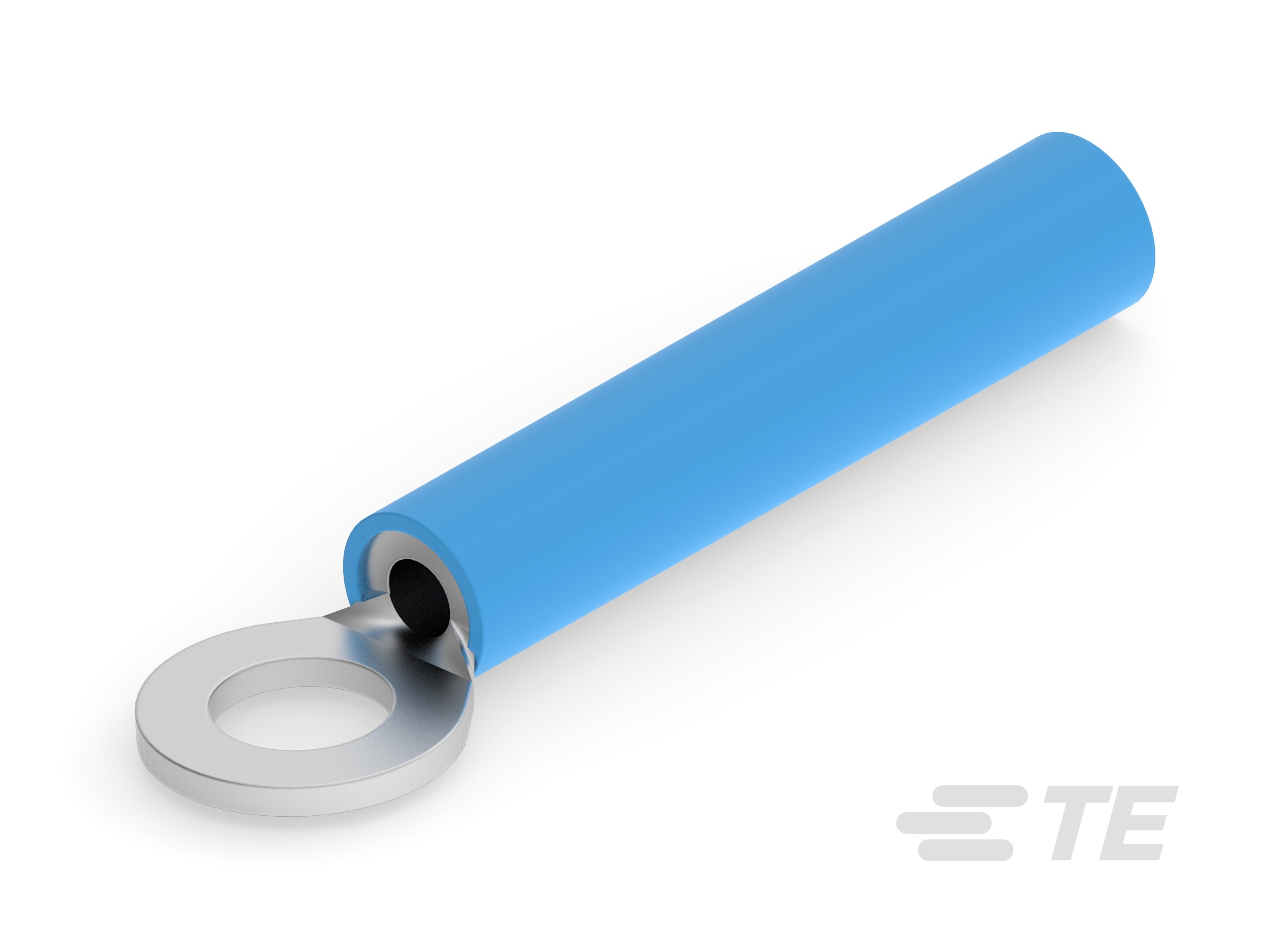

CONN RING CIRC 14-16AWG #8 CRIMP

Part	Insulation Diameter	Material - Insulation	Thickness	Insulation	Termination	Length - Overall	Contact Material	Width - Outer Edges	Contact Finish	Stud/Tab Size	Color	Terminal Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Mounting Type
TE Connectivity AMP Connectors 8-55851-2	0.19 in	Polyolefin	0.032 in	Insulated with Heat Shrink	Crimp	1.218 in	Copper ETP	0.31 in	Tin	8 Stud	Blue	Circular	16 AWG	14 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 55851-1	0.19 in	Polyolefin	0.032 in	Insulated with Heat Shrink	Crimp	1.218 in	Copper ETP	0.31 in	Tin	8 Stud	Blue	Circular	16 AWG	14 AWG	Free Hanging (In-Line)
