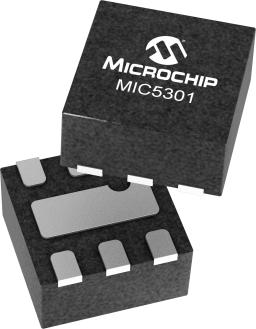

MIC5301 Series

Catalog

150MA SINGLE LDO 5 TSOT - T/R ROHS COMPLIANT: YES

Part	Number of Regulators	Control Features	Protection Features	Mounting Type	Output Configuration	Package Name	PSRR (Maximum)	PSRR (Minimum)	Voltage Dropout (Max)	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Output Type	Current - Output	Package / Case	Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Width	Voltage - Output (Max)
Microchip Technology MIC5301-1.3YD5-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	TSOT-23-5	75 dB	50 dB	0.1 V	120 µA	1.3 V	Fixed	150 mA	SOT-23-5 Thin TSOT-23-5	5.5 V	125 °C	-40 °C
Microchip Technology MIC5301-2.85YMT-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	6-TMLF®	75 dB	50 dB	0.1 V	120 µA	2.85 V	Fixed	150 mA	6-TMLF® 6-UFDFN Exposed Pad	5.5 V	125 °C	-40 °C	1.6 mm	1.6 mm
Microchip Technology MIC5301-2.8YD5-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	TSOT-23-5	75 dB	50 dB	0.1 V	120 µA	2.8 V	Fixed	150 mA	SOT-23-5 Thin TSOT-23-5	5.5 V	125 °C	-40 °C
Microchip Technology MIC5301YD5-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	TSOT-23-5	75 dB	50 dB	0.1 V	120 µA	1.25 V	Adjustable	150 mA	SOT-23-5 Thin TSOT-23-5	5.5 V	125 °C	-40 °C			5.5 V
Microchip Technology MIC5301-3.3YD5-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	TSOT-23-5	75 dB	50 dB	0.1 V	120 µA	3.3 V	Fixed	150 mA	SOT-23-5 Thin TSOT-23-5	5.5 V	125 °C	-40 °C
Microchip Technology MIC5301-3.0YMT-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	6-TMLF®	75 dB	50 dB	0.1 V	120 µA	3 V	Fixed	150 mA	6-TMLF® 6-UFDFN Exposed Pad	5.5 V	125 °C	-40 °C	1.6 mm	1.6 mm
Microchip Technology MIC5301-2.5YMT-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	6-TMLF®	75 dB	50 dB	0.1 V	120 µA	2.5 V	Fixed	150 mA	6-TMLF® 6-UFDFN Exposed Pad	5.5 V	125 °C	-40 °C	1.6 mm	1.6 mm
Microchip Technology MIC5301-2.6YD5-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	TSOT-23-5	75 dB	50 dB	0.1 V	120 µA	2.6 V	Fixed	150 mA	SOT-23-5 Thin TSOT-23-5	5.5 V	125 °C	-40 °C
Microchip Technology MIC5301-1.8YD5-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	TSOT-23-5	75 dB	50 dB	0.1 V	120 µA	1.8 V	Fixed	150 mA	SOT-23-5 Thin TSOT-23-5	5.5 V	125 °C	-40 °C
Microchip Technology MIC5301-2.9YMT-TR	1	Enable	Over Current Over Temperature	Surface Mount	Positive	6-TMLF®	75 dB	50 dB	0.1 V	120 µA	2.9 V	Fixed	150 mA	6-TMLF® 6-UFDFN Exposed Pad	5.5 V	125 °C	-40 °C	1.6 mm	1.6 mm
