641207 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

02P MTA156 HDR ASSY FL RA 30AU

Part	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Post	Contact Shape	Insulation Material	Current Rating	Contact Length - Post	Operating Temperature (Min)	Operating Temperature (Max)	Style	Material Flammability Rating	Contact Finish - Mating	Contact Type	Number of Rows	Fastening Type	Mounting Type	Shrouding	Pitch - Mating	Insulation Height	Contact Material	Number of Positions	Connector Type	Number of Positions Loaded	Contact Length - Mating	Termination	Insulation Color	Applications

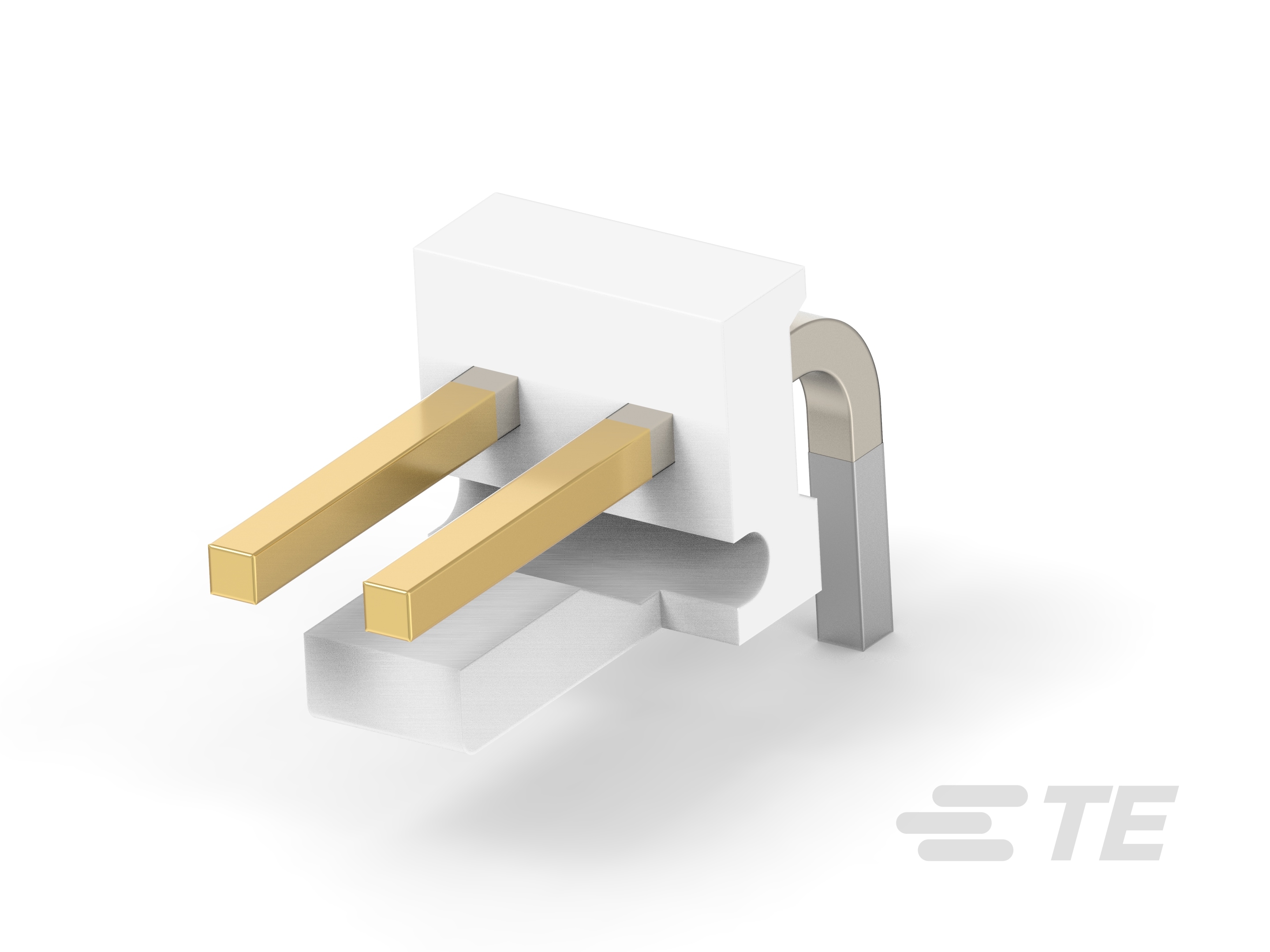

TE Connectivity AMP Connectors 641207-2	30 µin	600 V	Tin-Lead	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	2	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
TE Connectivity AMP Connectors 4-641207-7	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	17	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
TE Connectivity AMP Connectors 3-641207-6	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	6	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
TE Connectivity AMP Connectors 4-641207-4	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	14	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
TE Connectivity AMP Connectors 3-641207-9	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	9	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
TE Connectivity AMP Connectors 4-641207-2	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	12	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
TE Connectivity AMP Connectors 4-641207-6	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	16	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
TE Connectivity AMP Connectors 4-641207-5	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	15	Header	All	0.4 in	Solder	Natural	General Purpose Industrial

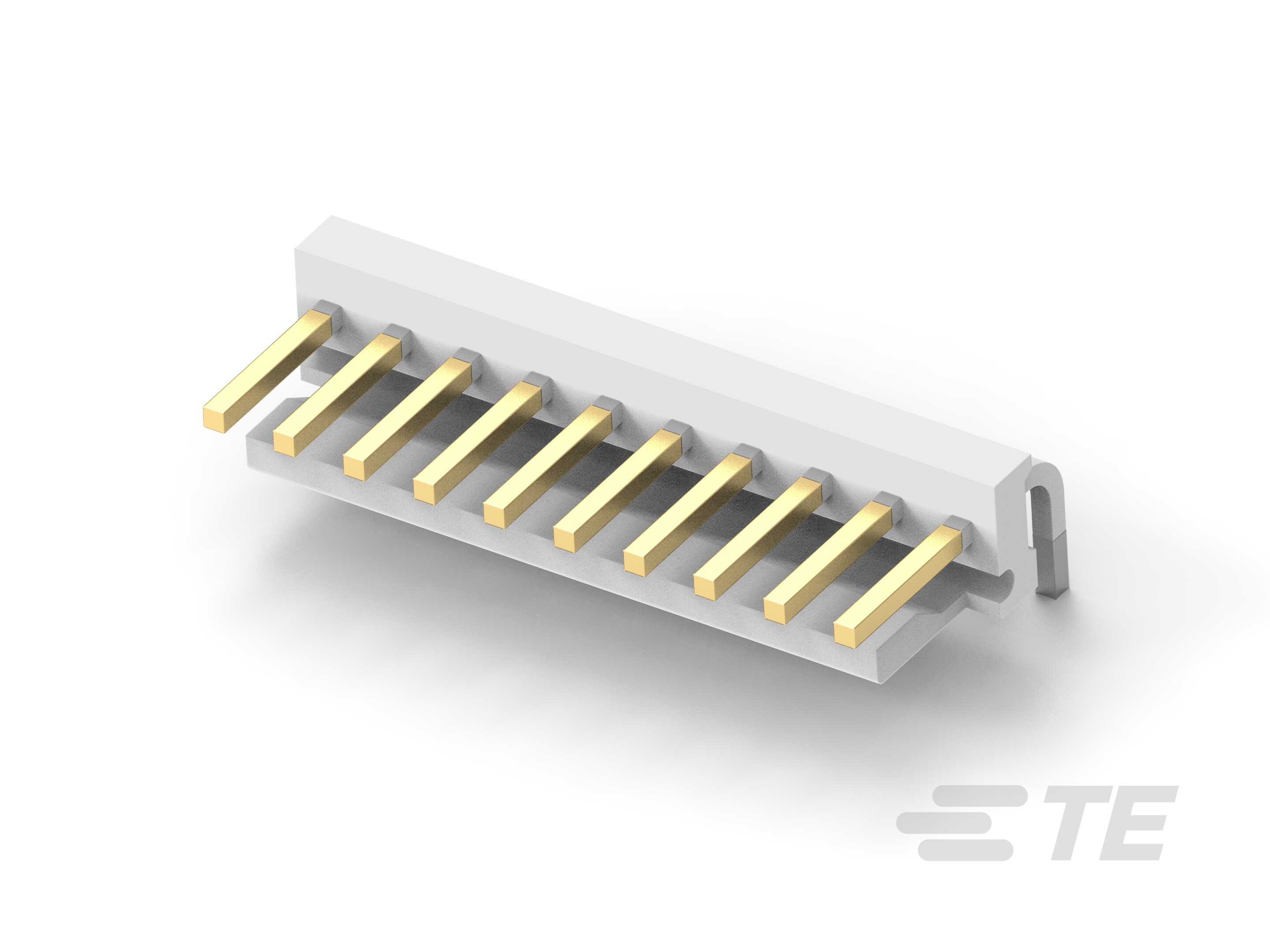

TE Connectivity AMP Connectors 4-641207-0	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	10	Header	All	0.4 in	Solder	Natural	General Purpose Industrial

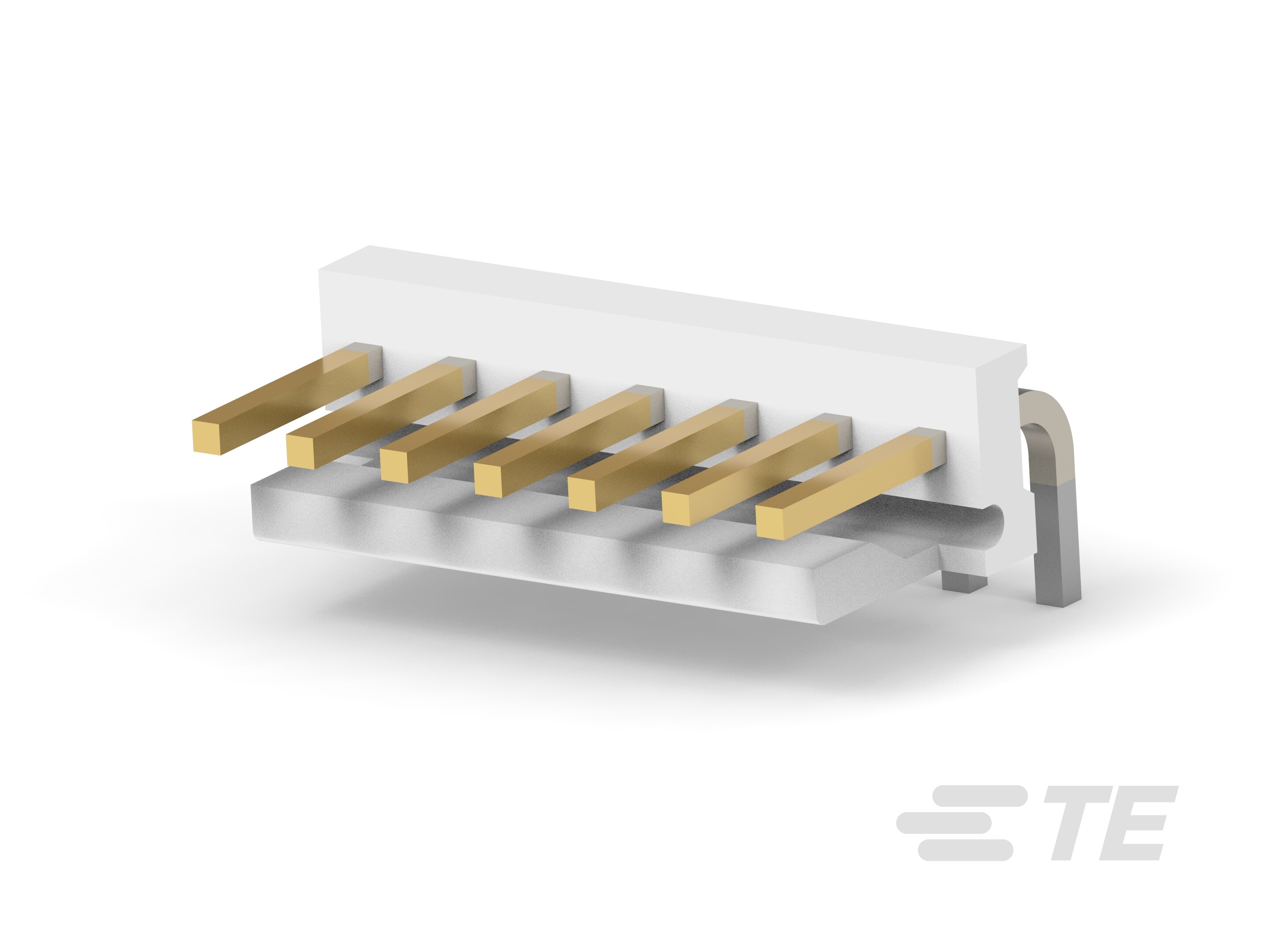

TE Connectivity AMP Connectors 3-641207-7	30 µin	600 V	Tin	Square	Glass Filled Thermoplastic	Varies by Wire Gauge	0.125 in	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Gold	Male Pin	1	Friction Lock	Right Angle Through Hole	Shrouded - 1 Wall	0.156 in	0.3 in	Copper Alloy	7	Header	All	0.4 in	Solder	Natural	General Purpose Industrial
