2317209 Series

Catalog

7P,2MM,REC,IDC,LRAMP,26-30,STRIP

Part	Fastening Type	Contact Finish	Color	Contact Type	Wire Type	Connector Type	Number of Positions	Pitch	Mounting Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Cable Termination	Contact Finish Thickness	Number of Rows
TE Connectivity AMP Connectors 2317209-7	Push-Pull	Gold	Black	Female Socket	Discrete Ribbon Cable	Receptacle	7	0.079 in	Free Hanging (In-Line)	26 AWG	30 AWG	IDC	30 µin	1
TE Connectivity AMP Connectors 1-2317209-2	Push-Pull	Tin	Black	Female Socket	Discrete Ribbon Cable	Receptacle	12	0.079 in	Free Hanging (In-Line)	26 AWG	30 AWG	IDC	50 µin	1
TE Connectivity AMP Connectors 2317209-9	Push-Pull	Tin	Black	Female Socket	Discrete Ribbon Cable	Receptacle	9	0.079 in	Free Hanging (In-Line)	26 AWG	30 AWG	IDC	50 µin	1
TE Connectivity AMP Connectors 1-2317209-1	Push-Pull	Tin	Black	Female Socket	Discrete Ribbon Cable	Receptacle	11	0.079 in	Free Hanging (In-Line)	26 AWG	30 AWG	IDC	50 µin	1
TE Connectivity AMP Connectors 2317209-8	Push-Pull	Tin	Black	Female Socket	Discrete Ribbon Cable	Receptacle	8	0.079 in	Free Hanging (In-Line)	26 AWG	30 AWG	IDC	50 µin	1

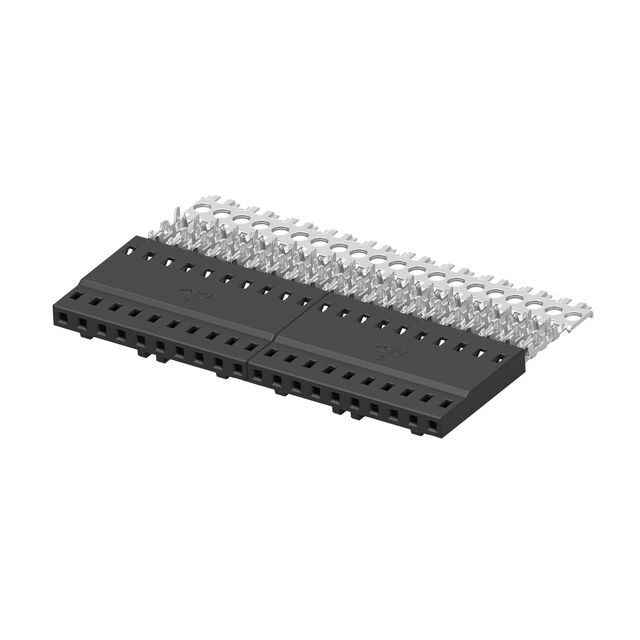

TE Connectivity AMP Connectors 1-2317209-0	Push-Pull	Tin	Black	Female Socket	Discrete Ribbon Cable	Receptacle	10	0.079 in	Free Hanging (In-Line)	26 AWG	30 AWG	IDC	50 µin	1
