DW-23-13 Series

Catalog

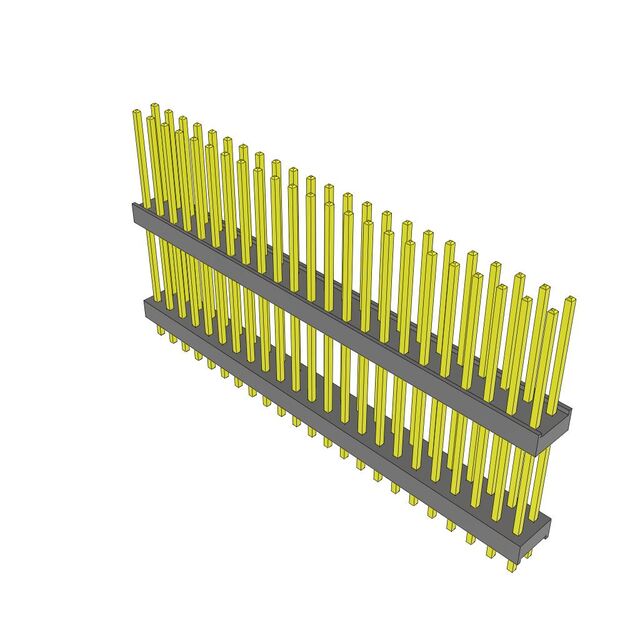

CONN HDR 23POS 0.1 STACK T/H

Part	Length - Tail [x]	Length - Tail [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Color	Termination	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing
Samtec Inc. DW-23-13-L-S-500	0.11 in	2.794 mm	0.25 Ám	10 Áin	Through Hole	31.242 mm	1.23 in	0.62 in	15.748 mm	Gold	0.5 in	12.7 mm	Black	Solder	23	1	2.54 mm	0.1 in
Samtec Inc. DW-23-13-L-D-750	0.11 in	2.794 mm	0.25 Ám	10 Áin	Through Hole	31.242 mm	1.23 in	0.37 in	9.4 mm	Gold	0.75 in	19.05 mm	Black	Solder	46	2	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. DW-23-13-L-S-913	0.11 in	2.794 mm	0.25 Ám	10 Áin	Through Hole	31.242 mm	1.23 in	0.207 in	5.258 mm	Gold			Black	Solder	23	1	2.54 mm	0.1 in
