MCP48CVB22 Series

12-Bit Dual Output DAC with SPI

Catalog

12-Bit Dual Output DAC with SPI

Part	Settling Time	Number of Bits	Number of D/A Converters	Reference Type	Mounting Type	Data Interface	Operating Temperature (Max)	Operating Temperature (Min)	INL (LSB) Tolerance	DNL (LSB) Tolerance	Differential Output	Package / Case	Package Width	Package Name	Package Length
Microchip Technology MCP48CVB22-E/MG	16 µs	12 bits	2 count	External Internal	Surface Mount	SPI	125 °C	-40 °C	1 LSB	1 LSB	No	16-VFQFN Exposed Pad	3 mm	16-QFN	3 mm
Microchip Technology MCP48CVB22-E/MF	16 µs	12 bits	2 count	External Internal	Surface Mount	SPI	125 °C	-40 °C	1 LSB	1 LSB	No	10-VFDFN Exposed Pad	3 mm	10-DFN	3 mm

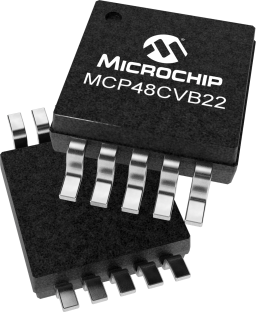

Microchip Technology MCP48CVB22-E/UN	16 µs	12 bits	2 count	External Internal	Surface Mount	SPI	125 °C	-40 °C	1 LSB	1 LSB	No		3 mm	10-MSOP 10-TFSOP	0.118 in

Catalog

12-Bit Dual Output DAC with SPI

Description

MCP48CVB22 is a dual channel, 12-bit, buffered voltage output Digital-to-Analog Converter (DAC) with volatile memory and an SPI Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power consumption and fast settling time of 16µs. It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations and motor control applications. For different resolutions and number of output channels, please check out our other parts in the MCP48CVBxx family.
