843001I-22 Series

FemtoClock Crystal/LVCMOS-to-3.3V,2.5V LVPECL Frequency Synthesizer

Manufacturer: Renesas Electronics Corporation

Catalog

FemtoClock Crystal/LVCMOS-to-3.3V,2.5V LVPECL Frequency Synthesizer

Part	Frequency - Max	Output Ratio	Input Ratio	PLL	Input	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output	Multiplier	Divider	Type	Mounting Type	Differential Output	Differential Input	Number of Circuits	Package Width	Package Name	Package Length
Renesas Electronics Corporation 843001AGI-22LF	640 MHz	2	3	Yes with Bypass	Crystal LVCMOS LVTTL	-40 °C	85 °C	3.63 V	2.375 V	LVCMOS LVPECL LVTTL	No	Yes	Frequency Synthesizer	Surface Mount	Yes	No	1	4.4 mm	24-TSSOP	0.173 in
Renesas Electronics Corporation 843001AGI-22LFT	640 MHz	2	3	Yes with Bypass	Crystal LVCMOS LVTTL	-40 °C	85 °C	3.63 V	2.375 V	LVCMOS LVPECL LVTTL	No	Yes	Frequency Synthesizer	Surface Mount	Yes	No	1	4.4 mm	24-TSSOP	0.173 in

Catalog

FemtoClock Crystal/LVCMOS-to-3.3V,2.5V LVPECL Frequency Synthesizer

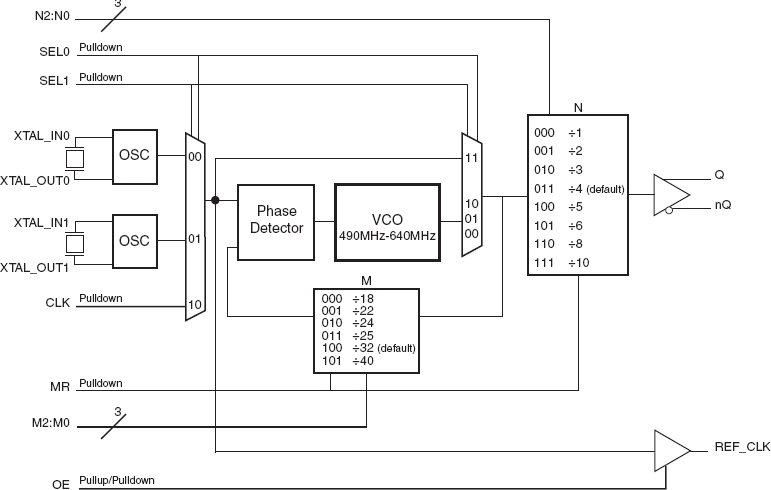

Description
