2327677 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

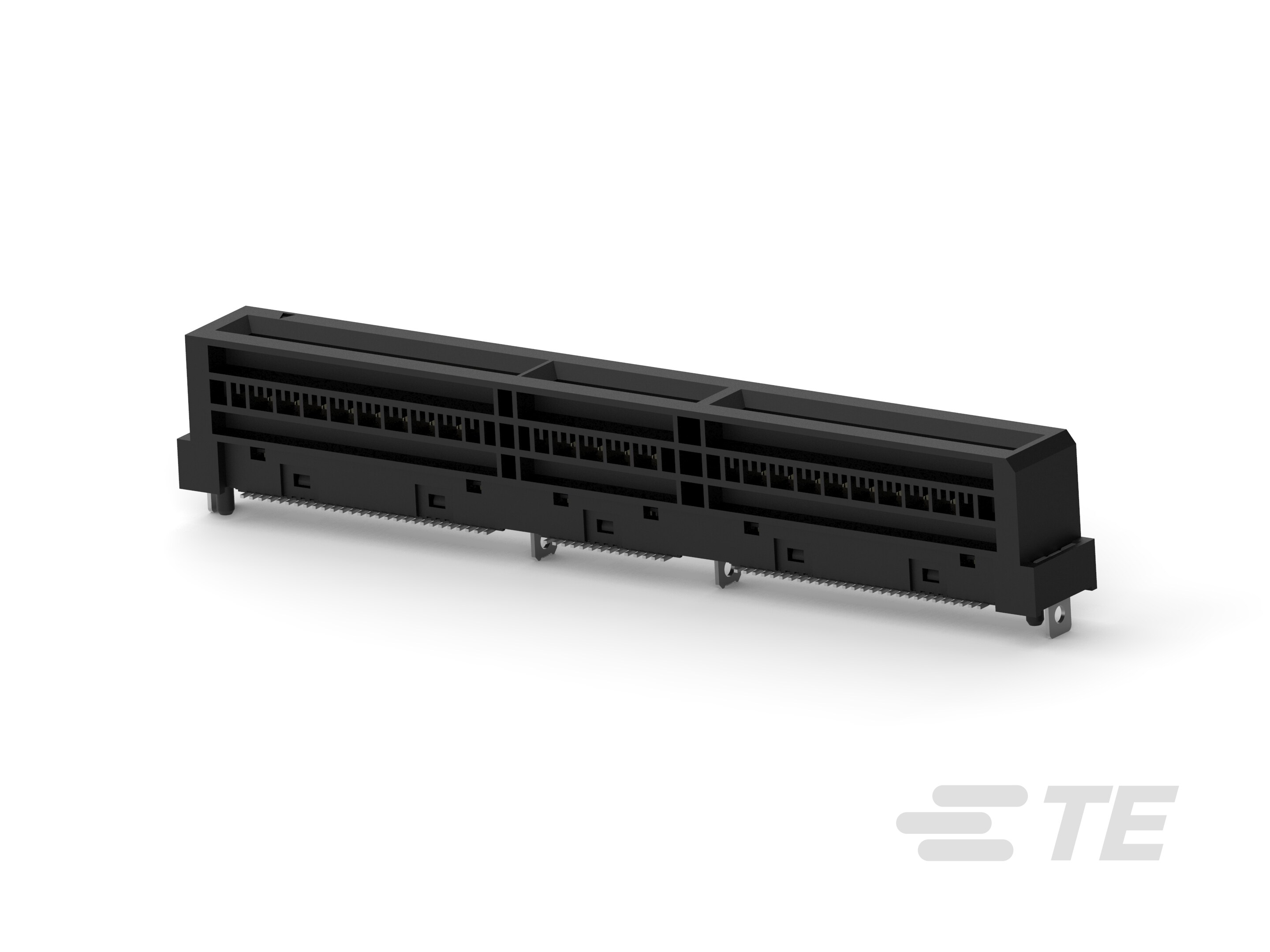

RECEPT ASSY, 140 POS, VERT, SLIVER 2.0
| Part | Contact Material | Contact Finish | Card Thickness | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Read Out | Mounting Type | Features | Contact Finish Thickness | Gender | Number of Rows | Termination | Number of Row | Number of Bay | Pitch | Card Type | Color | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | Gold | 0.062 in | 28 140 | -55 °C | 85 °C | Dual | Surface Mount | Board Guide Pick and Place Solder Retention | 15 µin | Female | 2 | Solder | 28 | 14 | 0.024 in | Dual Edge Non Specified | Black | LCP Liquid Crystal Polymer |
TE Connectivity AMP Connectors | Copper Alloy | Gold | 0.062 in | 28 140 | -55 °C | 85 °C | Dual | Surface Mount | Board Guide Pick and Place Solder Retention | 30 µin | Female | 2 | Solder | 28 | 14 | 0.024 in | Dual Edge Non Specified | Black | LCP Liquid Crystal Polymer |
