2842103 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 6P,2MM,BRK HDR,SRVT,SMD,0.38AU,TR W/CAP

Part	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Features	Fastening Type	Contact Finish - Post	Voltage Rating	Voltage Rating (Type)	Insulation Material	Insulation Color	Current Rating	Number of Positions Loaded	Shrouding	Contact Length - Mating	Pitch - Mating	Insulation Height	Contact Type	Contact Material	Number of Positions	Contact Shape	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Contact Finish - Mating	Style	Material Flammability Rating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2842103-6	15 µin	1	Breakaway Header	Pick and Place	Push-Pull	Tin	125 V	DC	Thermoplastic	Black	2 A	All	Unshrouded	0.157 in	0.079 in	0.059 in	Male Pin	Copper Alloy	6	Square	Surface Mount	125 °C	-40 °C	Solder	Gold	Board	UL94 V-0	78.7 µin
TE Connectivity AMP Connectors 2842103-4	15 µin	1	Breakaway Header	Pick and Place	Push-Pull	Tin	125 V	DC	Thermoplastic	Black	2 A	All	Unshrouded	0.157 in	0.079 in	0.059 in	Male Pin	Copper Alloy	4	Square	Surface Mount	125 °C	-40 °C	Solder	Gold	Board	UL94 V-0	78.7 µin

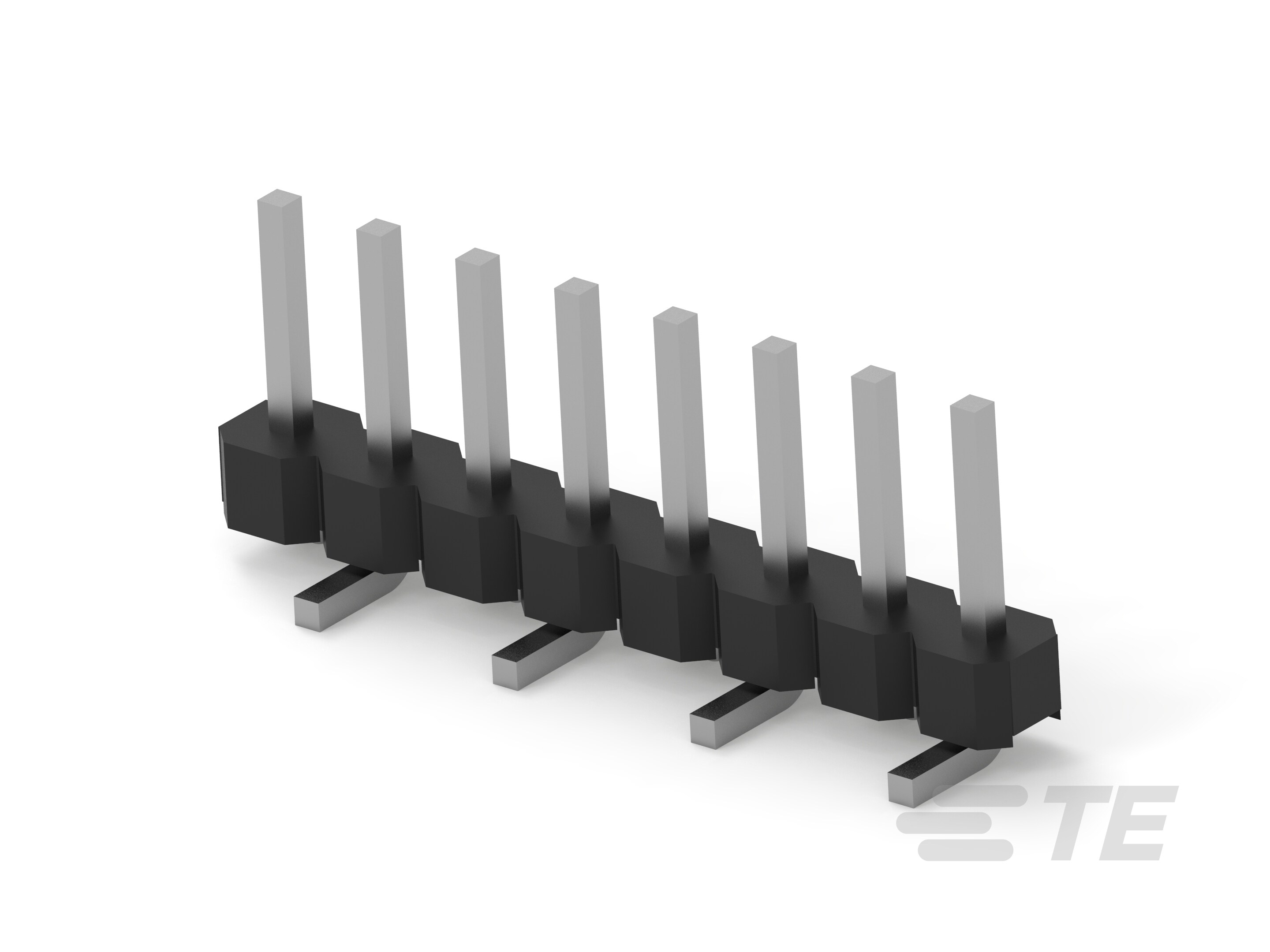

TE Connectivity AMP Connectors 2842103-8	15 µin	1	Breakaway Header	Pick and Place	Push-Pull	Tin	125 V	DC	Thermoplastic	Black	2 A	All	Unshrouded	0.157 in	0.079 in	0.059 in	Male Pin	Copper Alloy	8	Square	Surface Mount	125 °C	-40 °C	Solder	Gold	Board	UL94 V-0	78.7 µin
TE Connectivity AMP Connectors 2842103-3	15 µin	1	Breakaway Header	Pick and Place	Push-Pull	Tin	125 V	DC	Thermoplastic	Black	2 A	All	Unshrouded	0.157 in	0.079 in	0.059 in	Male Pin	Copper Alloy	3	Square	Surface Mount	125 °C	-40 °C	Solder	Gold	Board	UL94 V-0	78.7 µin
TE Connectivity AMP Connectors 2842103-2	15 µin	1	Breakaway Header	Pick and Place	Push-Pull	Tin	125 V	DC	Thermoplastic	Black	2 A	All	Unshrouded	0.157 in	0.079 in	0.059 in	Male Pin	Copper Alloy	2	Square	Surface Mount	125 °C	-40 °C	Solder	Gold	Board	UL94 V-0	78.7 µin

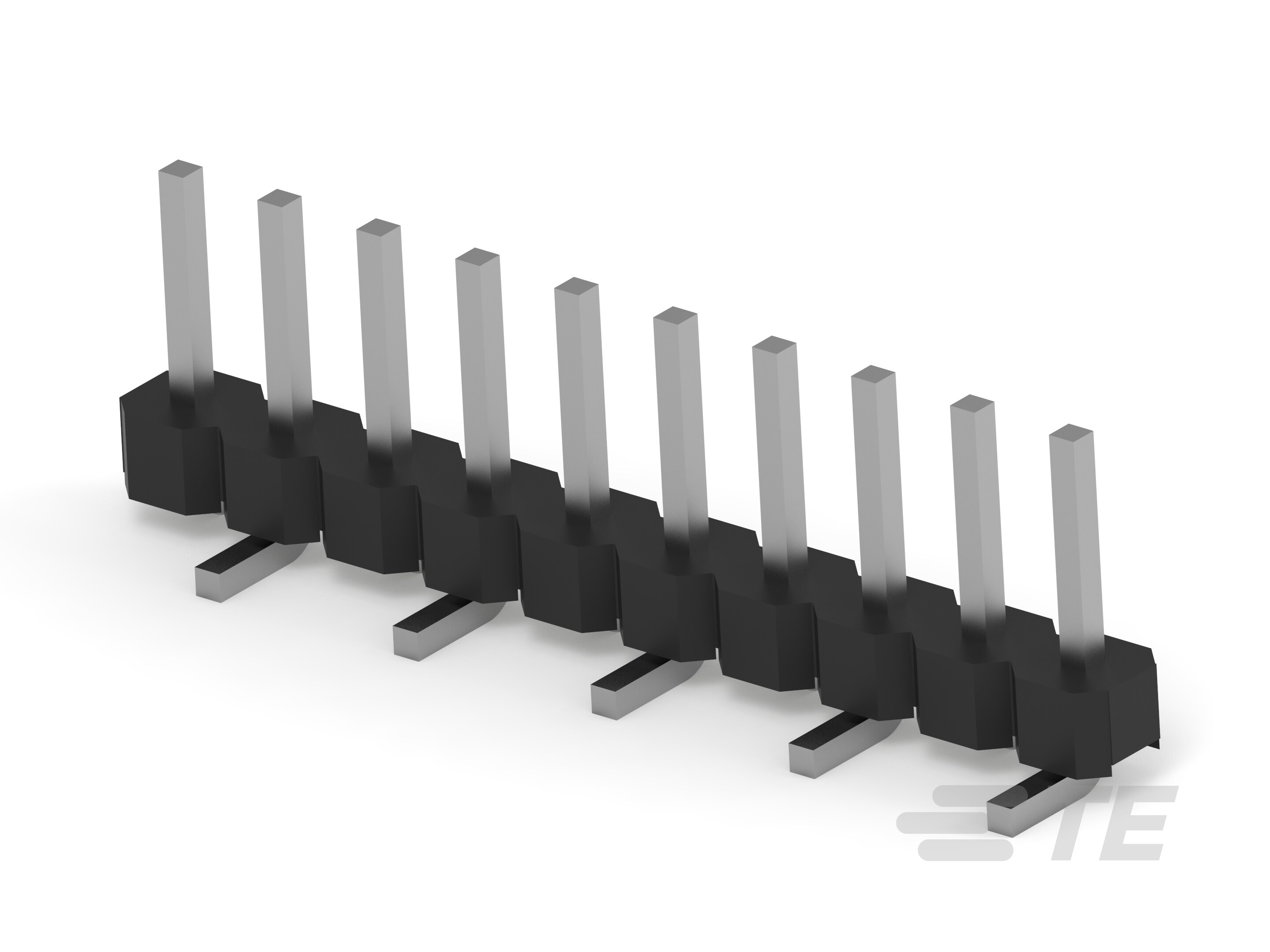

TE Connectivity AMP Connectors 1-2842103-0	15 µin	1	Breakaway Header	Pick and Place	Push-Pull	Tin	125 V	DC	Thermoplastic	Black	2 A	All	Unshrouded	0.157 in	0.079 in	0.059 in	Male Pin	Copper Alloy	10	Square	Surface Mount	125 °C	-40 °C	Solder	Gold	Board	UL94 V-0	78.7 µin
TE Connectivity AMP Connectors 2842103-5	15 µin	1	Breakaway Header	Pick and Place	Push-Pull	Tin	125 V	DC	Thermoplastic	Black	2 A	All	Unshrouded	0.157 in	0.079 in	0.059 in	Male Pin	Copper Alloy	5	Square	Surface Mount	125 °C	-40 °C	Solder	Gold	Board	UL94 V-0	78.7 µin
