2842143 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 20P,2MM,BRK HDR,DRVT,SMD,0.38AU,TR W/CAP

Part	Number of Positions	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Height	Pitch - Mating	Voltage Rating	Voltage Rating (Type)	Fastening Type	Number of Positions Loaded	Contact Length - Mating	Style	Current Rating	Contact Shape	Features	Contact Finish - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Termination	Number of Rows	Mounting Type	Insulation Color	Contact Finish - Post	Shrouding	Connector Type	Contact Material	Row Spacing - Mating	Contact Type	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-2842143-0	20	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin
TE Connectivity AMP Connectors 2842143-7	14	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin
TE Connectivity AMP Connectors 2842143-8	16	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin
TE Connectivity AMP Connectors 2842143-4	8	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin

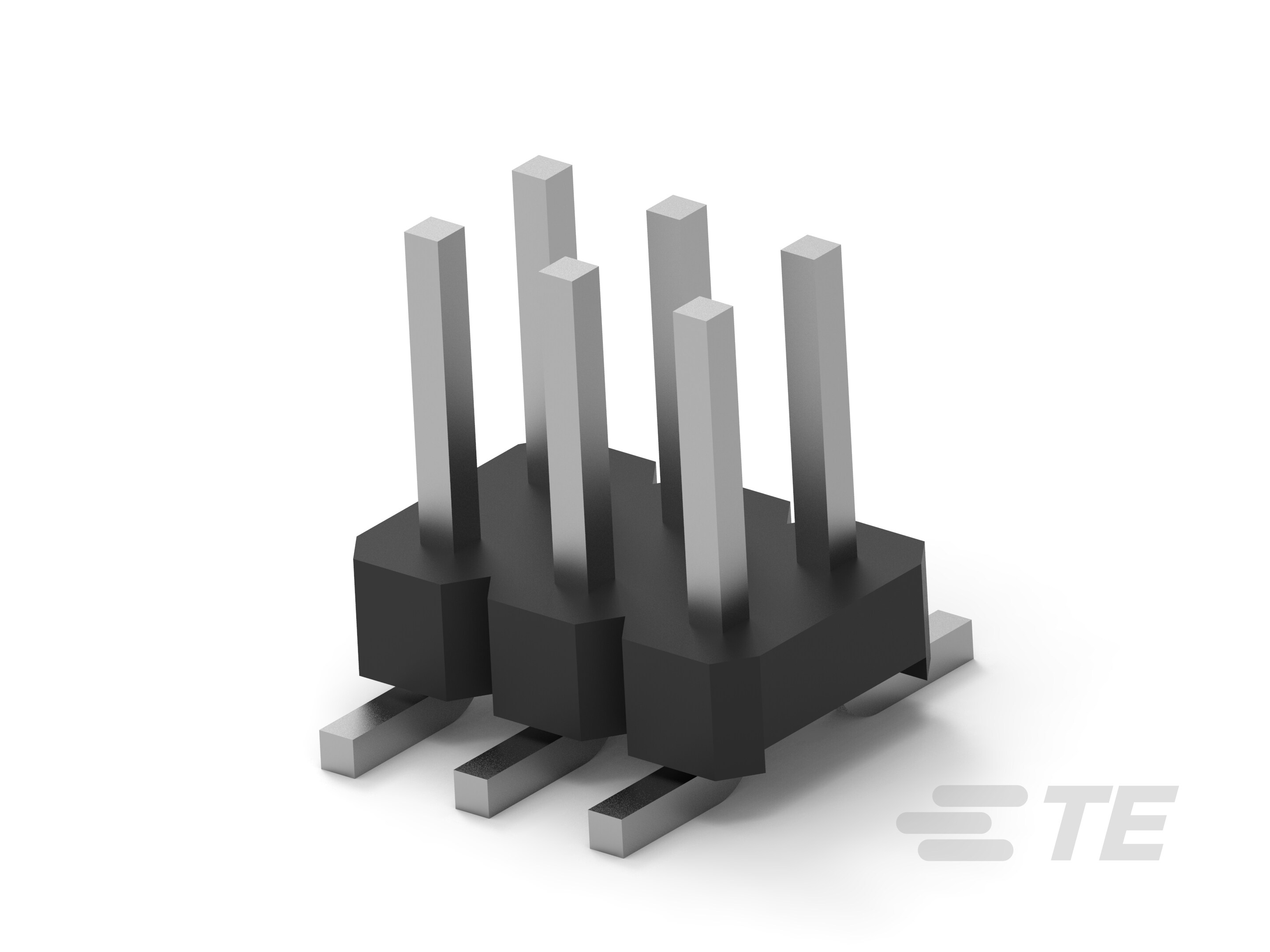

TE Connectivity AMP Connectors 2842143-3	6	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin
TE Connectivity AMP Connectors 2842143-6	12	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin
TE Connectivity AMP Connectors 2842143-2	4	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin
TE Connectivity AMP Connectors 2842143-5	10	Thermoplastic	125 °C	-40 °C	0.059 in	0.079 in	125 V	DC	Push-Pull	All	0.157 in	Board	2 A	Square	Pick and Place	Gold	UL94 V-0	15 µin	Solder	2	Surface Mount	Black	Tin	Unshrouded	Breakaway Header	Copper Alloy	0.079 in	Male Pin	78.7 µin
