52927 Series

Catalog

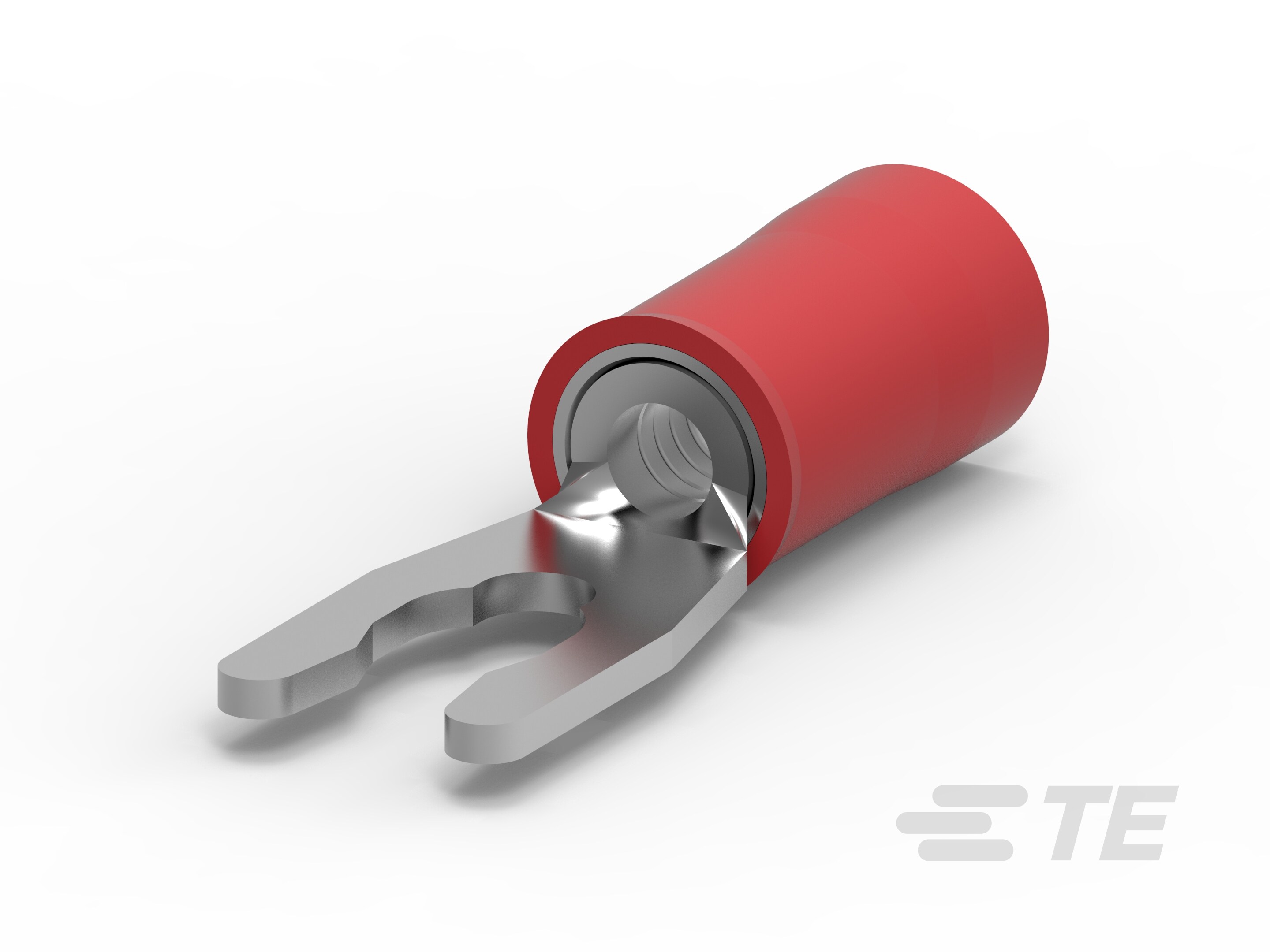

FORK / SPADE TONGUE TERMINAL, PIDG SERIES, 22 AWG, 16 AWG, 1.42 MM², M2.5, #4

Part	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Termination	Features	Terminal Type	Contact Material	Insulation	Mounting Type	Stud/Tab Size	Contact Finish	Width - Outer Edges	Length - Overall	Length - Termination	Tongue Inside Opening	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Ring Center to Termination	Material - Insulation
TE Connectivity AMP Connectors 8-52927-1	Red	16 AWG	22 AWG	Crimp	Serrated Termination	Snap Spring	Phosphor Bronze	Insulated	Free Hanging (In-Line)	4 Stud	Tin	0.203 in	0.799 in	0.404 in	0.112 in	0.08 in	0.125 in	0.25 in	Nylon PA Polyamide
