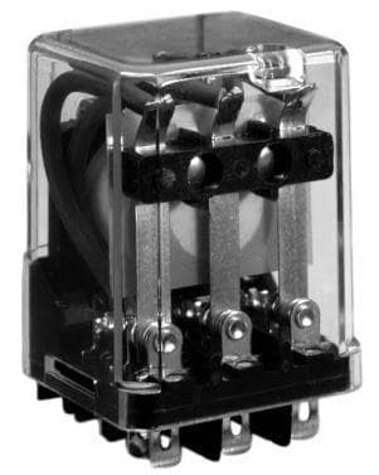

MJN1C Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 12V
| Part | Contact Material | Relay Type | Coil Type | Coil Voltage | Operate Time | Must Operate Voltage | Contact Rating (Current) | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Coil Current | Operating Temperature (Min) | Operating Temperature (Max) | Contact Form | Approval Agency | Mounting Type | Quick Connect Size (0.187") | Termination Style | Release Time | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 12 VAC | 20 ms | 9 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 100 mA | -45 °C | 70 °C | 1 C Form SPDT | CSA UR | Socketable | 0.187 in | Plug In Quick Connect | 10 ms | 120 Ohms | |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 24 VDC | 20 ms | 18 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 50 mA | -45 °C | 70 °C | 1 C Form SPDT | CSA UR | Socketable | 0.187 in | Plug In Quick Connect | 10 ms | 470 Ohms | |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 24 VDC | 20 ms | 18 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 50 mA | -45 °C | 70 °C | 1 C Form SPDT | CSA UR | Chassis Mount | 0.187 in | Quick Connect | 10 ms | 470 Ohms | |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 12 VAC | 20 ms | 9 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 100 mA | -45 °C | 70 °C | 1 C Form SPDT | CSA UR | Socketable | 0.187 in | Plug In Quick Connect | 10 ms | 120 Ohms | Lighted Indicator |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 12 VAC | 20 ms | 9 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 100 mA | -45 °C | 70 °C | 1 C Form SPDT | CSA UR | Chassis Mount | 0.187 in | Quick Connect | 10 ms | 120 Ohms | |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 240 V | 20 ms | 204 VAC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 7.1 mA | -45 °C | 70 °C | 1 C Form SPDT | CSA UR | Chassis Mount | 0.187 in | Quick Connect | 10 ms | 9.1 kOhms | |
 Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 24 VDC | 20 ms | 18 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 50 mA | -45 °C | 70 °C | 1 C Form SPDT | CSA UR | Socketable | 0.187 in | Plug In Quick Connect | 10 ms | 470 Ohms | Lighted Indicator |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 24 VDC | 20 ms | 20.4 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 71 mA | -45 °C | 60 °C | 1 C Form SPDT | CSA UR | Socketable | 0.187 in | Plug In Quick Connect | 10 ms | 75 Ohms | |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 120 V | 20 ms | 102 VAC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 14.2 mA | -45 °C | 60 °C | 1 C Form SPDT | CSA UR | Socketable | 0.187 in | Plug In Quick Connect | 10 ms | 2250 Ohms | Lighted Indicator |
Omron Automation and Safety | Silver Alloy | General Purpose | Non Latching | 24 VDC | 20 ms | 20.4 VDC | 10 A | 600 VAC | 28 VDC | 6000 VA | 280 W | 70.8 mA | -45 °C | 60 °C | 1 C Form SPDT | CSA UR | Chassis Mount | 0.187 in | Quick Connect | 10 ms | 75 Ohms |
