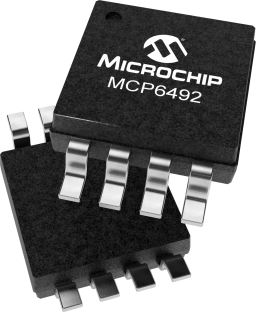

MCP6492 Series

Catalog

DUAL 8 MHZ OP, E TEMP 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Part	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Amplifier Type	Package Width	Package Name	Package Length	Gain Bandwidth Product	Slew Rate	Voltage - Input Offset	Mounting Type	Number of Circuits	Current - Output / Channel	Voltage - Supply Span (Min)	Current - Supply	Current - Input Bias	Voltage - Supply Span (Max)	Package / Case
Microchip Technology MCP6492T-E/MS	125 °C	-40 °C	Rail-to-Rail	General Purpose	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	7.5 MHz	6 V/µs	1.5 mV	Surface Mount	2	15 mA	2.4 V	530 µA	1 pA	5.5 V
Microchip Technology MCP6492T-E/MNY	125 °C	-40 °C	Rail-to-Rail	General Purpose	3 mm	8-TDFN	2 mm	7.5 MHz	6 V/µs	1.5 mV	Surface Mount	2	15 mA	2.4 V	530 µA	1 pA	5.5 V	8-WFDFN Exposed Pad
Microchip Technology MCP6492-E/SN	125 °C	-40 °C	Rail-to-Rail	General Purpose	3.9 mm	8-SOIC	0.154 in	7.5 MHz	6 V/µs	1.5 mV	Surface Mount	2	15 mA	2.4 V	530 µA	1 pA	5.5 V
Microchip Technology MCP6492-E/MS	125 °C	-40 °C	Rail-to-Rail	General Purpose	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	7.5 MHz	6 V/µs	1.5 mV	Surface Mount	2	15 mA	2.4 V	530 µA	1 pA	5.5 V
Microchip Technology MCP6492T-E/SN	125 °C	-40 °C	Rail-to-Rail	General Purpose	3.9 mm	8-SOIC	0.154 in	7.5 MHz	6 V/µs	1.5 mV	Surface Mount	2	15 mA	2.4 V	530 µA	1 pA	5.5 V
