59022-3-S Series

59022-3-S-03-A SENS

Catalog

59022-3-S-03-A SENS

Part	Must Operate (Length)	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Material	Package / Case	Type	Output Type	Termination Style
LITTELFUSE 59022-3-S-02-F	9.3 mm	-40 °C	105 °C	Magnet	Barrel (Plastic Housed) Wire Leads	Reed Switch	SPDT	Wire Leads
LITTELFUSE 59022-3-S-02-A	9.3 mm	-40 °C	105 °C	Magnet	Barrel (Plastic Housed) Wire Leads	Reed Switch	SPDT	Wire Leads

Catalog

59022-3-S-03-A SENS

Description

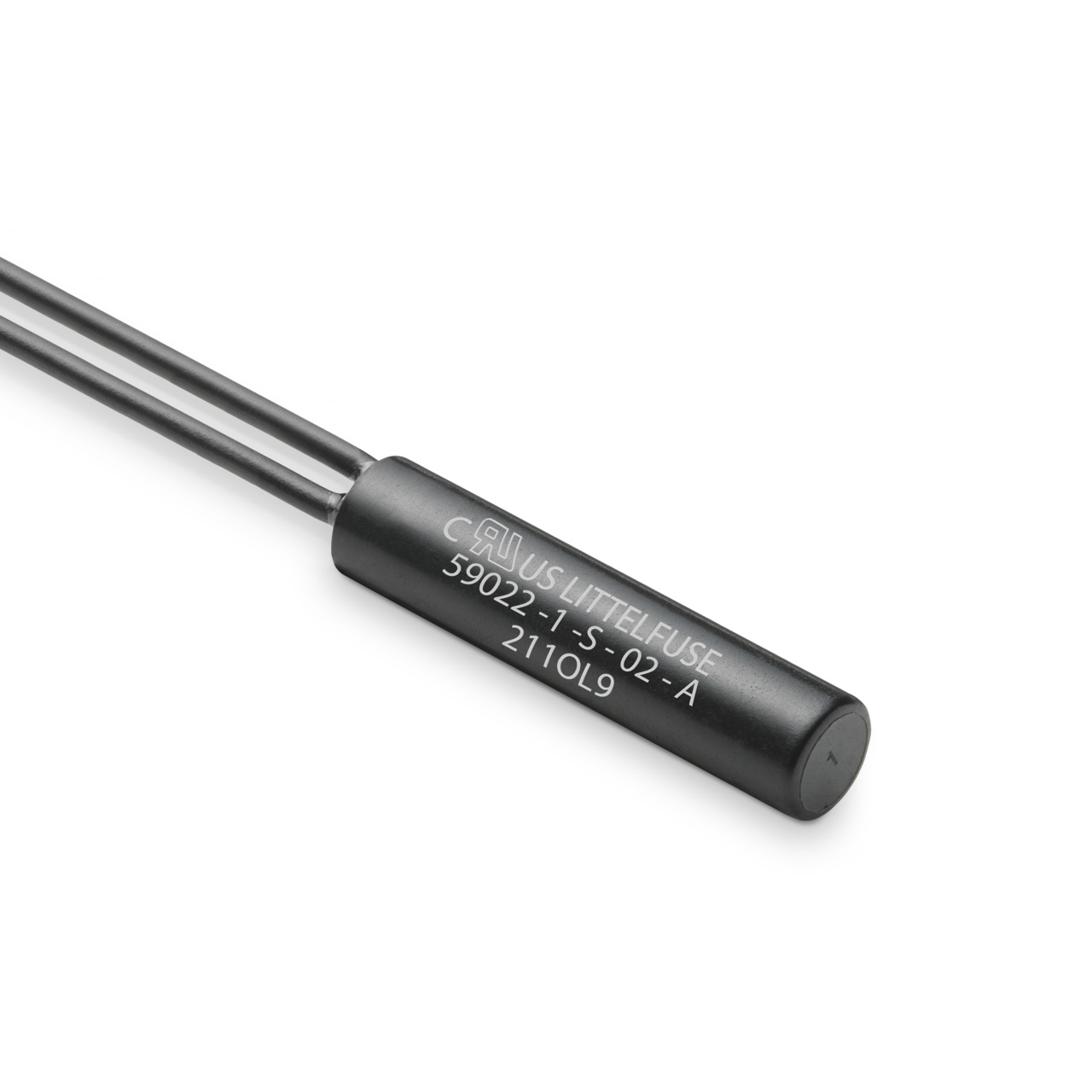

The 59022 Reed Sensor is a small cylindrical reed sensor, 25.4 mm (L) x 5.80 mm (Dia.) (1.00" x 0.228"), with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 200 Vdc at 10 W. The 59022 Reed Sensor is available with a range of sensitivity and cable length options. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications. It functions best with the 57022 actuator.
