Q-020330 Series

Catalog

CBL ASSY BNC-SMA JACK-PLUG 9.8'

Part	2nd Connector	Features	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	Frequency - Max	Length	Style	1st Connector Mounting Type	Overall Impedance	Color	Cable Type	1st Connector	Length (ft)

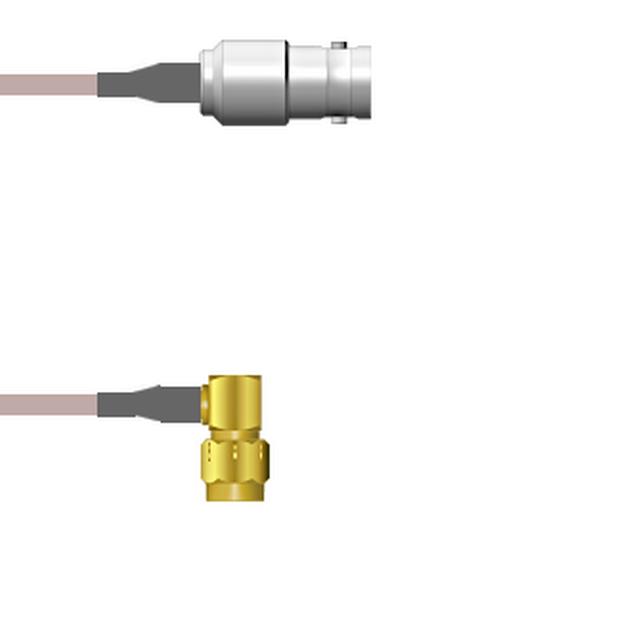

McGill Microwave Systems Q-020330001003M	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	118.1 in	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
McGill Microwave Systems Q-020330001024i	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	24 in	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
McGill Microwave Systems Q-020330001108i	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	9 ft	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
McGill Microwave Systems Q-020330001060i	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	1524 mm	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack	5 ft
McGill Microwave Systems Q-020330001009i	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	228.6 mm	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
McGill Microwave Systems Q-020330001.25M	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	9.843 in	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
McGill Microwave Systems Q-020330001036i	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	36 in	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
McGill Microwave Systems Q-020330001012i	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	12 in	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
McGill Microwave Systems Q-0203300011.5M	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	59.1 in	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack	4.9 ft
McGill Microwave Systems Q-020330001072i	Right Angle SMA Plug	Shielded	Male	Female	Free Hanging (In-Line)	4 GHz	72 in	BNC SMA	Free Hanging (In-Line)	50 Ohms	Copper	178 RG	BNC Jack
