5555764 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

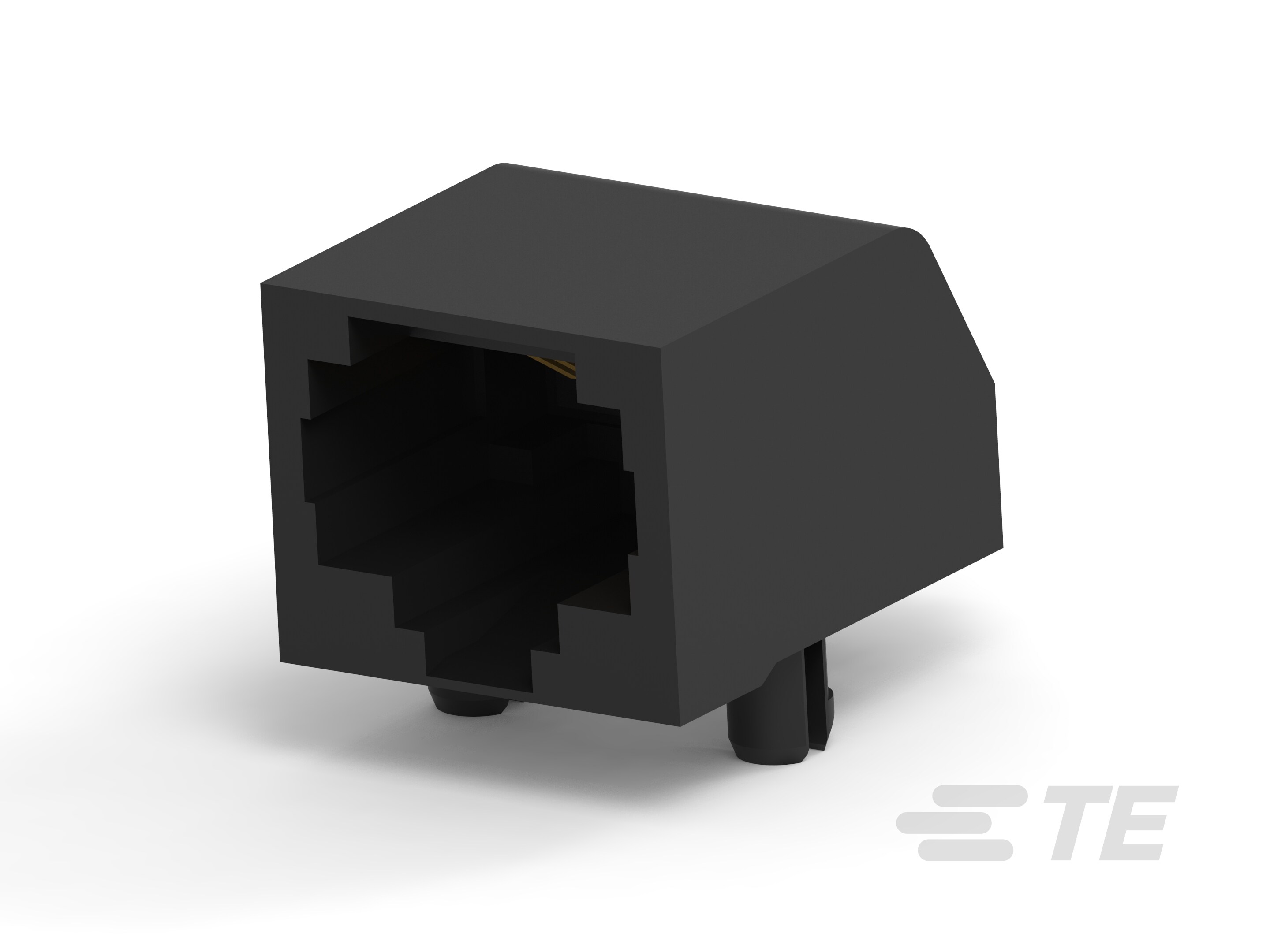

CONN MOD JACK 8P8C R/A UNSHLD
| Part | Contact Finish Thickness | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material | Features | Number of Ports | Contact Material | Number of Rows | LED Color | Shielding | Number of Positions | Connector Type | Number of Contacts | Contact Finish | Tab Direction | Orientation Angle | Orientation Direction | Ratings | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50 µin | -40 °C | 85 °C | Nylon PA Polyamide | Board Lock Solder Retention | 1 | Phosphor Bronze | 1 | Does Not Contain LED | Unshielded | 8 | Ethernet Jack RJ45 | 8 | Gold | Down | 90 ° | Right | Cat3 | Surface Mount | Solder |
 TE Connectivity AMP Connectors | 50 µin | -40 °C | 85 °C | Nylon PA Polyamide | Board Lock Solder Retention | 1 | Phosphor Bronze | 1 | Does Not Contain LED | Unshielded | 8 | Ethernet Jack RJ45 | 8 | Gold | Down | 90 ° | Right | Cat3 | Surface Mount | Solder |
