284931 Series

Catalog

DUOPLUG STD 10 POS POL SEL LOADE

Part	Connector Type	Number of Positions	Color	Features	Cable Termination	Wire Type	Number of Rows	Contact Type	Pitch	Contact Finish	Mounting Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
TE Connectivity AMP Connectors 1-284931-0	Receptacle	10	Blue	4 6 9 Not Loaded Mates to PCB Position 2	IDC	Discrete	1	Female Blade Socket	0.098 in	Tin	Free Hanging (In-Line) Right Angle
TE Connectivity AMP Connectors 284931-6	Receptacle	6	Red	5 Not Loaded Mates to PCB Position 2	IDC	Discrete	1	Female Blade Socket	0.098 in	Tin	Free Hanging (In-Line) Right Angle

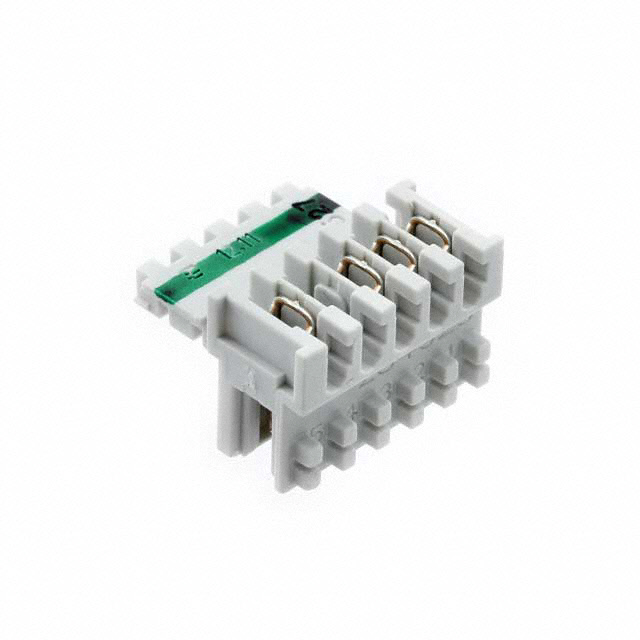

TE Connectivity AMP Connectors 4-284931-5	Receptacle	5		Mates to PCB	Crimp	Discrete	1	Female Blade Socket	0.098 in	Tin	Free Hanging (In-Line) Right Angle	22 AWG	24 AWG
TE Connectivity AMP Connectors 4-284931-3	Receptacle	3	Brown	Mates to PCB Position 2 Not Loaded	IDC	Discrete	1	Female Blade Socket	0.098 in	Tin	Free Hanging (In-Line) Right Angle
TE Connectivity AMP Connectors 284931-7	Receptacle	7	Blue	4 6 Not Loaded Mates to PCB Position 2	IDC	Discrete	1	Female Blade Socket	0.098 in	Tin	Free Hanging (In-Line) Right Angle
TE Connectivity AMP Connectors 1-284931-1	Receptacle	11	Blue	10 Not Loaded 4 6 8 Mates to PCB Position 2	IDC	Discrete	1	Female Blade Socket	0.098 in	Tin	Free Hanging (In-Line) Right Angle
