2381626 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

1.5P 2POS WTB R/A BRD W LATCH TIN NAT

Part	Style	Termination	Pitch - Mating	Mounting Type	Number of Rows	Connector Type	Contact Material	Contact Finish Thickness - Mating	Number of Positions Loaded	Features	Shrouding	Insulation Material	Voltage Rating	Contact Finish - Post	Material Flammability Rating	Contact Type	Number of Positions	Insulation Color	Current Rating	Contact Finish - Mating	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
TE Connectivity AMP Connectors 2381626-2	Board Cable/Wire	Solder	0.059 in	Right Angle Surface Mount	1	Header	Copper Alloy	80 µin	All	Pick and Place Solder Retention	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	50 V	Tin	UL94 V-0	Male Pin	2	Natural	Varies by Wire Gauge	Tin	Locking Ramp	-40 °C	105 °C	Square	80 µin
TE Connectivity AMP Connectors 7-2381626-4	Board Cable/Wire	Solder	0.059 in	Right Angle Surface Mount	1	Header	Copper Alloy		All	Pick and Place Solder Retention	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	50 V	Gold	UL94 V-0	Male Pin	14	Black	Varies by Wire Gauge	Gold	Locking Ramp	-40 °C	105 °C	Square		Flash	Flash	Flash
TE Connectivity AMP Connectors 2381626-5	Board Cable/Wire	Solder	0.059 in	Right Angle Surface Mount	1	Header	Copper Alloy	80 µin	All	Pick and Place Solder Retention	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	50 V	Tin	UL94 V-0	Male Pin	5	Natural	Varies by Wire Gauge	Tin	Locking Ramp	-40 °C	105 °C	Square	80 µin

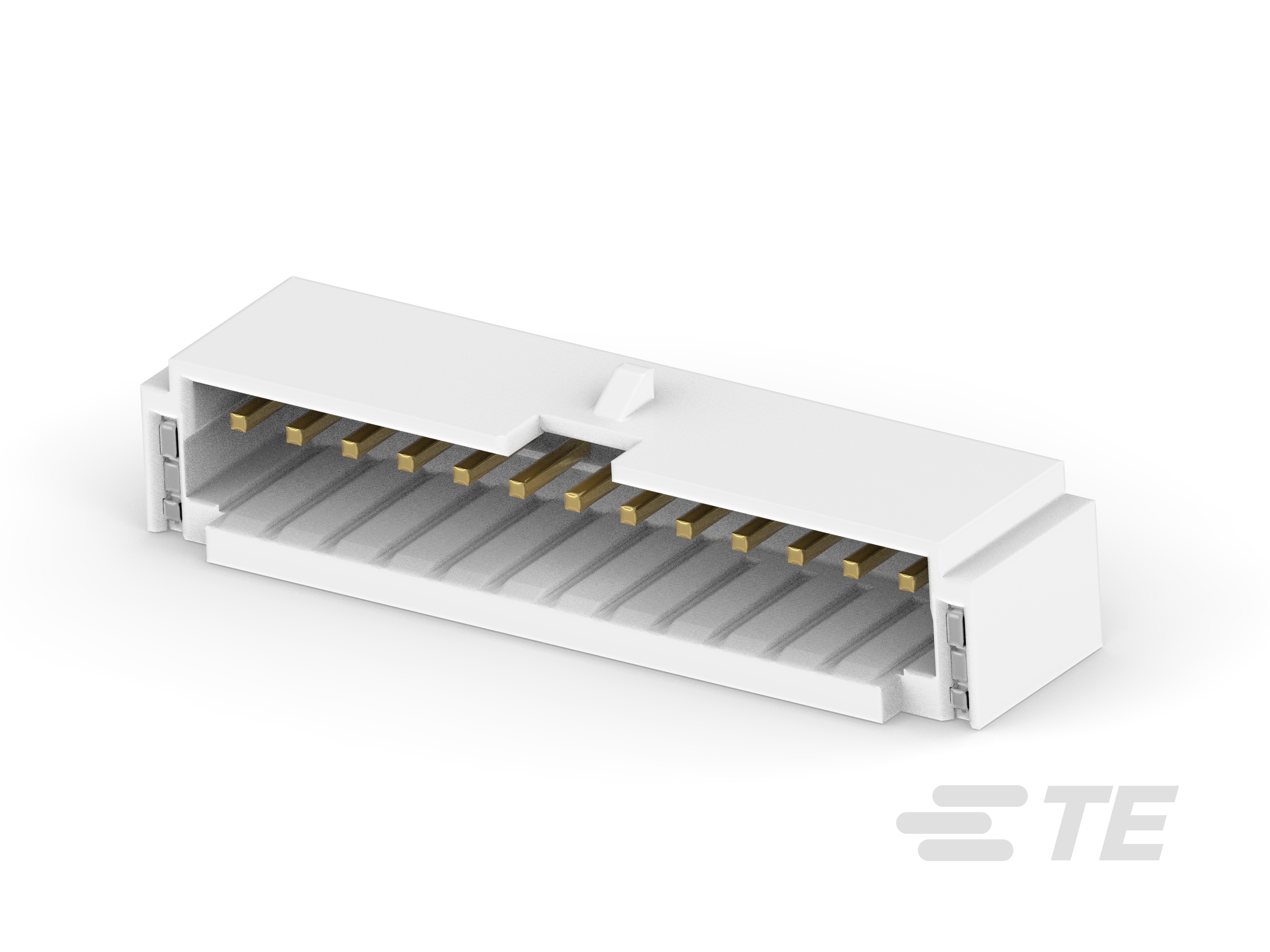

TE Connectivity AMP Connectors 3-2381626-3	Board Cable/Wire	Solder	0.059 in	Right Angle Surface Mount	1	Header	Copper Alloy		All	Pick and Place Solder Retention	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	50 V	Gold	UL94 V-0	Male Pin	13	Natural	Varies by Wire Gauge	Gold	Locking Ramp	-40 °C	105 °C	Square		Flash	Flash	Flash
TE Connectivity AMP Connectors 7-2381626-5	Board Cable/Wire	Solder	0.059 in	Right Angle Surface Mount	1	Header	Copper Alloy		All	Pick and Place Solder Retention	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	50 V	Gold	UL94 V-0	Male Pin	15	Black	Varies by Wire Gauge	Gold	Locking Ramp	-40 °C	105 °C	Square		Flash	Flash	Flash
TE Connectivity AMP Connectors 2381626-3	Board Cable/Wire	Solder	0.059 in	Right Angle Surface Mount	1	Header	Copper Alloy	80 µin	All	Pick and Place Solder Retention	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	50 V	Tin	UL94 V-0	Male Pin	3	Natural	Varies by Wire Gauge	Tin	Locking Ramp	-40 °C	105 °C	Square	80 µin
