214092 Series

OneBlade Receptacle Housing, 1.00mm Pitch, Single Row, Friction Lock, 8 Circuits, Black

Manufacturer: Molex

Catalog

OneBlade Receptacle Housing, 1.00mm Pitch, Single Row, Friction Lock, 8 Circuits, Black

Part	Note	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Contact Type	Connector Type	Insulation Material	Contact Termination	Fastening Type	Number of Rows	Number of Positions	Color	Mounting Type
Molex 2140922030	Contacts Not Included	-40 °C	105 °C	0.039 in	Female Socket	Receptacle	Glass Filled Nylon Polyamide (PA)	Crimp	Locking Ramp	1	3	Black	Free Hanging (In-Line)
Molex 2140922050		-40 °C	105 °C	0.039 in	Female Socket	Receptacle	Glass Filled Nylon Polyamide (PA)	Crimp	Locking Ramp	1	5	Black	Free Hanging (In-Line)
Molex 2140922040	Contacts Not Included	-40 °C	105 °C	0.039 in	Female Socket	Receptacle	Glass Filled Nylon Polyamide (PA)	Crimp	Locking Ramp	1	4	Black	Free Hanging (In-Line)
Molex 2140922070	Contacts Not Included	-40 °C	105 °C	0.039 in	Female Socket	Receptacle	Glass Filled Nylon Polyamide (PA)	Crimp	Locking Ramp	1	7	Black	Free Hanging (In-Line)
Molex 2140922020		-40 °C	105 °C	0.039 in	Female Socket	Receptacle	Glass Filled Nylon Polyamide (PA)	Crimp	Locking Ramp	1	2	Black	Free Hanging (In-Line)
Molex 2140922080		-40 °C	105 °C	0.039 in	Female Socket	Receptacle	Glass Filled Nylon Polyamide (PA)	Crimp	Locking Ramp	1	8	Black	Free Hanging (In-Line)

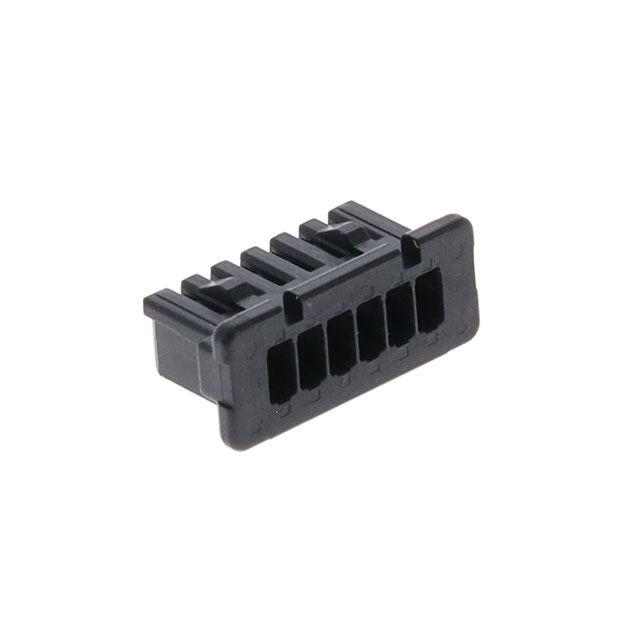

Molex 2140922060	Contacts Not Included	-40 °C	105 °C	0.039 in	Female Socket	Receptacle	Glass Filled Nylon Polyamide (PA)	Crimp	Locking Ramp	1	6	Black	Free Hanging (In-Line)

OneBlade Receptacle Housing, 1.00mm Pitch, Single Row, Friction Lock, 8 Circuits, Black
