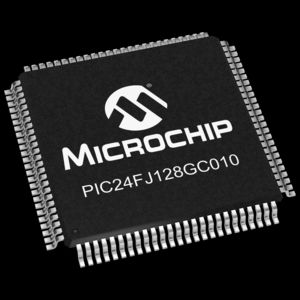

PIC24FJ128GC010 Series

Low Power MCU w/ Integrated Analog, LCD & USB

Catalog

Low Power MCU w/ Integrated Analog, LCD & USB

Part	Program Memory Type	Program Memory Size	Program Memory Depth	Program Memory Width	Connectivity	Mounting Type	Package Length	Package Name	Package Width	Core Size (Bit Width)	Package / Case	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Speed	Oscillator Type	A/D Resolution (bits)	A/D Channels	D/A Channels	D/A Resolution (bits)	Number of I/O	Peripherals	RAM Size Width	RAM Size Depth
Microchip Technology PIC24FJ128GC010T-I/BG	FLASH	128 KB	43 K	24	I2C IrDA LINbus PMP SPI UART USART USB OTG	Surface Mount	10 mm	121-TFBGA	10 mm	16 Bit	121-TFBGA	PIC	85 °C	-40 °C	3.6 V	2 V	32 MHz	Internal	12 bit 16 bit	2 count 50 count	2 count	10 bit	85	Brown-out Detect LCD LVD POR PWM Reset WDT	8 bit	8 K
Microchip Technology PIC24FJ128GC010T-I/PT	FLASH	128 KB	43 K	24	I2C IrDA LINbus PMP SPI UART USART USB OTG	Surface Mount	12 mm	100-TQFP	12 mm	16 Bit	100-TQFP	PIC	85 °C	-40 °C	3.6 V	2 V	32 MHz	Internal	12 bit 16 bit	2 count 50 count	2 count	10 bit	85	Brown-out Detect LCD LVD POR PWM Reset WDT	8 bit	8 K
Microchip Technology PIC24FJ128GC010-I/PT	FLASH	128 KB	43 K	24	I2C IrDA LINbus PMP SPI UART USART USB OTG	Surface Mount	12 mm	100-TQFP	12 mm	16 Bit	100-TQFP	PIC	85 °C	-40 °C	3.6 V	2 V	32 MHz	Internal	12 bit 16 bit	2 count 50 count	2 count	10 bit	85	Brown-out Detect LCD LVD POR PWM Reset WDT	8 bit	8 K
Microchip Technology PIC24FJ128GC010-I/BG	FLASH	128 KB	43 K	24	I2C IrDA LINbus PMP SPI UART USART USB OTG	Surface Mount	10 mm	121-TFBGA	10 mm	16 Bit	121-TFBGA	PIC	85 °C	-40 °C	3.6 V	2 V	32 MHz	Internal	12 bit 16 bit	2 count 50 count	2 count	10 bit	85	Brown-out Detect LCD LVD POR PWM Reset WDT	8 bit	8 K

Catalog

Low Power MCU w/ Integrated Analog, LCD & USB

Description

PIC24F 16-bit Flash Microcontroller with low noise, high throughput, integrated Intelligent Analog ideal for portable & industrial applications. Segmented LCD, USB, and eXtreme Low Power consumption enable small footprint and long battery life.
