SDL-102 Series

Catalog

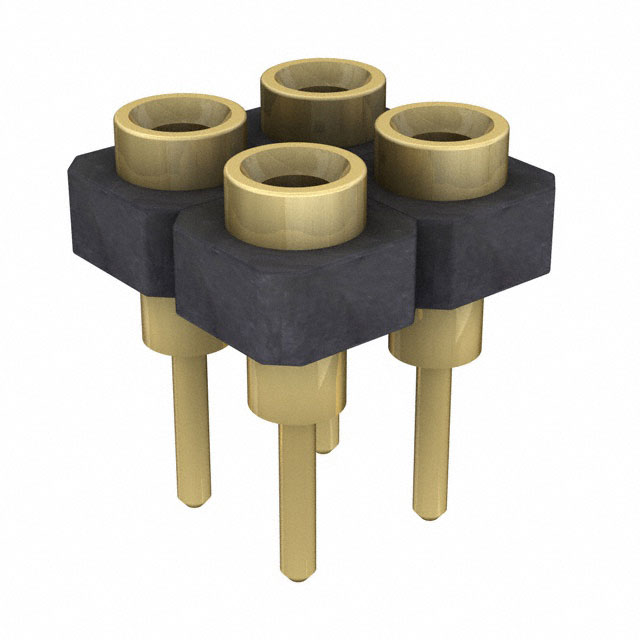

CONN SOCKET STRIP SKT 4 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Part	Termination	Number of Rows	Insulation Material	Contact Finish - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Type	Connector Type	Number of Positions	Contact Material	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SDL-102-G-19	Solder	2	Liquid Crystal Polymer (LCP)	Gold	Black	-55 °C	125 °C	Through Hole	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	2.08 mm	0.082 "	All	Female Socket	Receptacle	4	Beryllium Copper	Gold	Circular	30 Áin	0.76 Ám	10 çin	0.25 çm	2.1 mm	0.083 "
Samtec Inc. SDL-102-T-11	Solder	2	Liquid Crystal Polymer (LCP)	Gold	Black	-55 °C	125 °C	Through Hole	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in			All	Female Socket	Receptacle	4	Beryllium Copper		Circular	30 Áin	0.76 Ám			3.35 mm	0.132 in	0.108 in	2.75 mm
Samtec Inc. SDL-102-T-10	Solder	2	Liquid Crystal Polymer (LCP)	Gold	Black	-55 °C	125 °C	Through Hole	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in			All	Female Socket	Receptacle	4	Beryllium Copper		Circular	30 Áin	0.76 Ám			3.1 mm	0.122 in	0.108 in	2.75 mm
Samtec Inc. SDL-102-T-12	Solder	2	Liquid Crystal Polymer (LCP)	Gold	Black	-55 °C	125 °C	Through Hole	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in	2.41 mm	0.095 in	All	Female Socket	Receptacle	4	Beryllium Copper		Circular	30 Áin	0.76 Ám							0.095 in	2.41 mm
Samtec Inc. SDL-102-G-10	Solder	2	Liquid Crystal Polymer (LCP)	Gold	Black	-55 °C	125 °C	Through Hole	Push-Pull	0.1 in	2.54 mm	2.54 mm	0.1 in			All	Female Socket	Receptacle	4	Beryllium Copper	Gold	Circular	30 Áin	0.76 Ám	10 çin	0.25 çm	3.1 mm	0.122 in	0.108 in	2.75 mm
