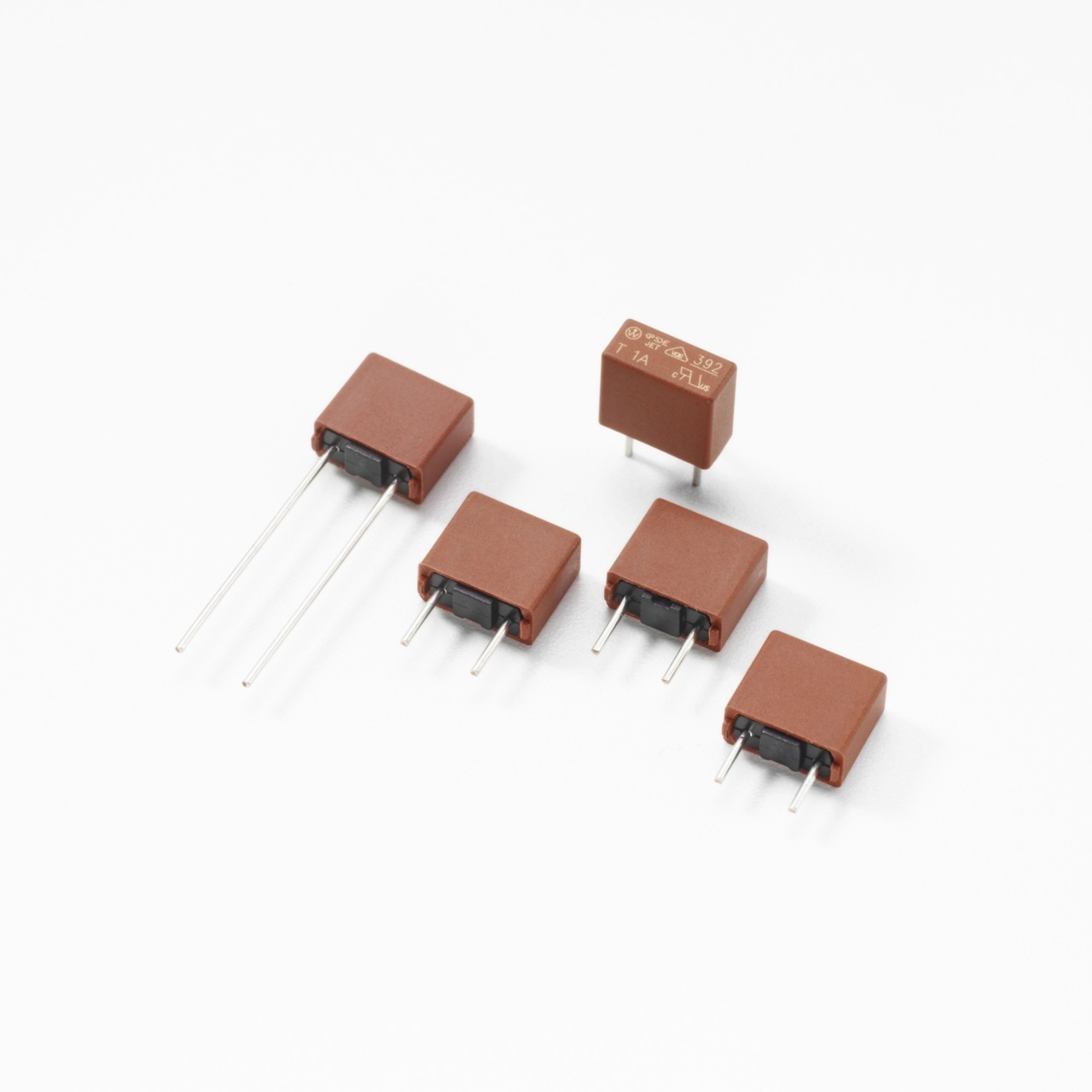

FUSE 250V IEC TL TE5 LL AMMO 1.6A
Description
AI
TE5 Fuse, Time-Lag type, 250V rated, designed in accordance to IEC 60127-3.
Beta
⌘K
FUSE 250V IEC TL TE5 LL AMMO 1.6A
FUSE 250V IEC TL TE5 LL AMMO 1.6A
| Part | Response Time | Approval Agency | Voltage Rating - AC | Operating Temperature (Max) | Operating Temperature (Min) | Breaking Capacity | Fuse Type | Current Rating | Package / Case | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Melting I²t | Mounting Type | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Slow Blow | CQC cULus KC PSE/JET SEMKO VDE | 250 V | 125 °C | -40 °C | 25 A | Board Mount (Cartridge Style Excluded) | 1.6 A | Box Radial | 0.335 in | 0.315 in | 0.157 in | 13.5 | Through Hole | 40 mOhms |
