382712 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

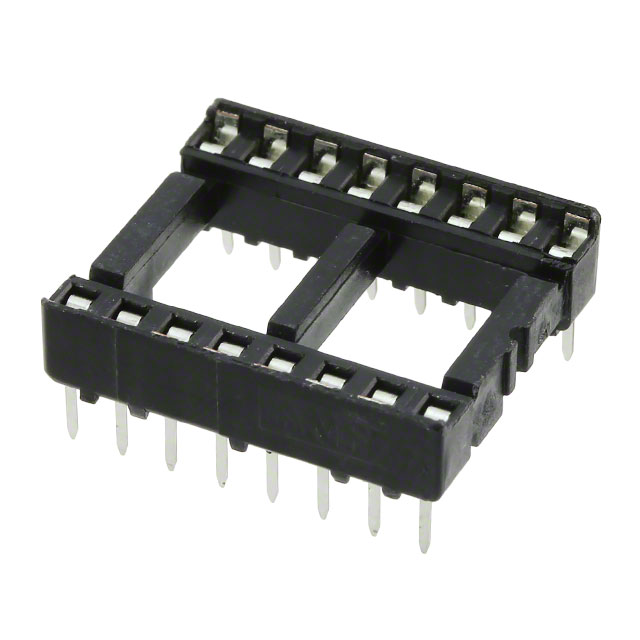

CONN IC DIP SOCKET 16POS TIN
| Part | Material Flammability Rating | Termination Post Length | Contact Resistance | Features | Pitch - Mating | Contact Material - Post | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material | Mounting Type | Grid Rows | Number of Positions or Pins (Grid) | Grid Columns | Contact Material - Mating | Contact Finish - Post | Contact Finish - Mating | Row Spacing | Type | Pitch - Post | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 0.128 in | 30 mOhm | Open Frame | 0.1 in | Beryllium Copper | -55 °C | 105 °C | Glass Filled Thermoplastic | Through Hole | 2 | 16 | 8 | Beryllium Copper | Tin | Tin | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | 0.1 in | Solder |
