4149 Series

Catalog

SPADE .190(4.82 MM)12-10 AWG TPBR

Part	Tongue Inside Opening	Length - Ring Center to Termination	Length - Termination	Contact Finish	Width - Outer Edges	Length - Overall	Terminal Type	Contact Material	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Termination	Mounting Type

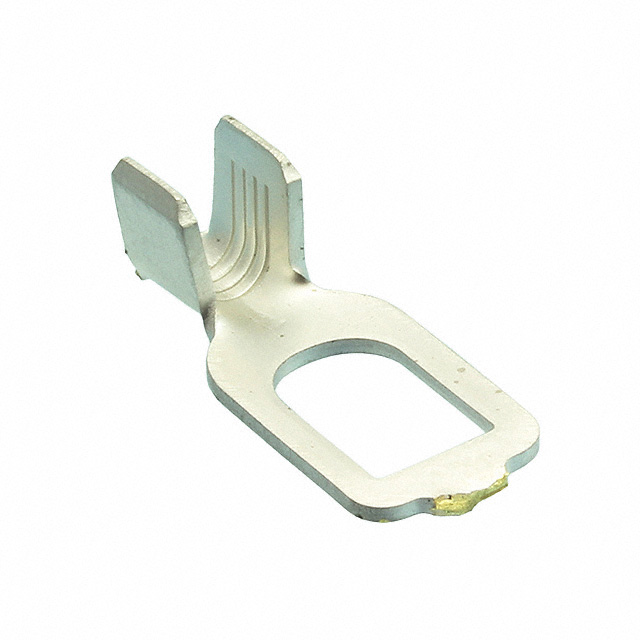

TE Connectivity AMP Connectors 41495	0.197 in	0.235 in	0.215 in	Tin	0.312 in	0.688 in	Standard	Brass	Non-Insulated	12 AWG	10 AWG	10 Stud	Crimp	Free Hanging (In-Line)
