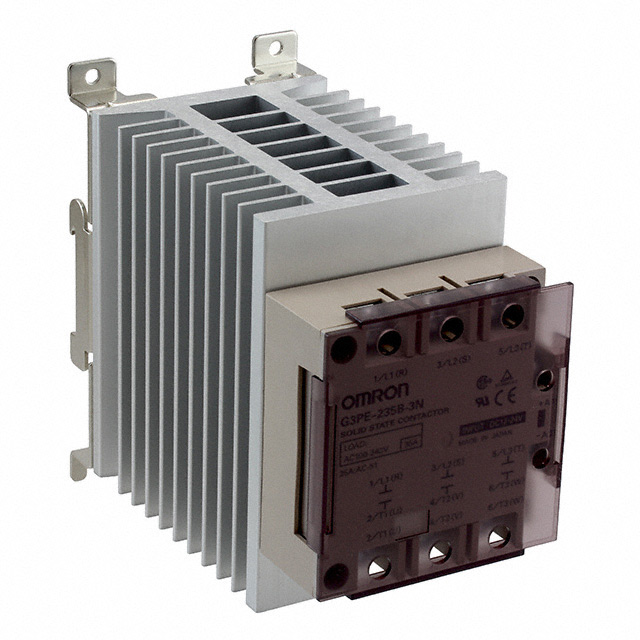

G3PE-235 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K

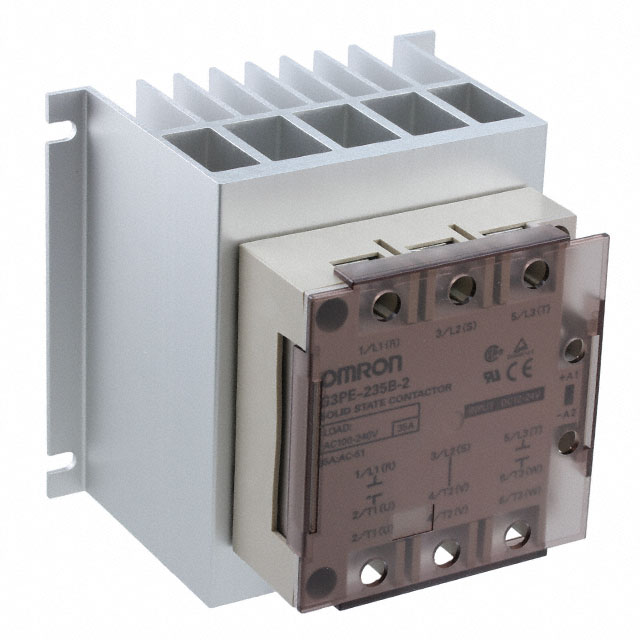

SSR RELAY SPST-NO 35A 100-240V
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (DC) Maximum | Voltage - Input (DC) Minimum | Load Current | Package / Case | Mounting Type | Termination Style | Approval Agency | Circuit | Voltage - Load (Max) | Voltage - Load (Min) | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 100 °C | -30 °C | 24 V | 12 V | 35 A | SSR with Integrated Heat Sink | DIN Rail | Screw Terminal | CE CSA TUV UR | SPST-NO (1 Form A) | 240 V | 100 V | AC Zero Cross |
 Omron Automation and Safety | 24 V | 12 V | 35 A | SSR with Integrated Heat Sink | Chassis Mount DIN Rail | Screw Terminal | 3PST-NO (3 Form A) | 240 V | 100 V | AC Zero Cross | |||
 Omron Automation and Safety | 24 V | 12 V | 35 A | SSR with Integrated Heat Sink | Chassis Mount | Screw Terminal | DPST-NO (2 Form A) | 240 V | 100 V | AC Zero Cross |
