EVQ-5P Series

Catalog

TACTILE SWITCH, EQV5PN SERIES, TOP ACTUATED, SURFACE MOUNT, RECTANGULAR BUTTON, 240 GF

Part	Switch Travel	Mechanical Life (Cycles)	Actuator Orientation	Mounting Type	Switch Function	Termination Style	Circuit	Actuator Type	Operating Force	Outline Width	Outline Length	Contact Rating (Current)	Actuator Height off PCB (Vertical)	Illumination	Operating Temperature (Max)	Operating Temperature (Min)

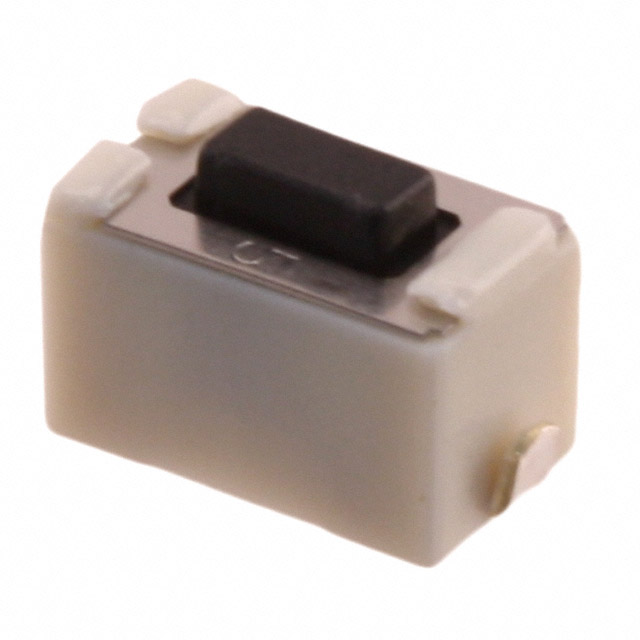

Panasonic Electronic Components EVQ-5PN04K	0.25 mm	30000 Cycles	Top Actuated	Surface Mount	Off-Mom	J Lead	SPST-NO	Standard	240 gf	3.5 mm	6 mm	0.05 A	4.3 mm	Non-Illuminated	85 °C	-30 °C
Panasonic Electronic Components EVQ-5PLA08	0.25 mm	200000 Cycles	Top Actuated	Surface Mount	Off-Mom	J Lead	SPST-NO	Without	357 gf	4.9 mm	4.9 mm	0.02 A	0.8 mm	Non-Illuminated	70 °C	-20 °C
Panasonic Electronic Components EVQ-5PN05K	0.25 mm	30000 Cycles	Top Actuated	Surface Mount	Off-Mom	J Lead	SPST-NO	Standard	240 gf	3.5 mm	6 mm	0.05 A	5 mm	Non-Illuminated	85 °C	-30 °C
