282817 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLOCK HDR 4POS 90DEG 10MM
| Part | Contact Tail Length | Housing Material | Contact Material | Material Flammability Rating | Termination Style | Current - UL | Number of Positions | Type | Number of Levels | Voltage - UL | Operating Temperature (Min) | Operating Temperature (Max) | Color | Positions Per Level | Header Orientation Angle | Header Orientation | Pitch | Mounting Type | Contact Mating Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 4 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 4 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |
TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 11 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 11 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |

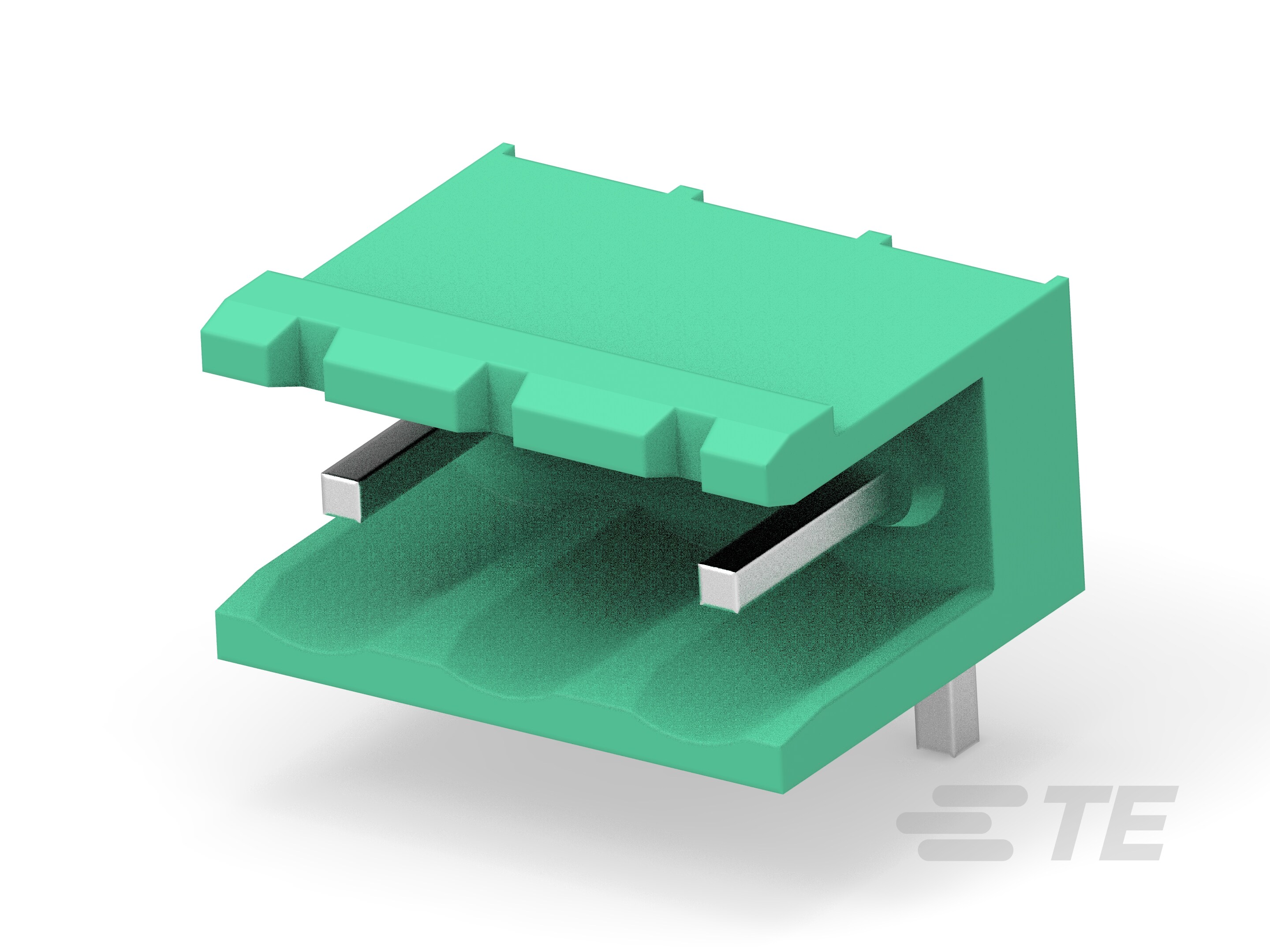

 TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 2 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 2 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |
TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 9 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 9 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |
 TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 10 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 10 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |

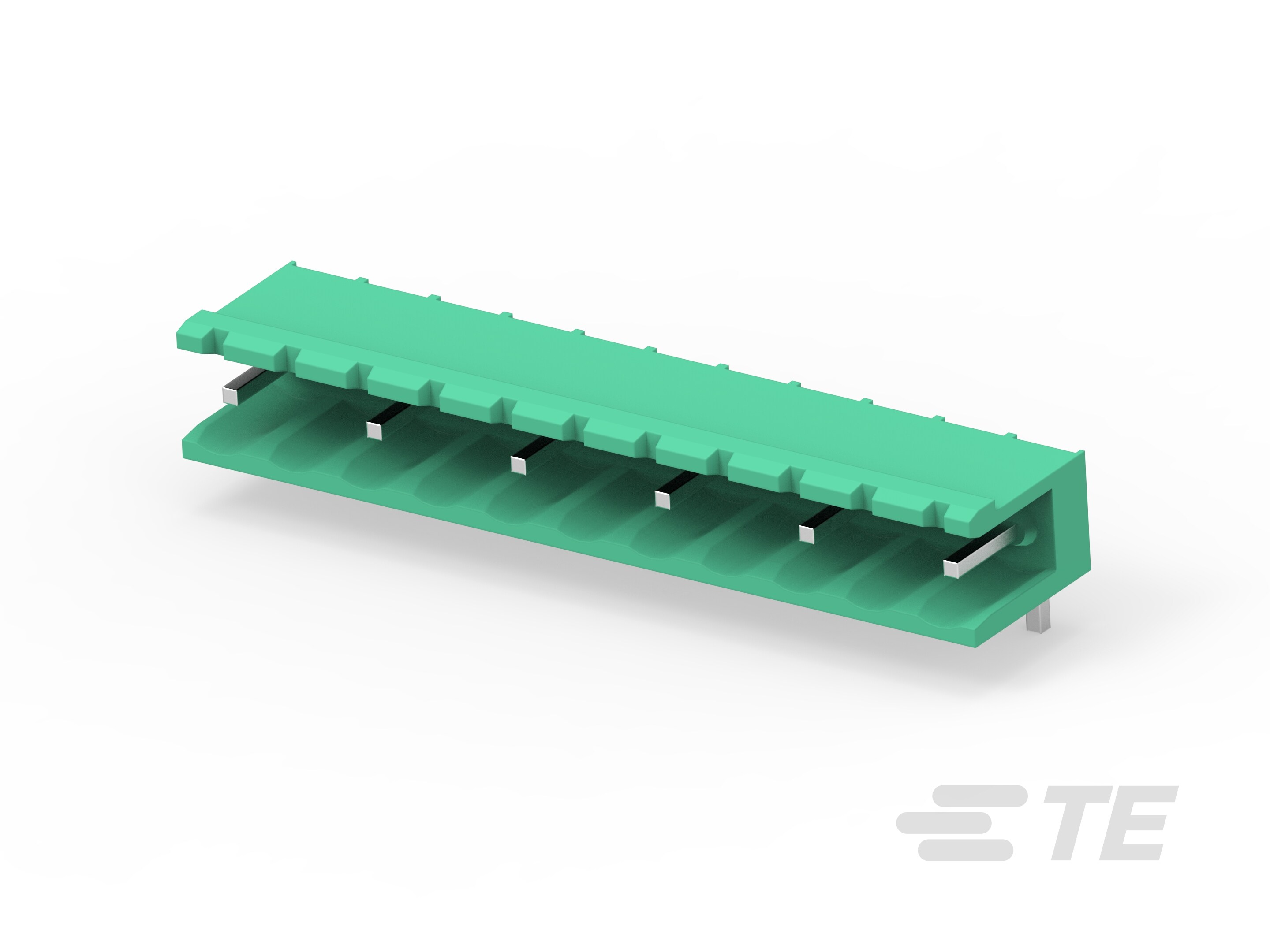

 TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 6 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 6 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |
TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 8 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 8 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |

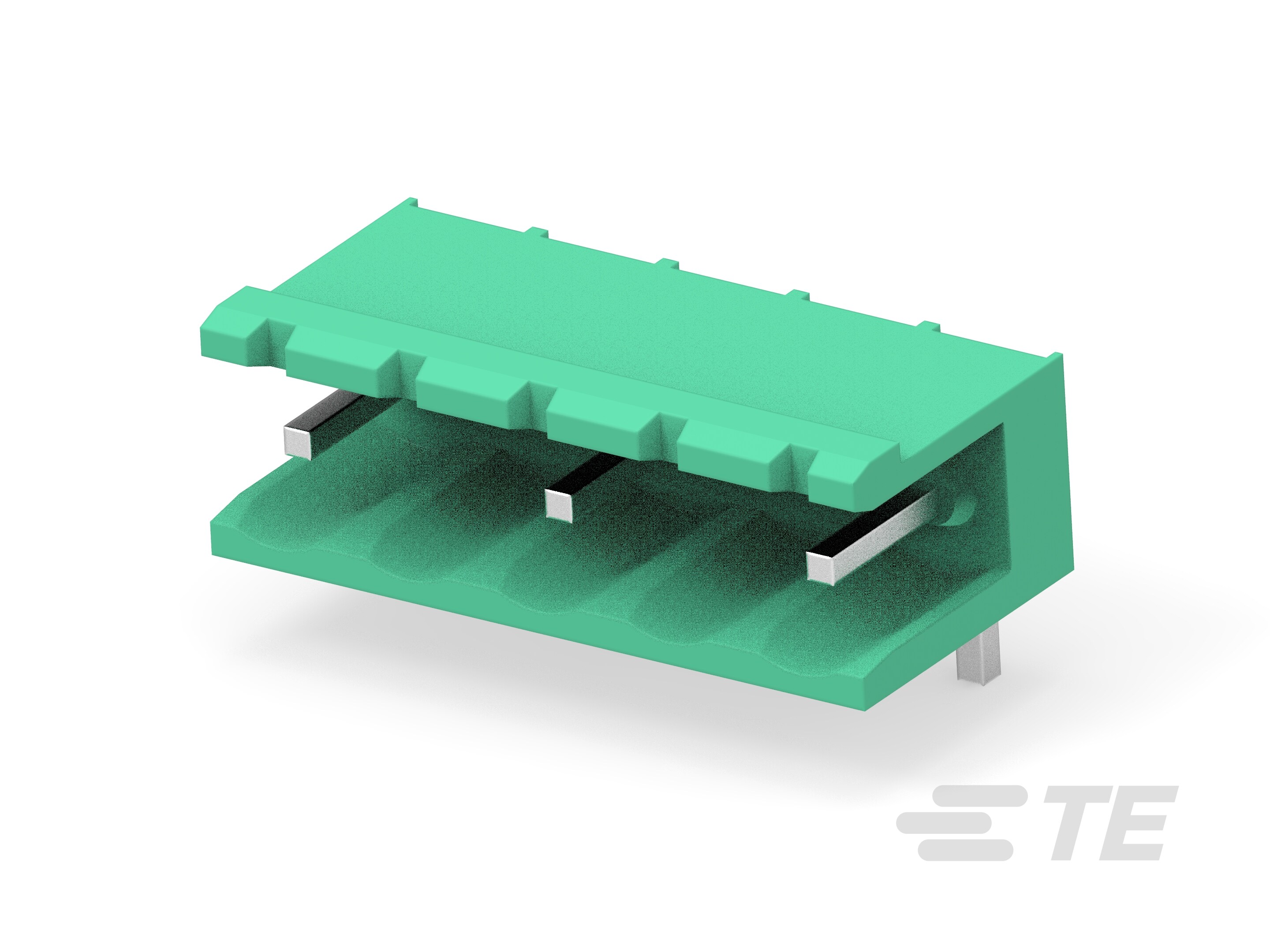

 TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 3 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 3 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |

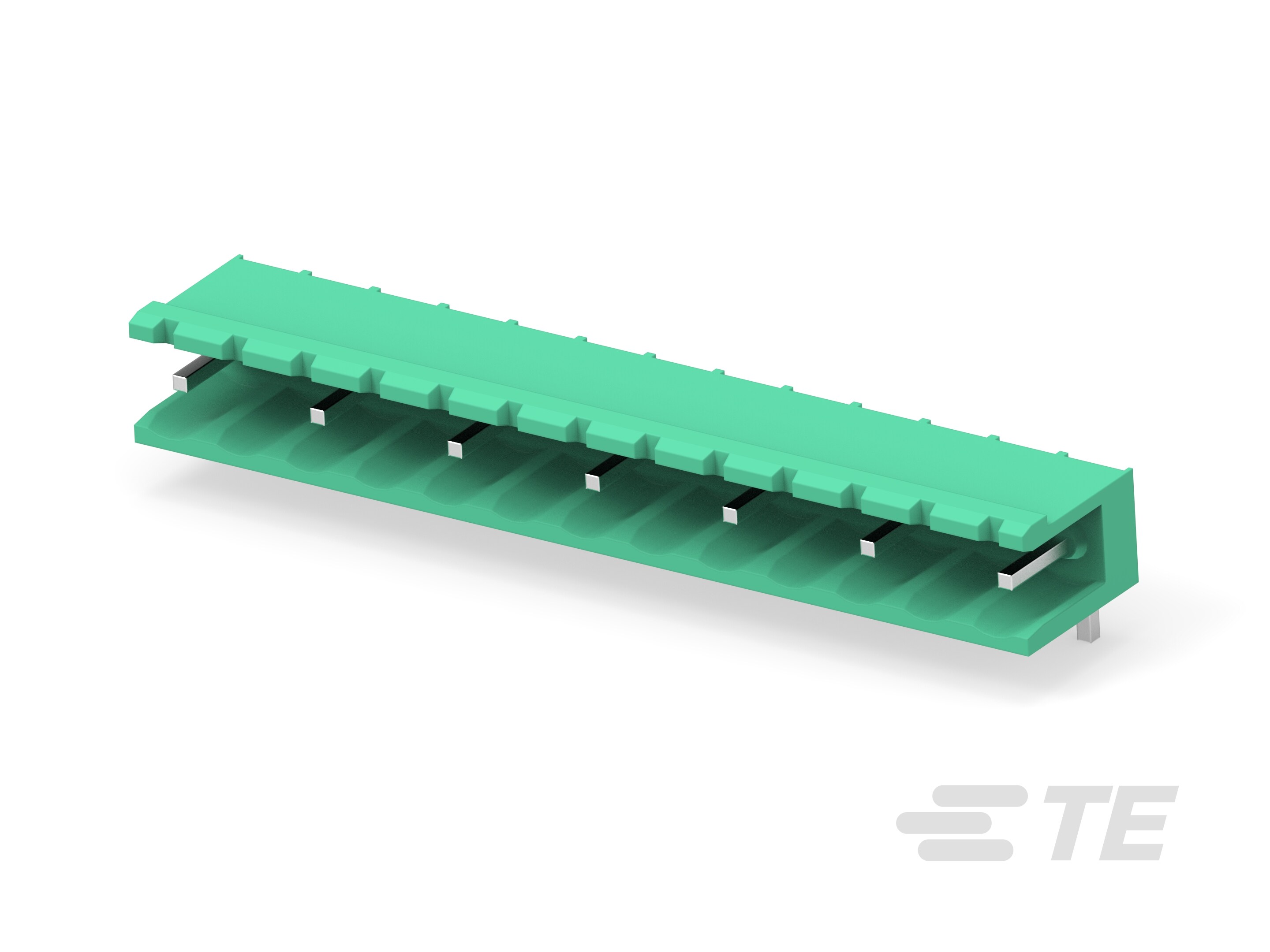

 TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 7 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 7 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |
TE Connectivity AMP Connectors | 0.138 in | Nylon 6/6 PA66 Polyamide | Copper Alloy | UL94 V-0 | Solder | 15 A | 5 | Header Male Pins Shrouded (2 Side) | 1 | 600 V | -40 °C | 110 °C | Green | 5 | 90 ° | Right Angle | 0.394 in | Through Hole | Tin |
