55831 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

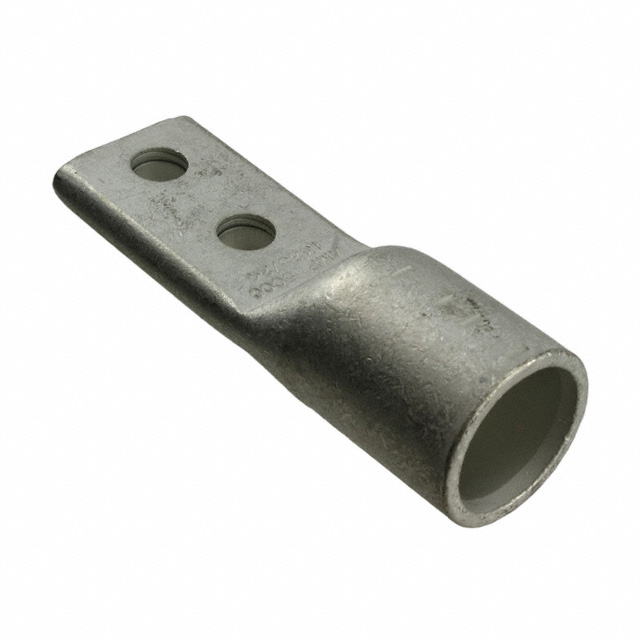

CONN TERM RECT 500 MCM #3/8
| Part | Diameter - Barrel ID | Diameter - Ring ID | Diameter - Barrel OD | Contact Material | Contact Finish | Width - Outer Edges | Termination | Tab Thickness | Length - Overall | Terminal Style | Wire Gauge (MCM) | Mounting Type | Stud/Tab Size | Stud/Tab Size | Terminal Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.03 in | 0.406 in | 1.32 in | Copper | Tin | 1.34 in | Barrel Crimb | 0.42 in | 4.2 in | Two Stud Holes | 500 MCM | Free Hanging (In-Line) | 0.375 in | 3 Stud 8 Stud | Standard | Non-Insulated |
