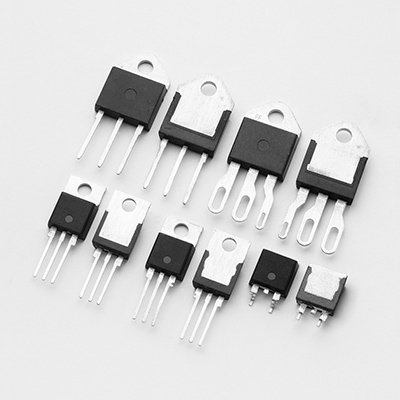

HQ6025KH5TP Series

HT Altnstr 600V 25A 50-50-50 mA TO218Iso

Catalog

HT Altnstr 600V 25A 50-50-50 mA TO218Iso

Part	Operating Temperature (Min)	Operating Temperature (Max)	Current - On State (It (RMS)) (Max)	Voltage - Off State	Package Name	Triac Type	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge Type	Current - Non Rep. Surge (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Package / Case	Current - Hold (Ih) (Max)	Configuration	Current - Gate Trigger (Igt) (Max)	Mounting Type
LITTELFUSE HQ6025KH5TP	-40 °C	150 °C	25 A	600 V	TO-218 Isolated Tab	Alternistor - Snubberless	50Hz 60Hz	Itsm	250 A 300 A	1.3 V	TO-218-3 Isolated Tab TO-218AC	80 mA	Single	50 mA	Through Hole

Catalog

HT Altnstr 600V 25A 50-50-50 mA TO218Iso

Description

25 Amp bi-directional Alternistor Triac is designed for AC switching and phase control applications requiring a higher temperature environment. Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.
