GLL Series

Catalog

SWITCH LIMIT N.O./N.C. SPDT TOP ROLLER PLUNGER SCREW MOUNT 6A 600VAC 250VDC 9.8N LINEAR CONDUIT

Part	Pretravel (Length)	Mounting Type	Voltage Rating - DC	Differential Travel (Linear)	Operating Position (Length)	Overtravel (Linear)	Release Force	Actuator Type	Voltage Rating - AC	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Termination Style	Mechanical Life (Cycles)	Circuit	Switch Function	Current Rating	Operating Force	Differential Travel (Angle)	Overtravel (Angle)	Operating Position (Angle)	Pretravel (Angle)	Features

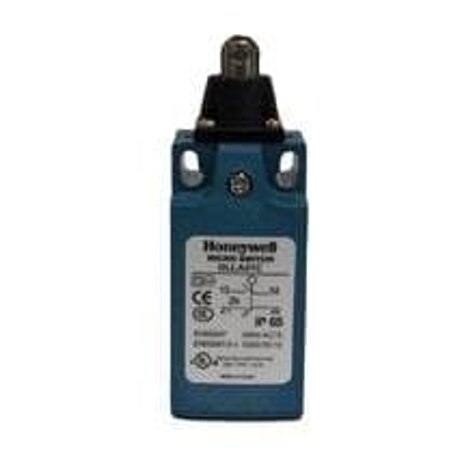

Honeywell Sensing and Productivity Solutions GLLC01C	0.11 in	Chassis Mount	250 VDC	0.06 in	1.13 in	0.118 in	153 gf	Roller Plunger	300 V	-10 °C	80 °C	Dust Tight Water Resistant	IP66	Screw Terminal	5000000 Cycles	SPDT	On-Mom	10 A	1 kgf
Honeywell Sensing and Productivity Solutions GLLC04D	0.138 in	Chassis Mount	250 VDC	0.06 in	0.63 in	0.175 in	153 gf	Lever Roller	300 V	-10 °C	80 °C	Dust Tight Water Resistant	IP66	Screw Terminal	5000000 Cycles	SPDT (MBB)	On-Mom	10 A	510 gf
Honeywell Sensing and Productivity Solutions GLLA01A1B		Chassis Mount	250 VDC				2.039 gfm	Roller Side Rotary	300 V	-10 °C	80 °C	Dust Tight Water Resistant	IP66	Screw Terminal	5000000 Cycles	SPDT	On-Mom	10 A	12 gfm	18 °	40 °	30 °	30 °	Metal Roller
