2337939 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

STANDARD CARD EDGE CONNECTORS PCIE GEN4 CON,SMT, 64P,GF,MYLAR,ST

Part	Read Out	Number of Positions	Pitch	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features	Number of Rows	Card Type	Color	Gender	Termination	Mounting Type	Contact Finish	Number of Bay	Contact Type	Contact Material	Card Thickness	Material - Insulation	Operating Temperature (Min)	Operating Temperature (Max)
TE Connectivity AMP Connectors 3-2337939-2	Dual	11 64	0.039 in	0	Flash	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	21	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 2337939-4	Dual	11 164	0.039 in	0	Flash	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	71	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer

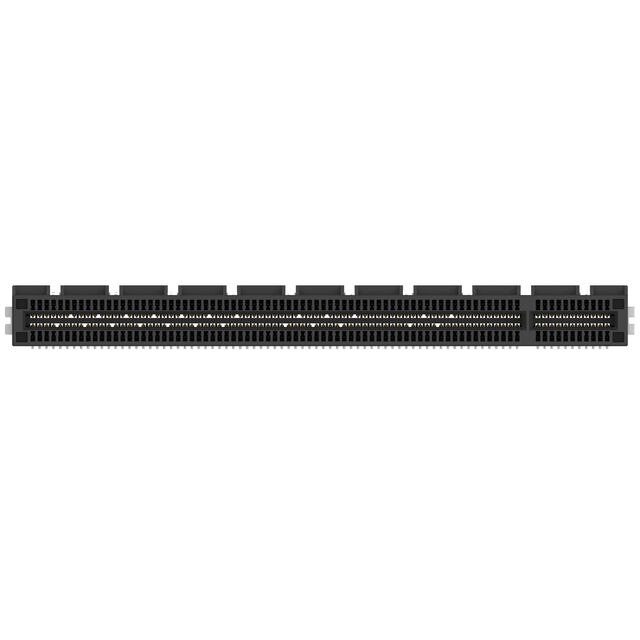

TE Connectivity AMP Connectors 6-2337939-4	Dual	11 164	0.039 in	15 µin			Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	71	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 7-2337939-4	Dual	11 164	0.039 in	30 µin			Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	71	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 6-2337939-3	Dual	11 98	0.039 in	15 µin			Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	38	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer

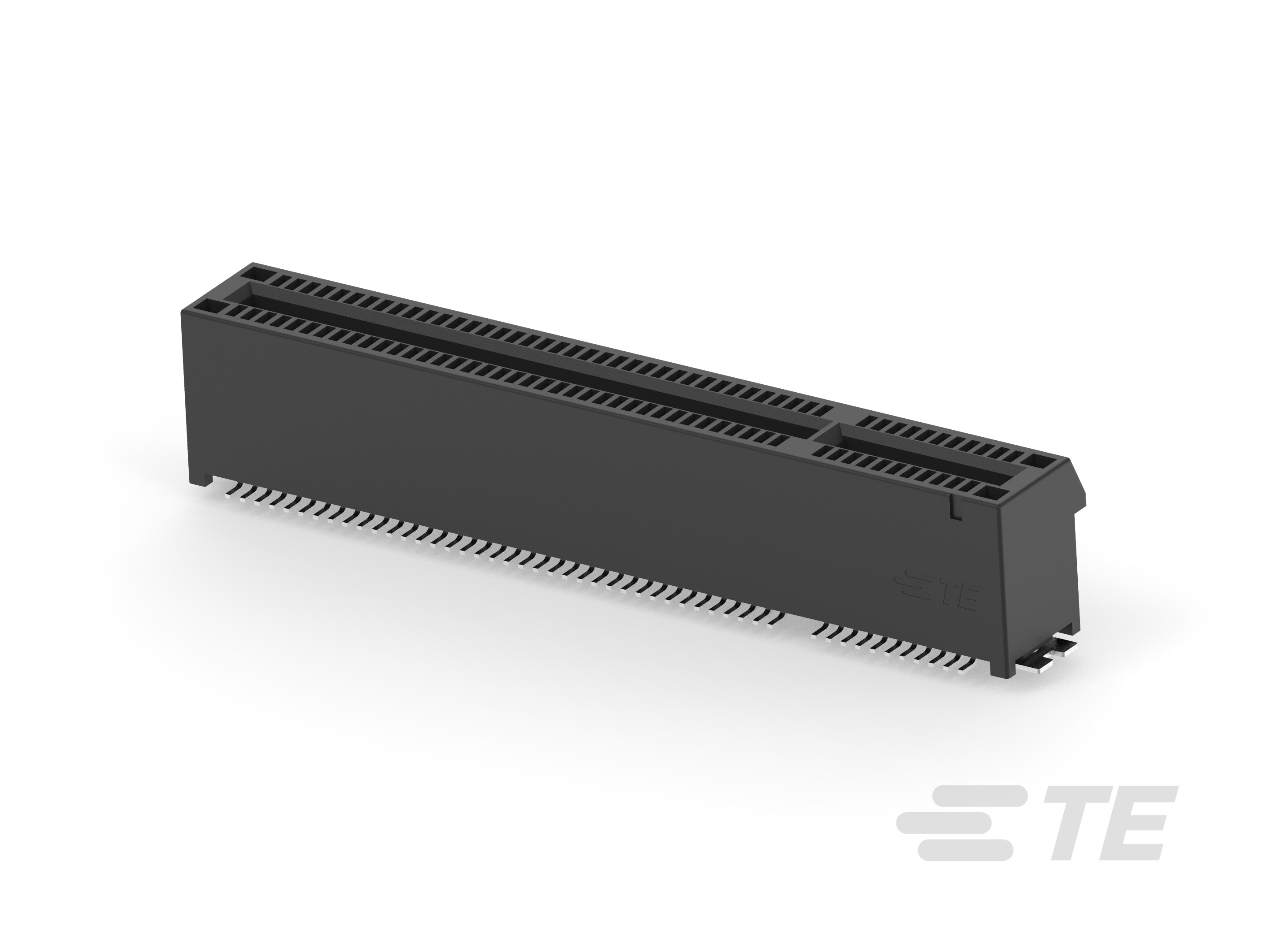

TE Connectivity AMP Connectors 2-2337939-3	Dual	11 98	0.039 in	30 µin			Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	38	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer

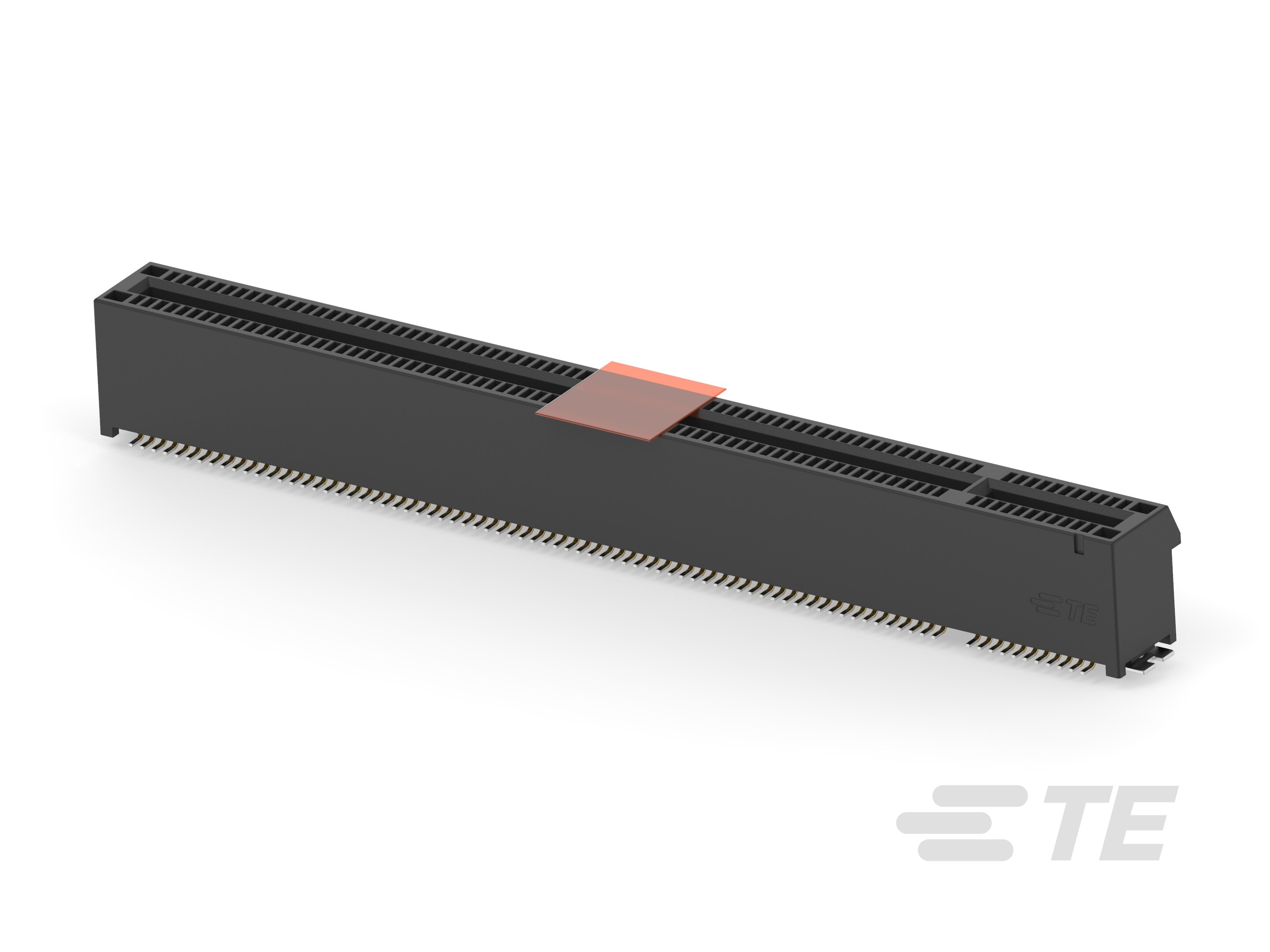

TE Connectivity AMP Connectors 3-2337939-4	Dual	11 164	0.039 in	0	Flash	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	71	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 2337939-3	Dual	11 98	0.039 in	0	Flash	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	38	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 3-2337939-8	Dual	11 164	0.039 in	0	Flash	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	71	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer	-40 °C	85 °C
TE Connectivity AMP Connectors 6-2337939-2	Dual	11 64	0.039 in	15 µin			Board Guide Locking Ramp Pick and Place Solder Retention	2	PCI Express™	Black	Female	Solder	Surface Mount	Gold	21	Cantilever	Copper Alloy	0.062 in	LCP Liquid Crystal Polymer
