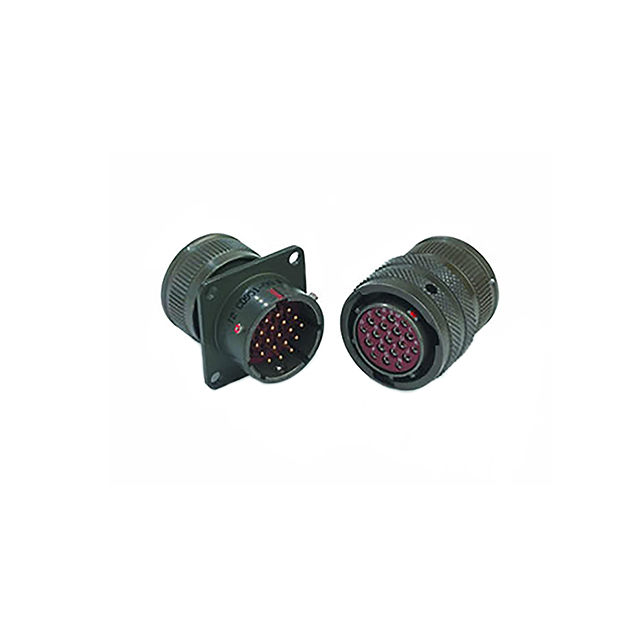

951-00 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
951-00 R 20-41 S 50
| Part | Color | Shell Material | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Shielding | Number of Positions | Mounting Feature | Fastening Type | Applications | Termination | Cable Opening | Primary Material | Orientation | Insert Material | Contact Finish - Mating | Shell Finish | Connector Type | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Voltage Rating (AC) | Voltage Rating (DC) | Current Rating | Shell Size - Insert Width | Shell Size - Insert Length | Current Rating Options | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | Olive Drab | Aluminum Alloy | Panel Mount | 150 °C | -55 °C | Unshielded | 41 | Flange | Bayonet Lock | Aerospace Marine Military | Crimp | 1.313 in | Metal | N (Normal) | Fluorosilicone | Gold | Olive Drab Cadmium | Female Sockets Receptacle | 41 | 20 | 500 VAC | 750 VDC | 7.5 A | ||||
TE Connectivity AMP Connectors | Olive Drab | Aluminum Alloy | Panel Mount | 150 °C | -55 °C | Unshielded | 12 | Flange | Bayonet Lock | Aerospace Marine Military | Crimp | 0.984 in | Metal | N (Normal) | Fluorosilicone | Gold | Olive Drab Cadmium | Male Pins Receptacle | 500 VAC | 750 VDC | 12 mm | 14 mm | 13A 7.5A | ||||
 TE Connectivity AMP Connectors | Olive Drab | Aluminum Alloy | Panel Mount | 150 °C | -55 °C | Unshielded | 6 | Flange | Bayonet Lock | Aerospace Marine Military | Crimp | 0.736 in | Metal | N (Normal) | Fluorosilicone | Gold | Olive Drab Cadmium | Female Sockets Receptacle | 500 VAC | 750 VDC | 7.5 A | 6 mm | 10 mm | Cable Clamp | |||
TE Connectivity AMP Connectors | Olive Drab | Aluminum Alloy | Panel Mount | 150 °C | -55 °C | Unshielded | 2 | Flange | Bayonet Lock | Aerospace Marine Military | Crimp | 0.61 in | Metal | N (Normal) | Fluorosilicone | Gold | Olive Drab Cadmium | Male Pins Receptacle | 500 VAC | 750 VDC | 7.5 A | 2 mm | 8 mm | ||||
TE Connectivity AMP Connectors | Olive Drab | Aluminum Alloy | Panel Mount | 150 °C | -55 °C | Unshielded | 26 | Flange | Bayonet Lock | Aerospace Marine Military | Crimp | 1.11 in | Metal | N (Normal) | Fluorosilicone | Gold | Olive Drab Cadmium | Female Sockets Receptacle | 26 | 16 S | 500 VAC | 750 VDC | 7.5 A |
