207534 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

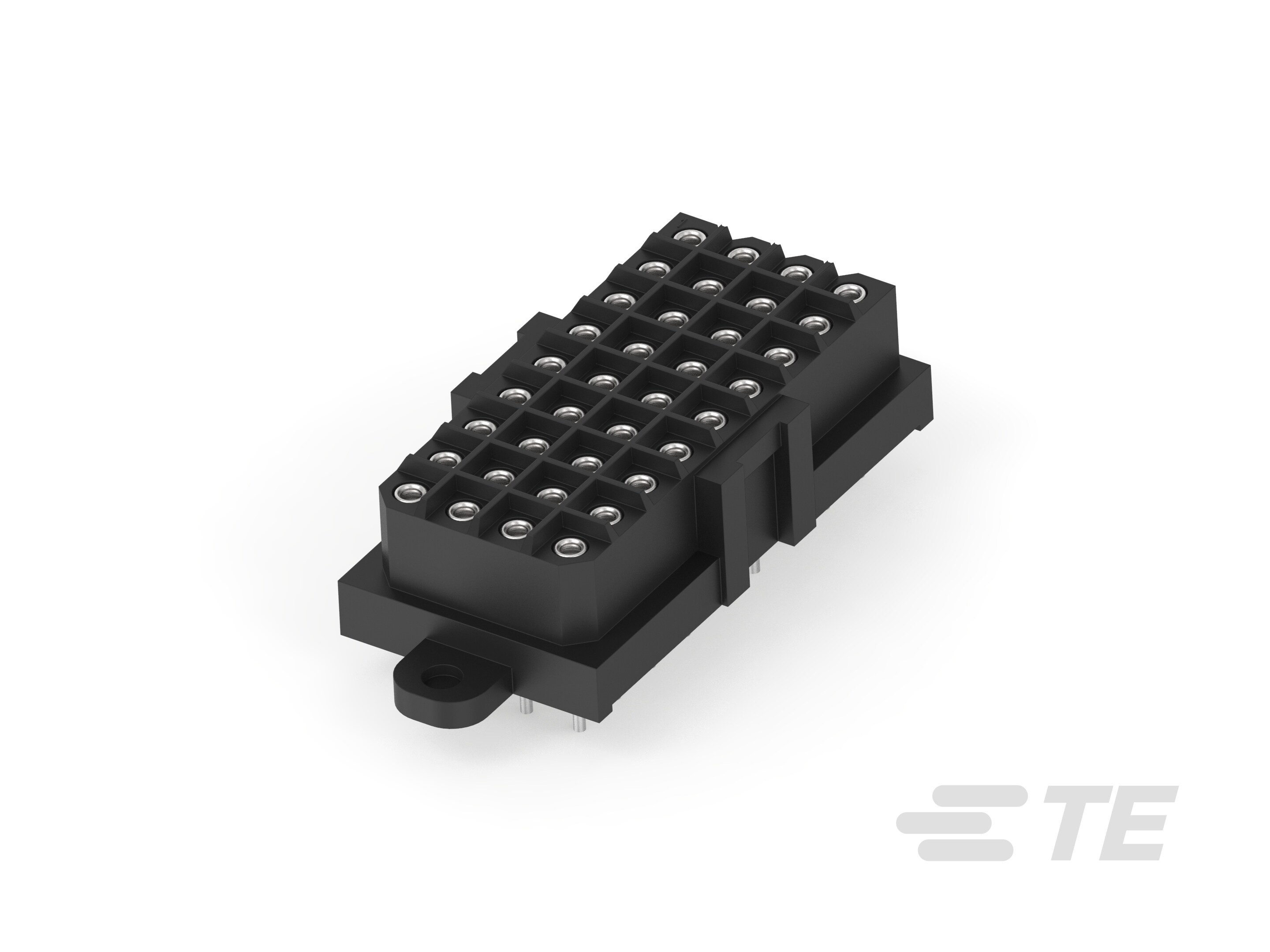

CONN HDR 36P 0.197 TIN-LEAD PCB
| Part | Fastening Type | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Height | Pitch - Mating | Style | Connector Type | Current Rating | Mounting Type | Insulation Color | Contact Type | Number of Positions Loaded | Contact Finish - Mating | Number of Rows | Contact Finish - Post | Material Flammability Rating | Termination | Features | Voltage Rating | Row Spacing - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Length - Post | Contact Shape | Contact Finish Thickness - Post | Insulation Material | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Latch Holder | -55 °C | 130 °C | 0.565 in | 0.197 in | Board Cable/Wire | Header | 7.5 A | Through Hole | Black Red | Female Socket | All | Tin-Lead | 4 | Tin | UL94 V-0 | Solder | Mounting Flange | 600 V | 0.197 in | 150 µin | 36 | 0.181 in | Circular | 150 µin | Nylon Polyamide (PA) | Phosphor Bronze |
 TE Connectivity AMP Connectors | Latch Holder | -55 °C | 130 °C | 0.565 in | 0.197 in | Board Cable/Wire | Header | 7.5 A | Through Hole | Black Red | Female Socket | All | Tin-Lead | 4 | Tin-Lead | UL94 V-0 | Solder | Mounting Flange | 600 V | 0.197 in | 150 µin | 36 | 0.181 in | Circular | 150 µin | Nylon Polyamide (PA) | Phosphor Bronze |
