52463 Series

Catalog

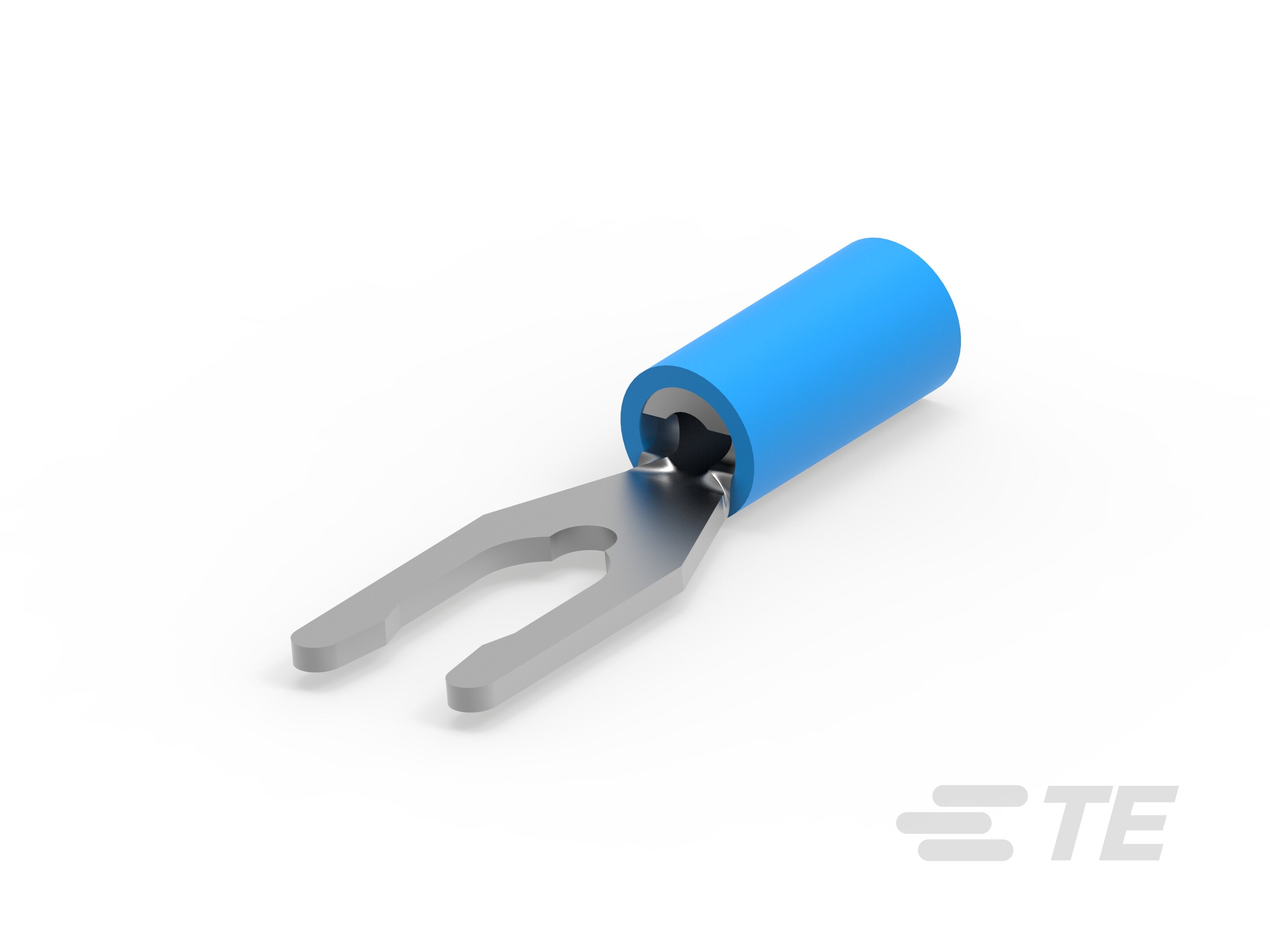

FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 16 AWG, 14 AWG, 2 MM², M3.5, #6

Part	Contact Finish	Stud/Tab Size	Contact Material	Insulation	Mounting Type	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Termination	Terminal Type	Width - Outer Edges	Color	Features	Length - Ring Center to Termination	Tongue Inside Opening	Material - Insulation	Length - Termination	Insulation Diameter (Max)	Insulation Diameter (Min)
TE Connectivity AMP Connectors 52463-1	Tin	6 Stud	Phosphor Bronze	Insulated	Free Hanging (In-Line)	0.945 in	16 AWG	14 AWG	Crimp	Snap Spring	0.25 in	Blue	Serrated Termination	0.238 in	0.14 in	Poly-Vinyl Chloride PVC	0.426 in	0.193 in	0.118 in
