C091 11H007 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

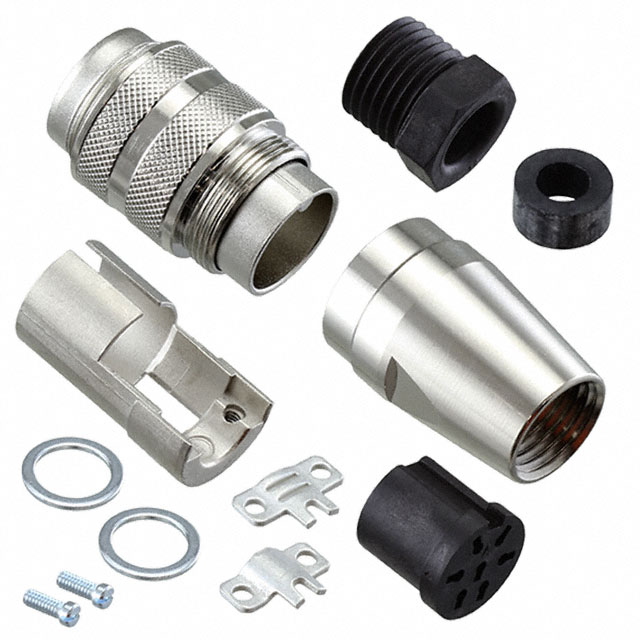

CONN PLUG HSNG MALE 7POS INLINE
| Part | Shell Material | Includes | Includes Total Count | Shell Size - Insert | Shell Finish | Housing Color | Contact Size | Type | Note | Insert Material | Fastening Type | Material Flammability Rating | Ingress Protection Description | Ingress Protection IP Rating | Mounting Type | Orientation | Operating Temperature (Max) | Operating Temperature (Min) | Shielding | Features | Number of Positions | Contact Shape | Connector Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Die Cast | Backshell Cable Nut Connector Gasket pc Cable Clamp Screws Washers | 10 pcs | M16-7 | Nickel | Silver | 1.5 mm | For Male Pins | Contacts Not Included | Thermoplastic | Threaded | UL94 V-0 | Dust Tight Water Resistant Waterproof | IP65 IP67 IP69K | Free Hanging (In-Line) | Keyed | 100 °C | -40 °C | Shielded | Backshell Cable Clamp Coupling Nut | 7 | Circular | Plug Housing | Crimp |
