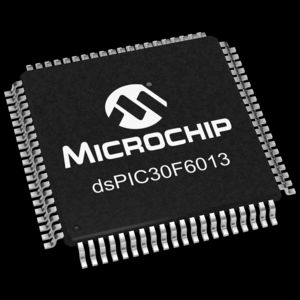

MCU 16-BIT DSPIC30 DSPIC RISC 132KB FLASH 3.3V/5V 80-PIN TQFP TRAY

Part	Type	Package Width	Package Name	Package Length	Speed	Package / Case	Connectivity	Program Memory Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Mounting Type	Program Memory Size	Program Memory Depth	Program Memory Width	EEPROM Size (Depth)	EEPROM Size (Width)	A/D Resolution (bits)	A/D Channels	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	Peripherals	Number of I/O	RAM Size Depth	RAM Size Width	Oscillator Type
Microchip Technology DSPIC30F6013-20I/PF	Digital Signal Controllers	14 mm	80-TQFP	14 mm	20 MIPS	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	85 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013A-20E/PF	Digital Signal Controllers	14 mm	80-TQFP	14 mm	20 MIPS	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	125 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013-30I/PF		14 mm	80-TQFP	14 mm	30 MIPs	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	85 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013AT-20E/PF	Digital Signal Controllers	14 mm	80-TQFP	14 mm	20 MIPS	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	125 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013AT-30I/PT	Digital Signal Controllers	12 mm	80-TQFP	12 mm	30 MIPs	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	85 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013A-20E/PT	Digital Signal Controllers	12 mm	80-TQFP	12 mm	20 MIPS	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	125 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013T-30I/PF	Digital Signal Controllers	14 mm	80-TQFP	14 mm	30 MIPs	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	85 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013A-20I/PT	Digital Signal Controllers	12 mm	80-TQFP	12 mm	20 MIPS	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	85 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013AT-30I/PF	Digital Signal Controllers	14 mm	80-TQFP	14 mm	30 MIPs	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	85 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
Microchip Technology DSPIC30F6013A-30I/PF	Digital Signal Controllers	14 mm	80-TQFP	14 mm	30 MIPs	80-TQFP	CANbus I2C SPI UART USART	FLASH	2.5 V	5.5 V	Surface Mount	132 KB	44 K	24	2 K	8 bit	12 bit	16 count	dsPIC	85 °C	-40 °C	16 Bit	Brown-out Detect LVD POR PWM Reset WDT	68	6 K	8 bit	Internal
