8T49N205I Series

Catalog

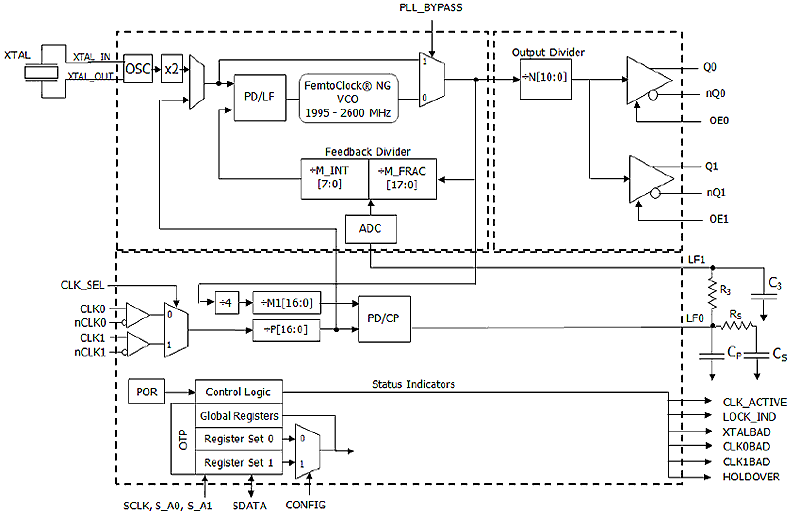

FEMTOCLOCK NG UNIVERSAL FREQUENCYTRANSLATOR WITH PHASE BUILD-OUT

Part	Number of Circuits	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Mounting Type	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 2 Maximum)	Differential Input	Differential Output	Package Width	Package Name	Package Length	PLL	Multiplier	Divider	Input	Frequency - Max	Output Ratio	Input Ratio	Output	Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Renesas Electronics Corporation 8T49N205A-000NLGI8	1	85 °C	-40 °C	40-VFQFN Exposed Pad	Surface Mount	3.135 V	2.625 V	2.375 V	3.465 V	Yes	Yes	6 mm	40-VFQFPN	6 mm	Yes with Bypass	No	Yes	Crystal HCSL LVDS LVHSTL LVPECL	1.3 GHz	2	3	LVDS LVPECL	Frequency Translator
Renesas Electronics Corporation 8T49N205A-999NLGI8
Renesas Electronics Corporation 8T49N205A-999NLGI	1	85 °C	-40 °C	40-VFQFN Exposed Pad	Surface Mount					Yes	Yes	6 mm	40-VFQFPN	6 mm	Yes with Bypass	No	Yes	Crystal HCSL LVDS LVHSTL LVPECL	1.3 GHz	2	2	LVDS LVPECL	Frequency Translator	2.375 V	3.465 V
Renesas Electronics Corporation 8T49N205A-000NLGI	1	85 °C	-40 °C	40-VFQFN Exposed Pad	Surface Mount	3.135 V	2.625 V	2.375 V	3.465 V	Yes	Yes	6 mm	40-VFQFPN	6 mm	Yes with Bypass	No	Yes	Crystal HCSL LVDS LVHSTL LVPECL	1.3 GHz	2	3	LVDS LVPECL	Frequency Translator
